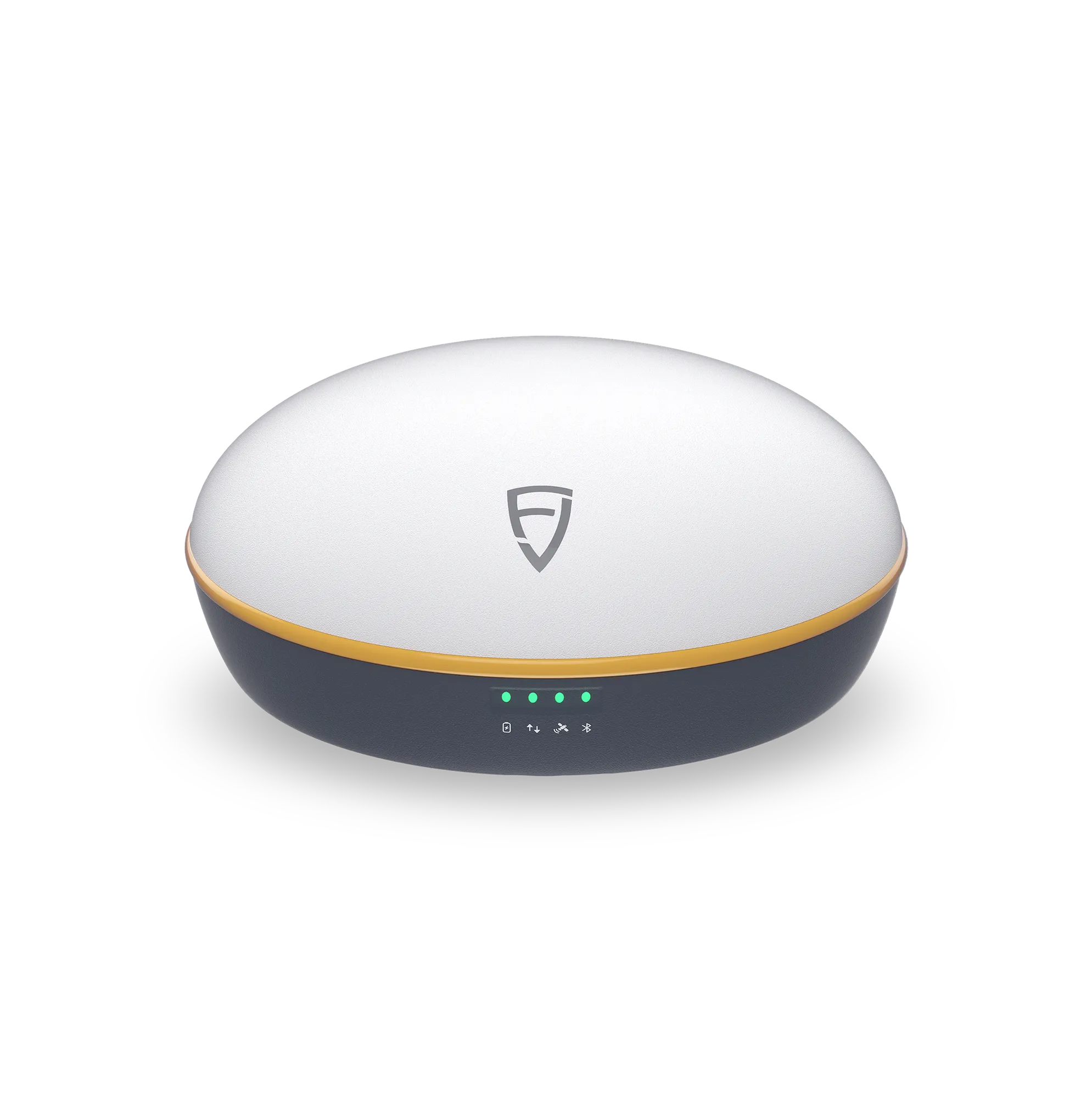

FJD V1 Base Station

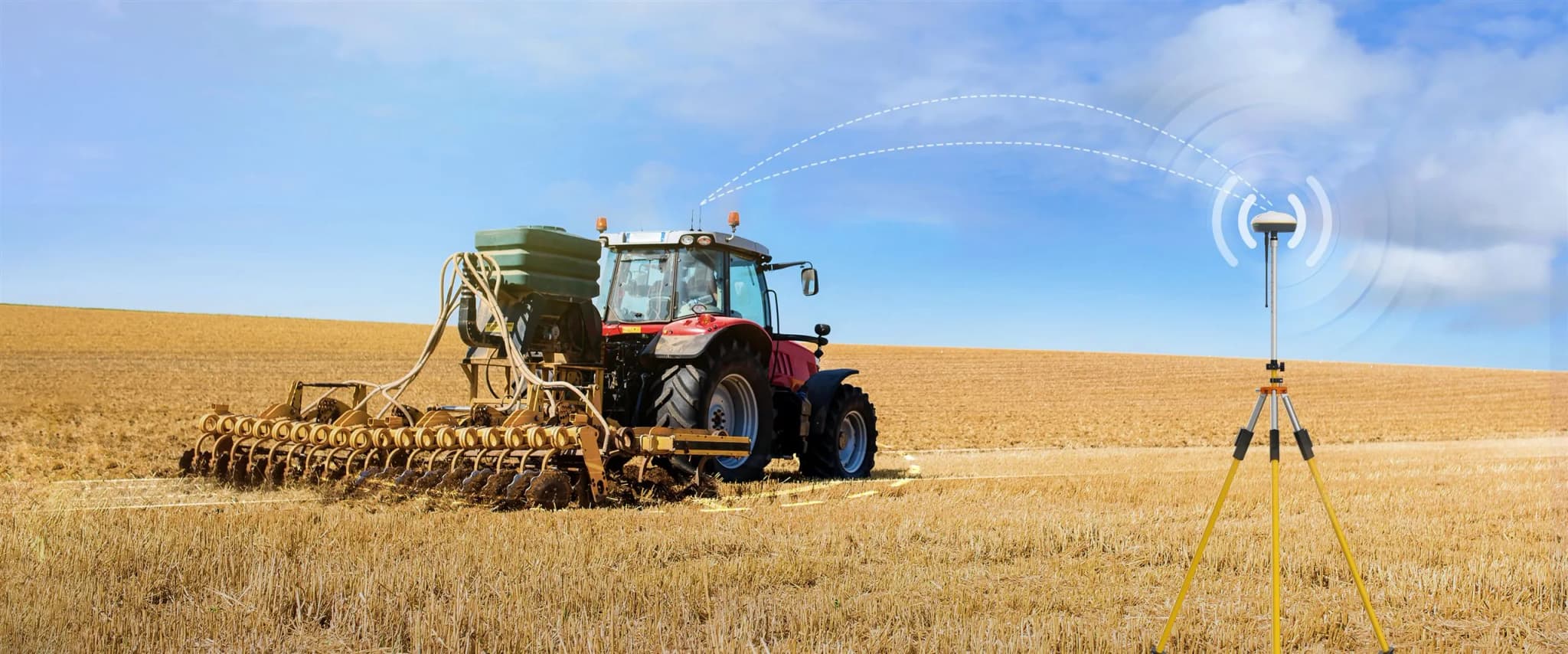

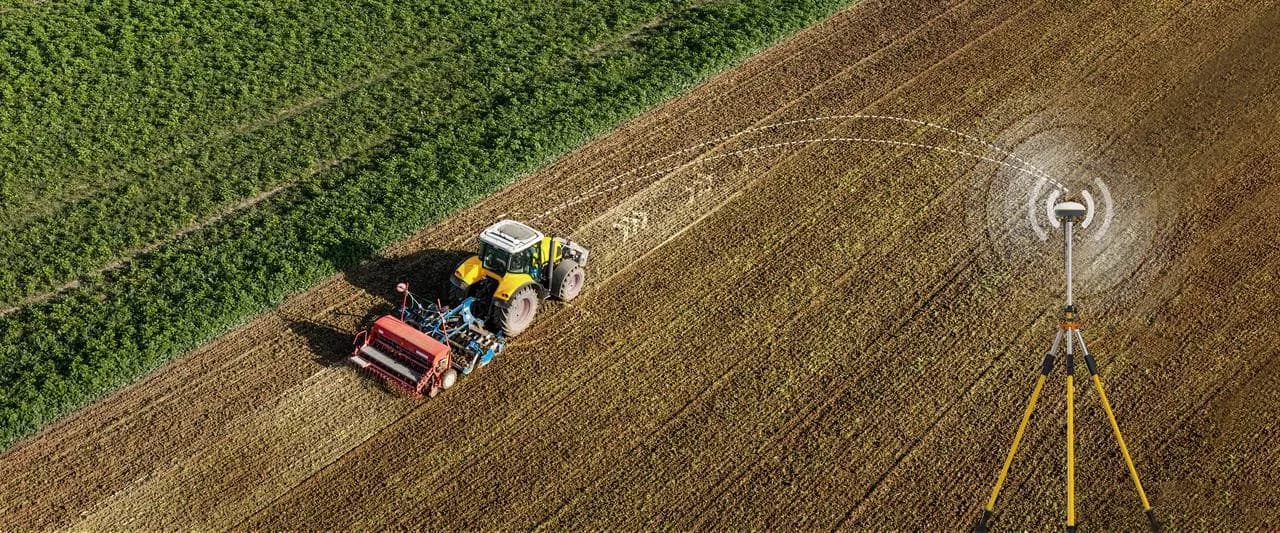

Make navigation more accurate. The FJD V1 Base Station is a lightweight GNSS RTK receiver supporting all constellations and frequencies. With strong anti-interference capability it delivers fast, accurate correction signals even in harsh environments, and at just 1 kg it moves between paddocks, jobs, and vehicles with you. The included bracket kit adds extra stability and accuracy for agricultural operations.

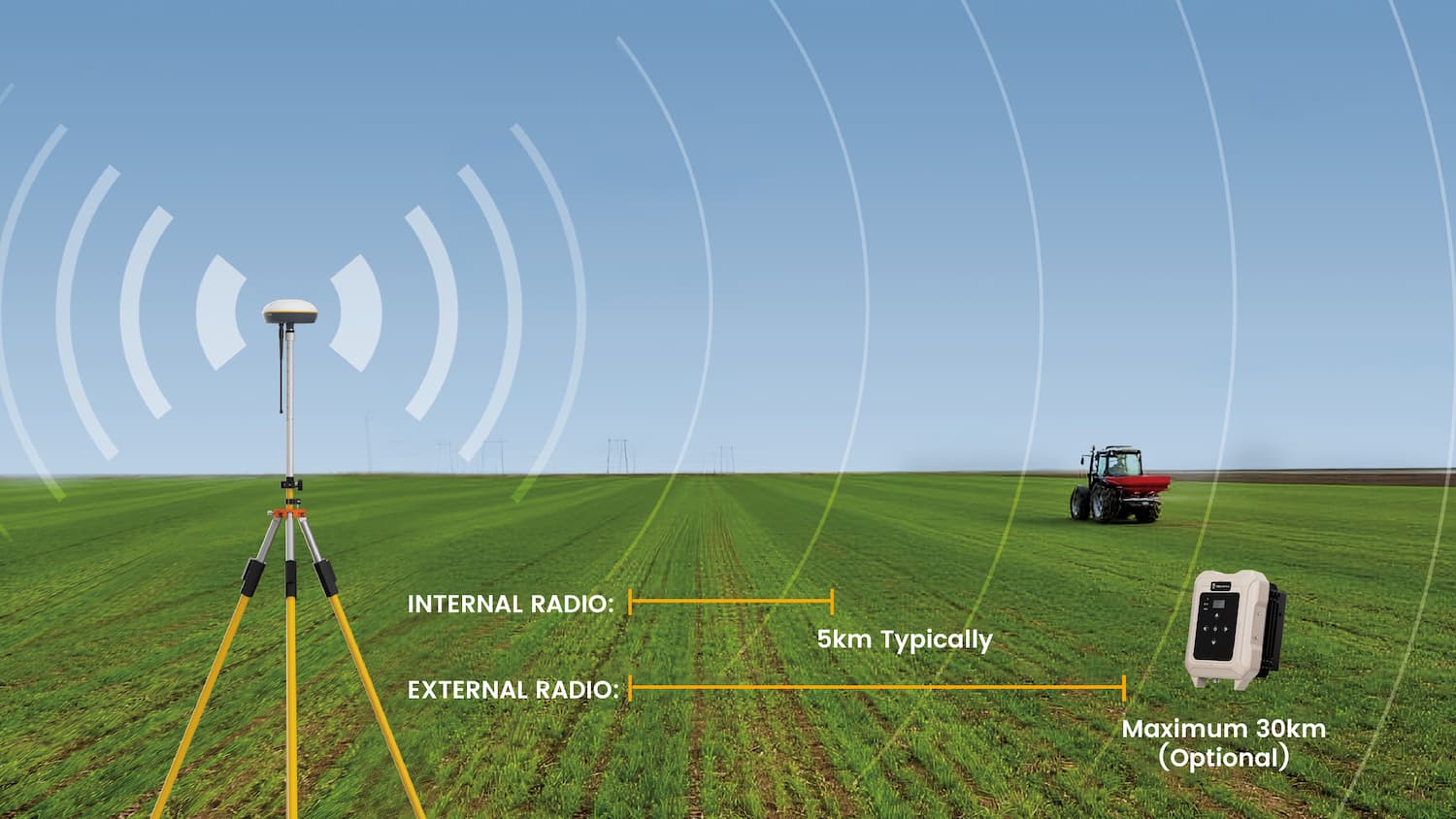

Wide work range

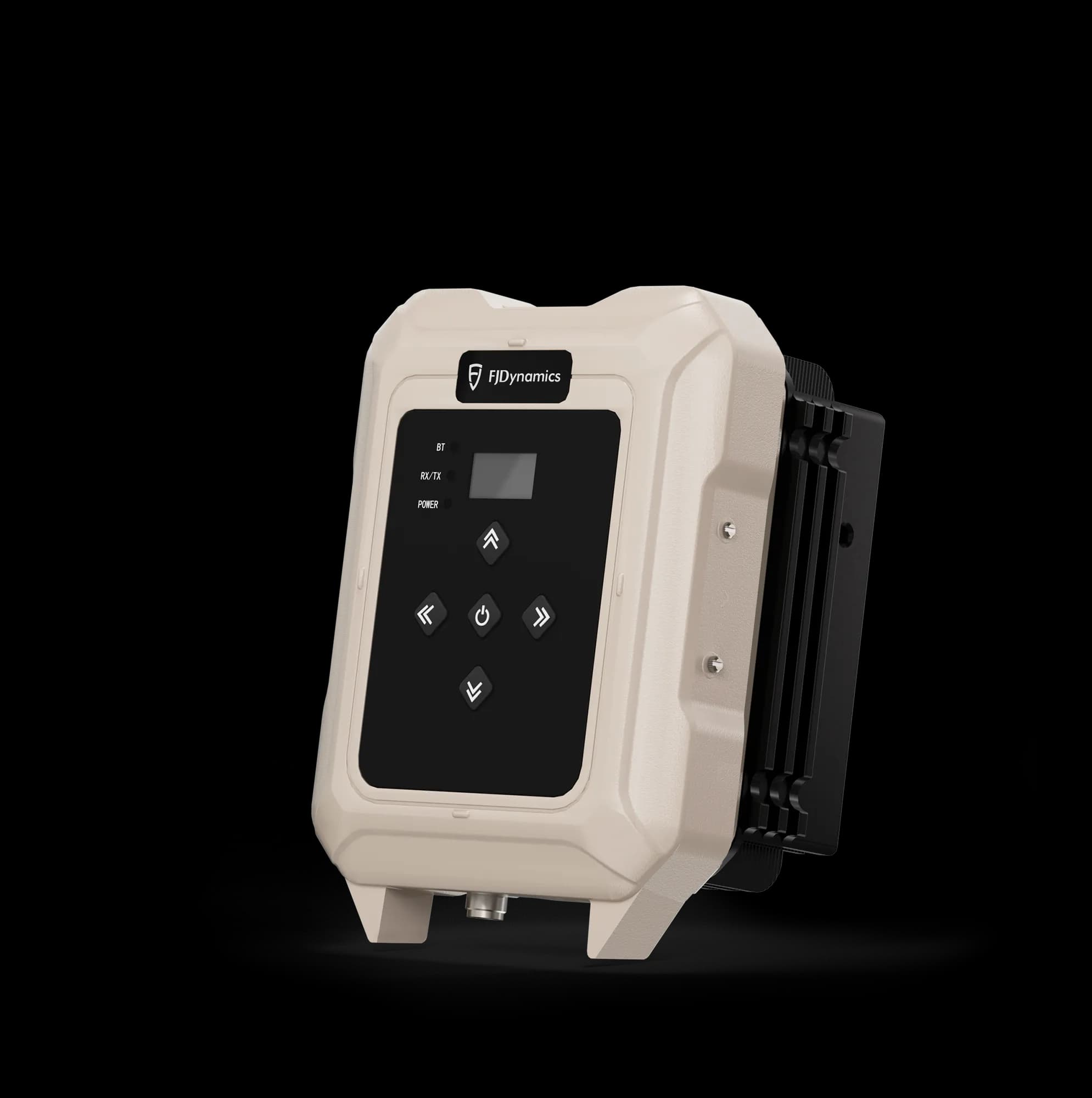

The built-in radio supports TRIMTALK, TRIMMARK3, TT450S, TRANSEOT, and Satel 3AS 4FSK protocols with a working range of 5 km under normal conditions (3-8 km depending on interference). Pair it with an FJD external radio and range stretches up to 30 km in optimal conditions.

Long battery life

Up to 10 hours in base station mode from the 6500 mAh battery, with USB PD 30 W fast charging. Run it on an external power bank or utility power for continuous operation.

Lightweight and durable

Built from magnesium alloy, the V1 weighs about 1 kg, carries an IP67 rating, and has passed a 1.5-metre drop test, so it handles dust, weather, and the ute tray.

Effortless setup with the app

A dedicated Android and iOS app walks you through rapid base station configuration with a clean, streamlined interface.

In the box

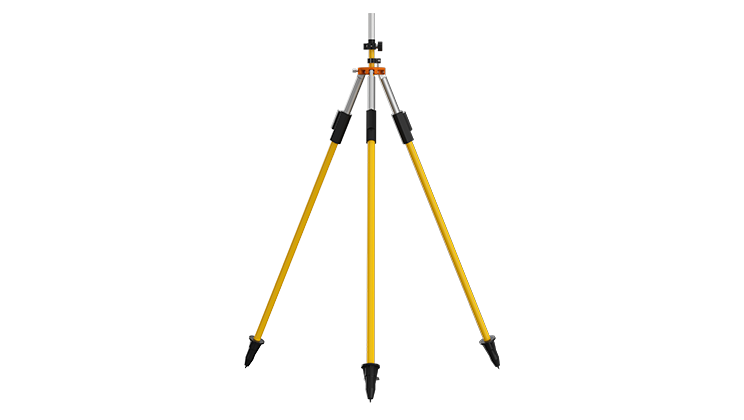

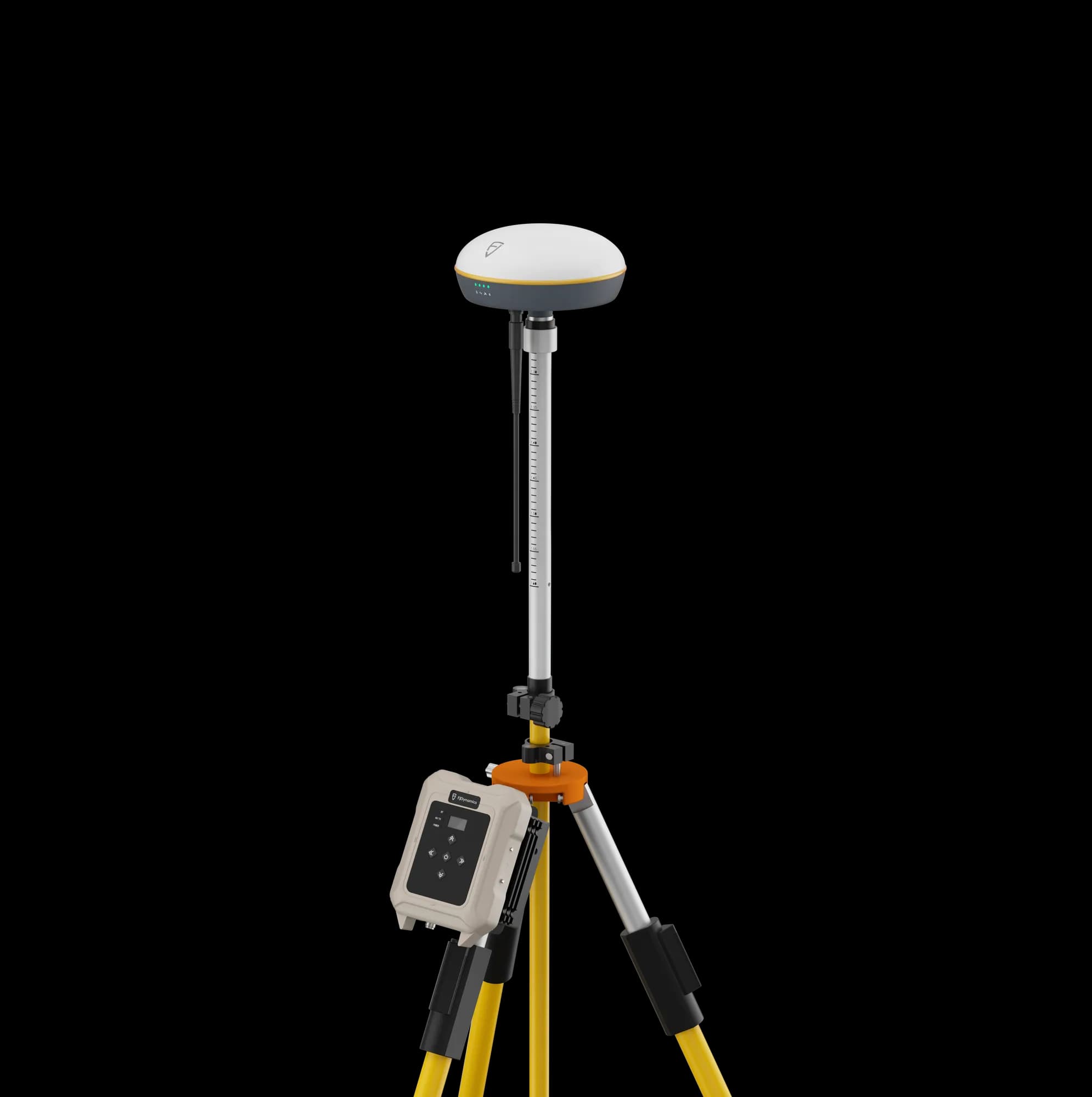

The V1 Base Station includes the V1 GNSS receiver and a tripod kit. Add an FJD external radio and PONY 500 power station for wider range and longer runtime.

Specifications

RTK accuracy	8 mm + 1 ppm horizontal, 15 mm + 1 ppm vertical (RMS)
Channels	965, full-constellation GPS, BDS, GLONASS, Galileo, QZSS, SBAS
Radio range	5 km typical (3-8 km), up to 30 km with external radio
Battery	6500 mAh, 10 hours typical, USB PD 30 W fast charge, 9-32 V DC input
Build	1.07 kg, 162 x 86 mm, magnesium alloy, IP67, 1.5 m drop tested
Operating temperature	-30°C to +60°C
