T100 Essential Parts Bundle

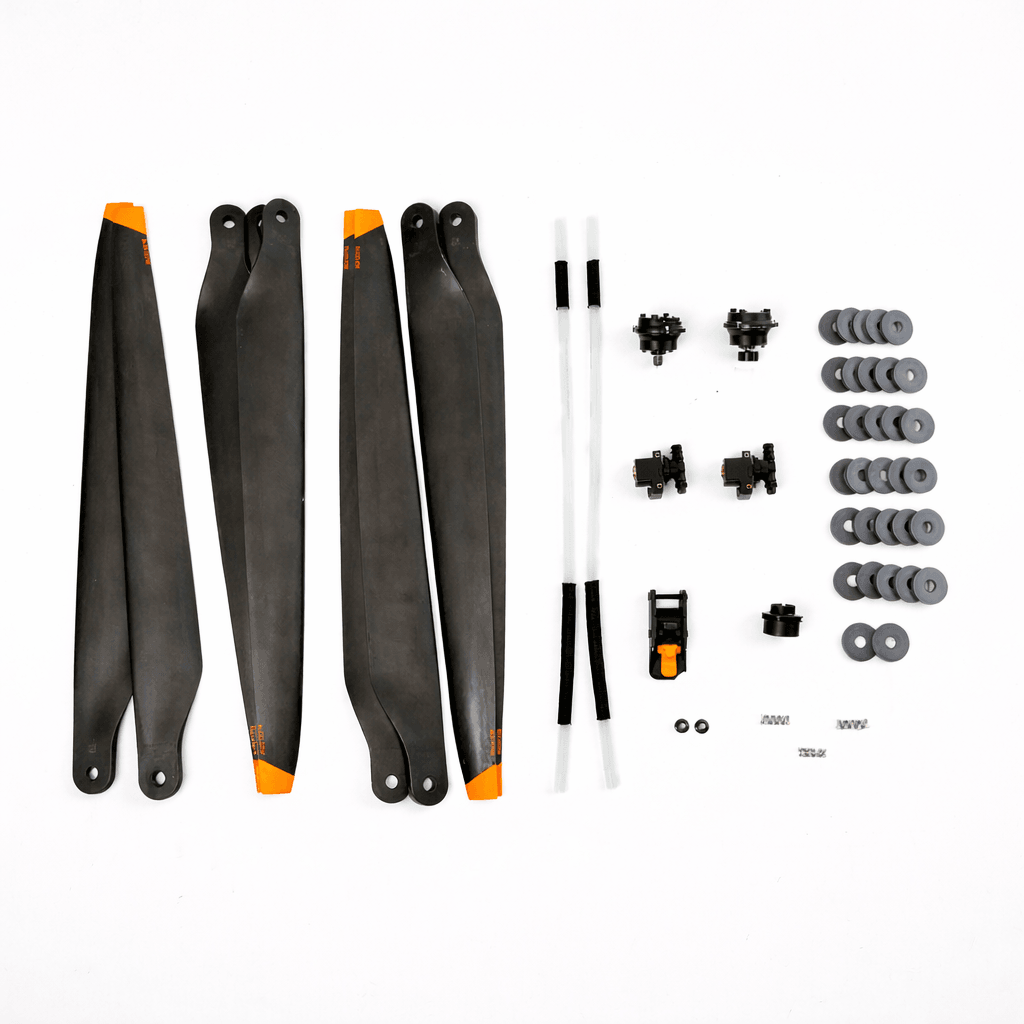

For the DJI Agras T100, this bundle groups the day-to-day spares into one order: a full propeller set with gaskets, pump and sprinkler parts, two solenoid valves, two aircraft arm hoses, an aircraft arm buckle module and a supply of screws and nuts.

On the T100 spray lance, the centrifugal motor spins the sprinkler that breaks liquid into droplets, and the solenoid valve opens and shuts the flow feeding it. The pump motor and impeller module are callouts 3 and 12 on the impeller pump diagram; the T100 carries two of these magnetic-drive pumps. The M80 nuts are the propeller nuts, callout 1 on the propeller diagram. The same sheet prints the gasket (callout 3) as YC.JG.ZS006404, which EE Group supplies as the ZS008218 gasket listed here.

Look over the propellers before each day's flying and swap any blade with a chip, crack or split edge. Check the gaskets whenever a propeller is off its clamp, replacing any that are flattened or torn. If a sprinkler keeps dripping once spraying stops, check its solenoid valve first.
