T100 Complete Parts Bundle
Shipping: Oversize Parcel, $67.50 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

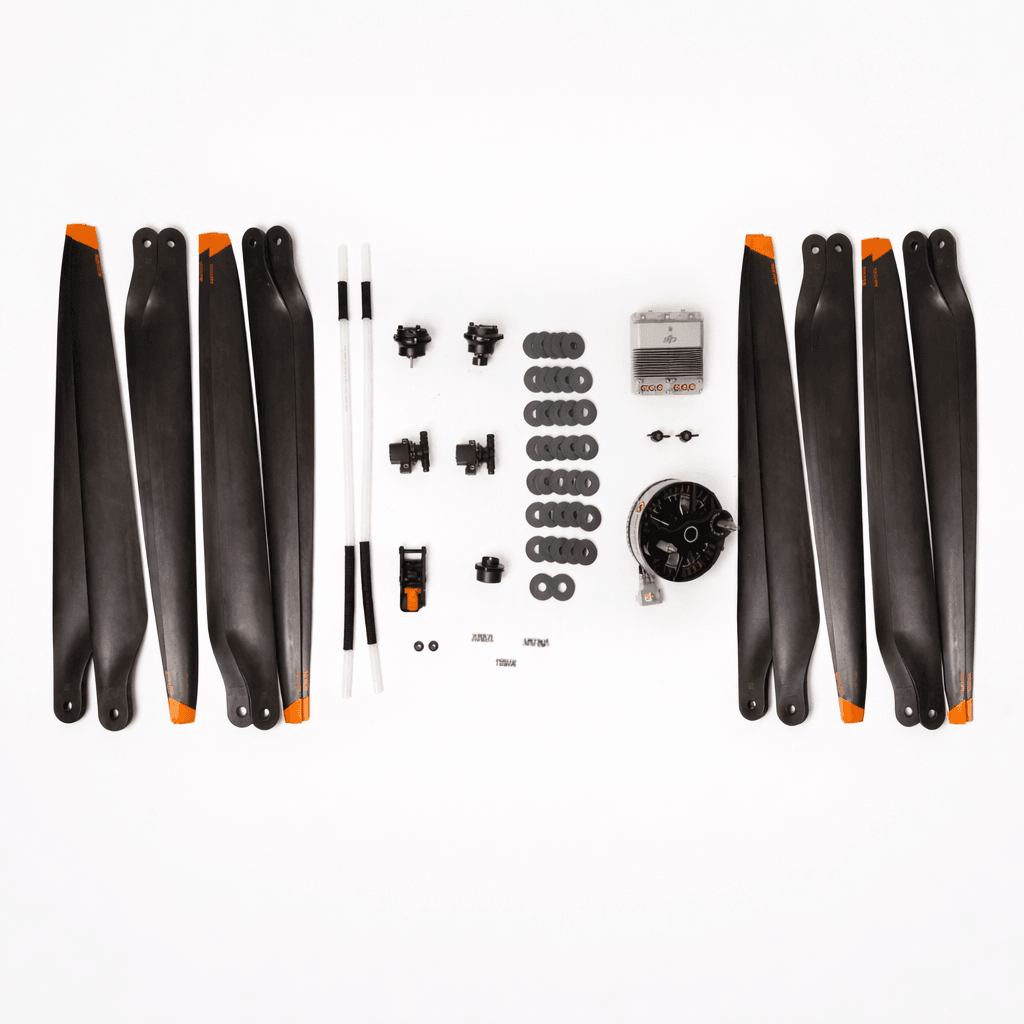

The larger of our two DJI Agras T100 spares bundles: everything in the Essential kit plus a 15516 propulsion motor, an ESC module and two thumb nuts, so a motor or speed-controller fault on an arm can be handled from your own spares.
| Fits | DJI Agras T100 |
| Propulsion |
|
| Spray system |
|
| Arm |
|
| Screws |
|
The motor is callout 7 on the T100 motor diagram, and the ESC module is callout 1 on the M1/M3 small arm, the same sheet that shows the aircraft arm buckle module as callout 10. The thumb nuts appear on the flowmeter and spray lance diagrams. The gasket is callout 3 on the propeller diagram, printed as YC.JG.ZS006404; EE Group supplies it as ZS008218.
Before condemning a motor or ESC, read the error the remote controller reports for that arm and look over the plugs and cable between the two, as a damaged lead can mimic a failed part. Match the code on each old part to its replacement before fitting. Without the motor, ESC and thumb nuts, the rest of this list is sold as the T100 Essential Parts Bundle.
