DJI
Spray Lance Support Rod (T100) YC.JG.QX004534
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

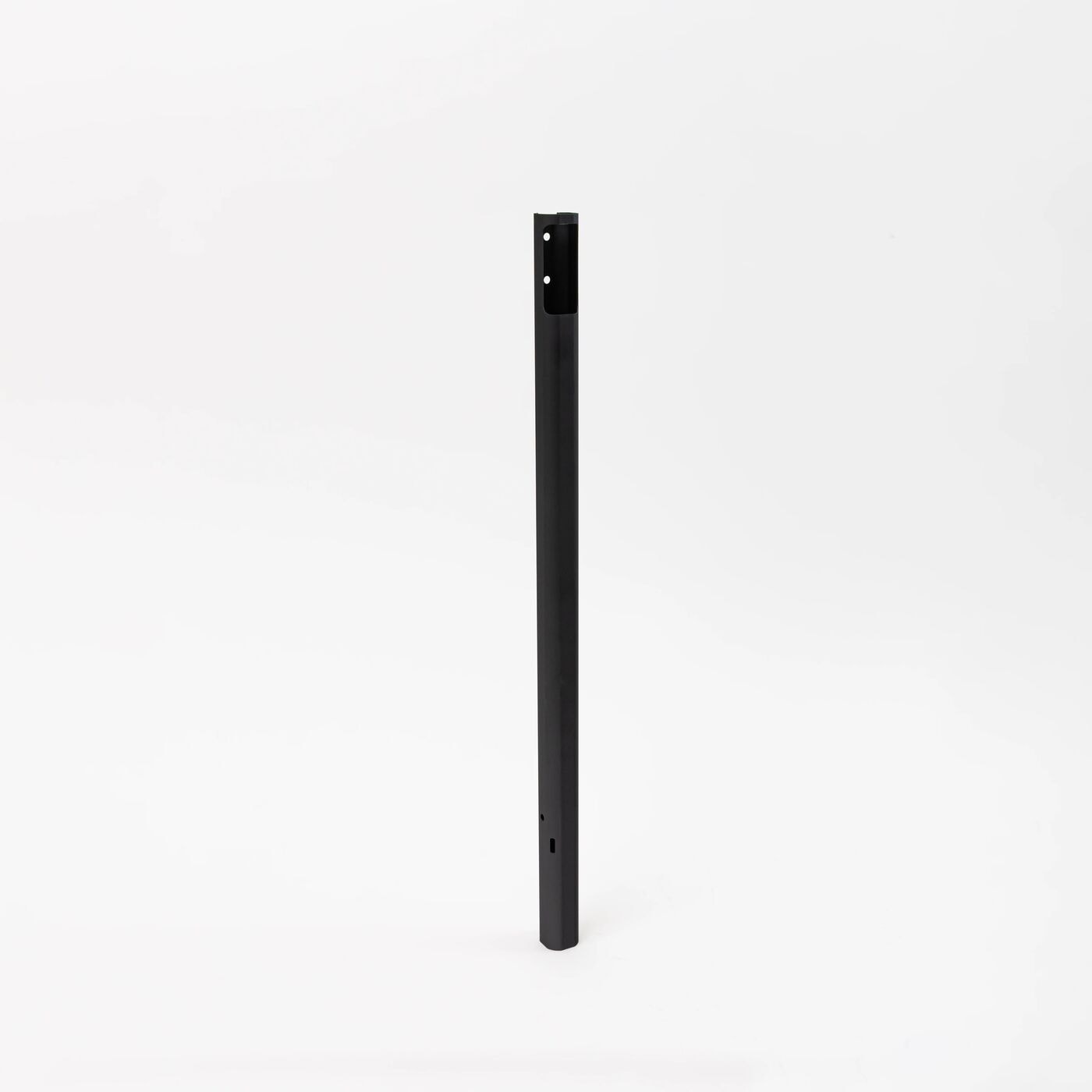

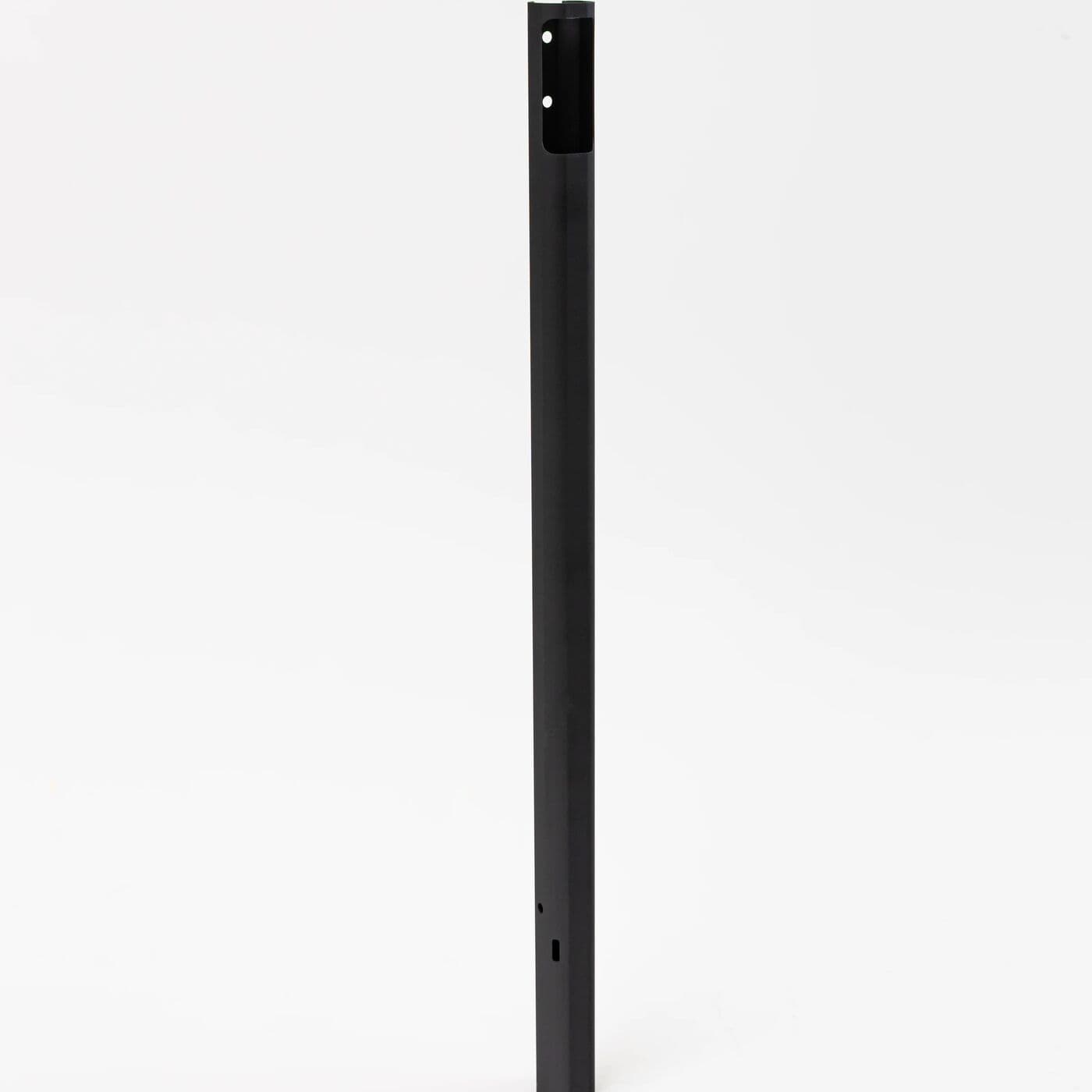

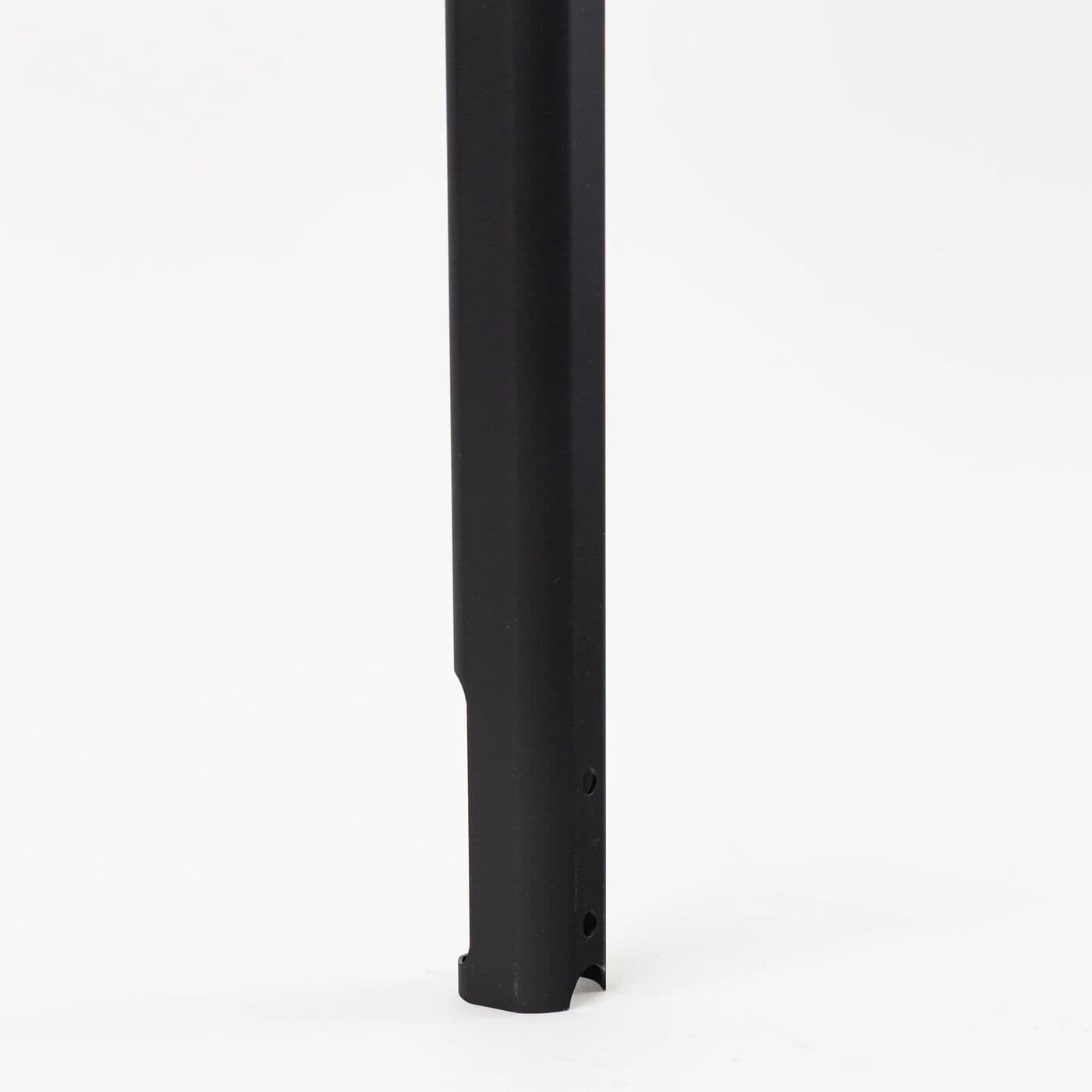

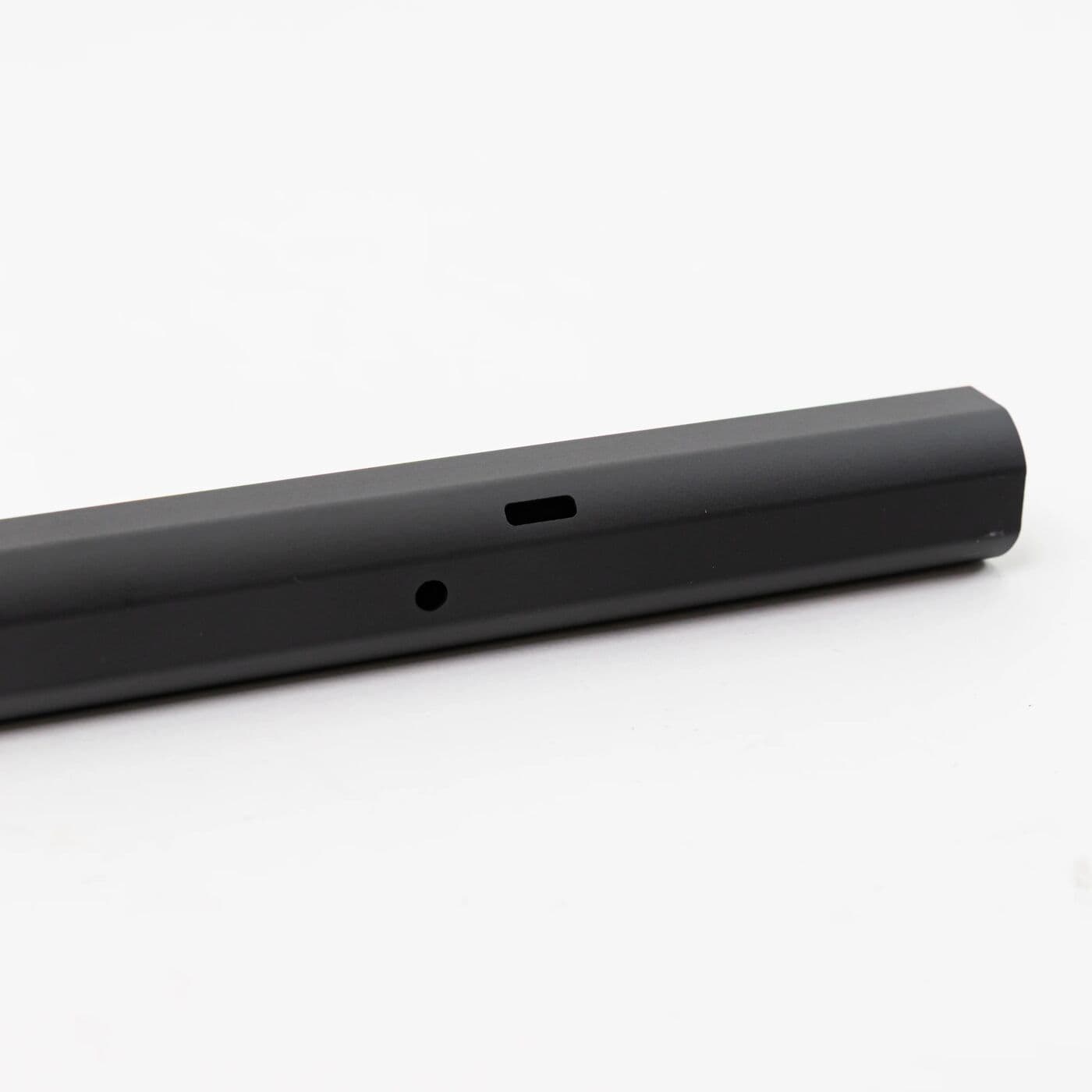

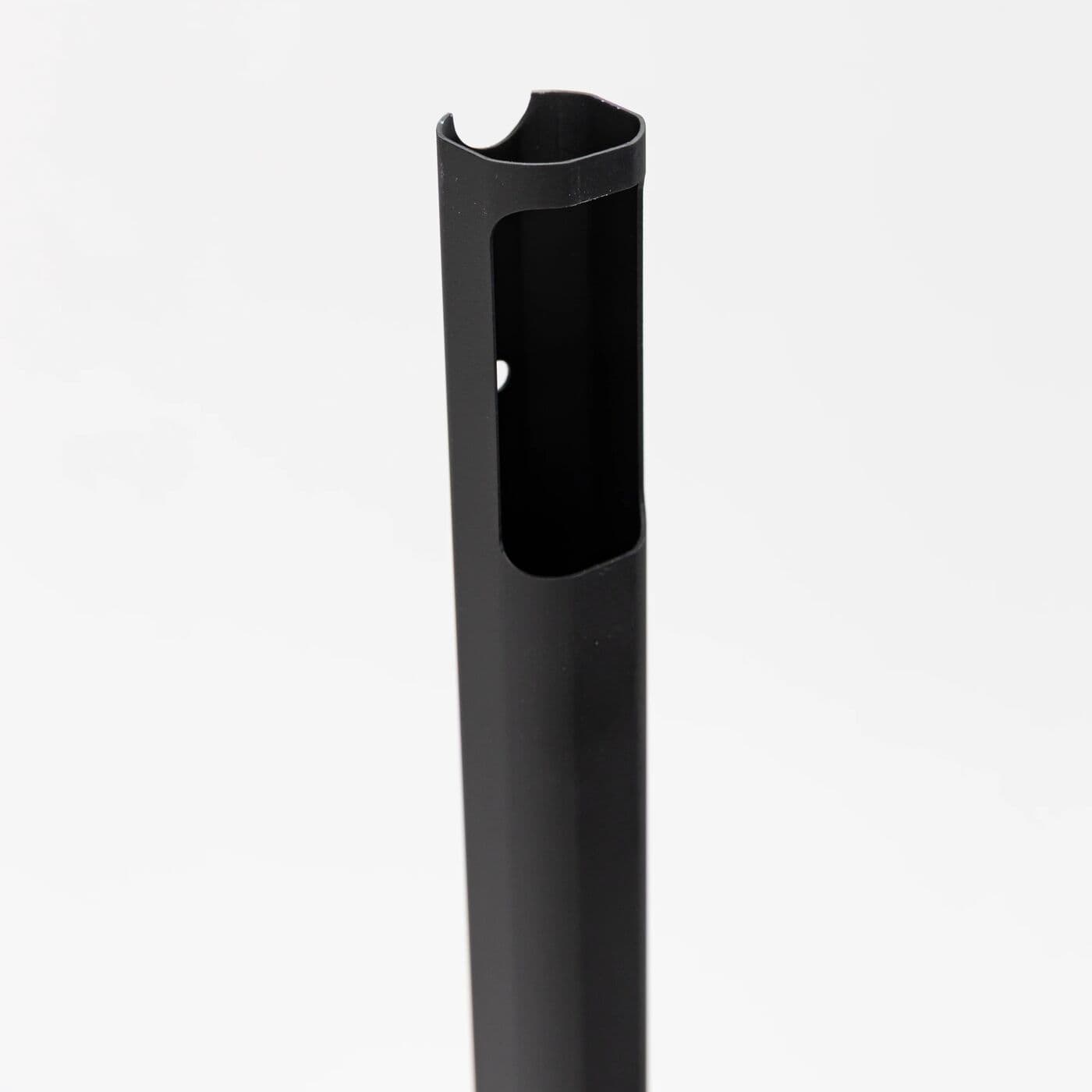

Support rod for the spray lance on the DJI Agras T100, drawn at callout 25 on DJI's spray lance sheet together with two thumb nuts and the aircraft arm hose.
| Part number | YC.JG.QX004534 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray lance, callout 25 |
Check it after any landing where a lance touched down first or dragged through standing crop. A rod that has bent or cracked should be swapped rather than straightened, since it can leave the lance hanging out of line. If the lance took a hard knock, look over the aircraft arm hose (callout 24) as well.
Both thumb nuts on the sheet (callouts 23 and 26) share one code, so the thumb nut YC.JG.ZS006171 covers either position if a nut has stripped or split. The mist kit is drawn with its own mist sprinkler support rod, YC.JG.QX004849, so confirm which set-up the aircraft is running before ordering.
