DJI
Rear Frame Aluminum Tube (T100) BC.AG.SS001106
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

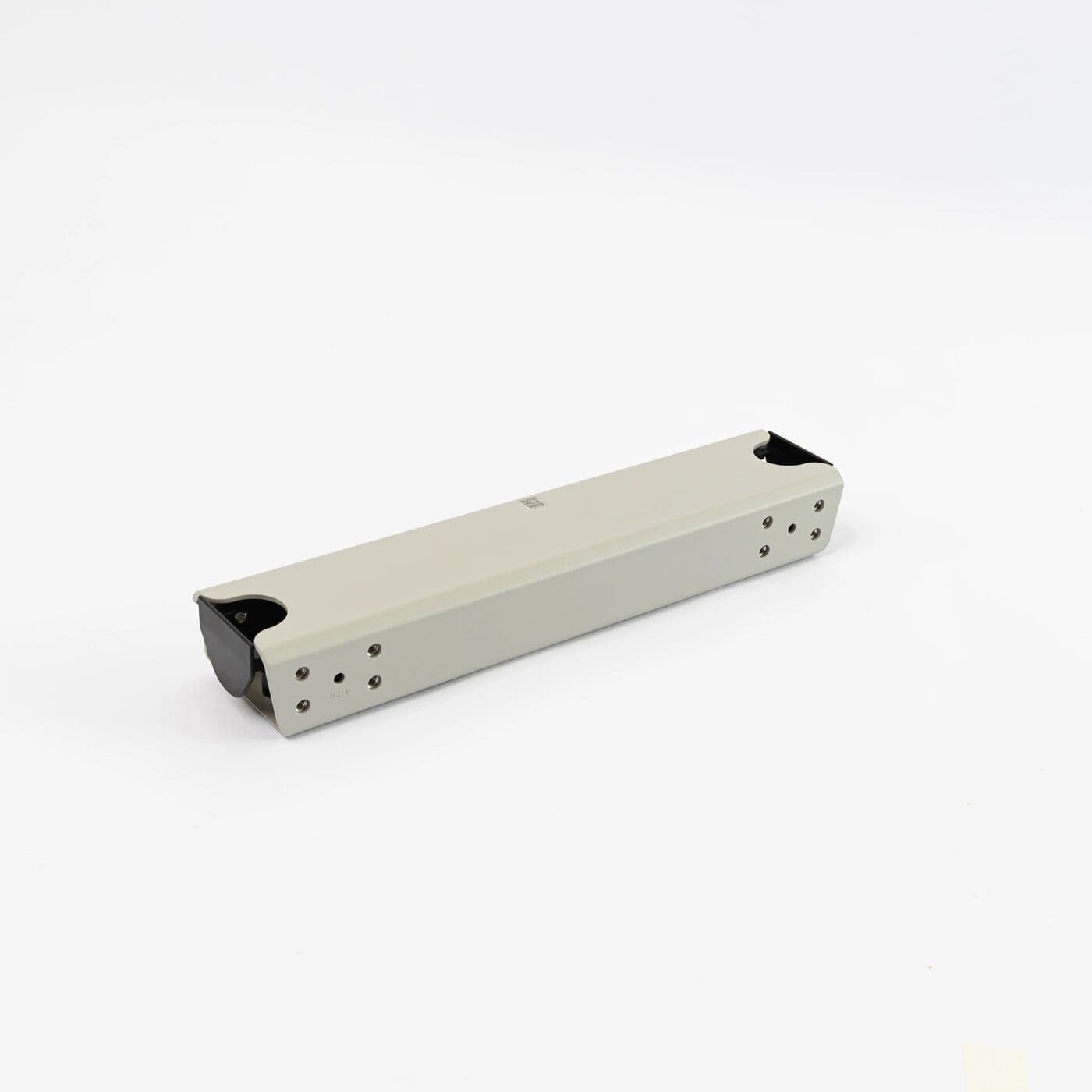

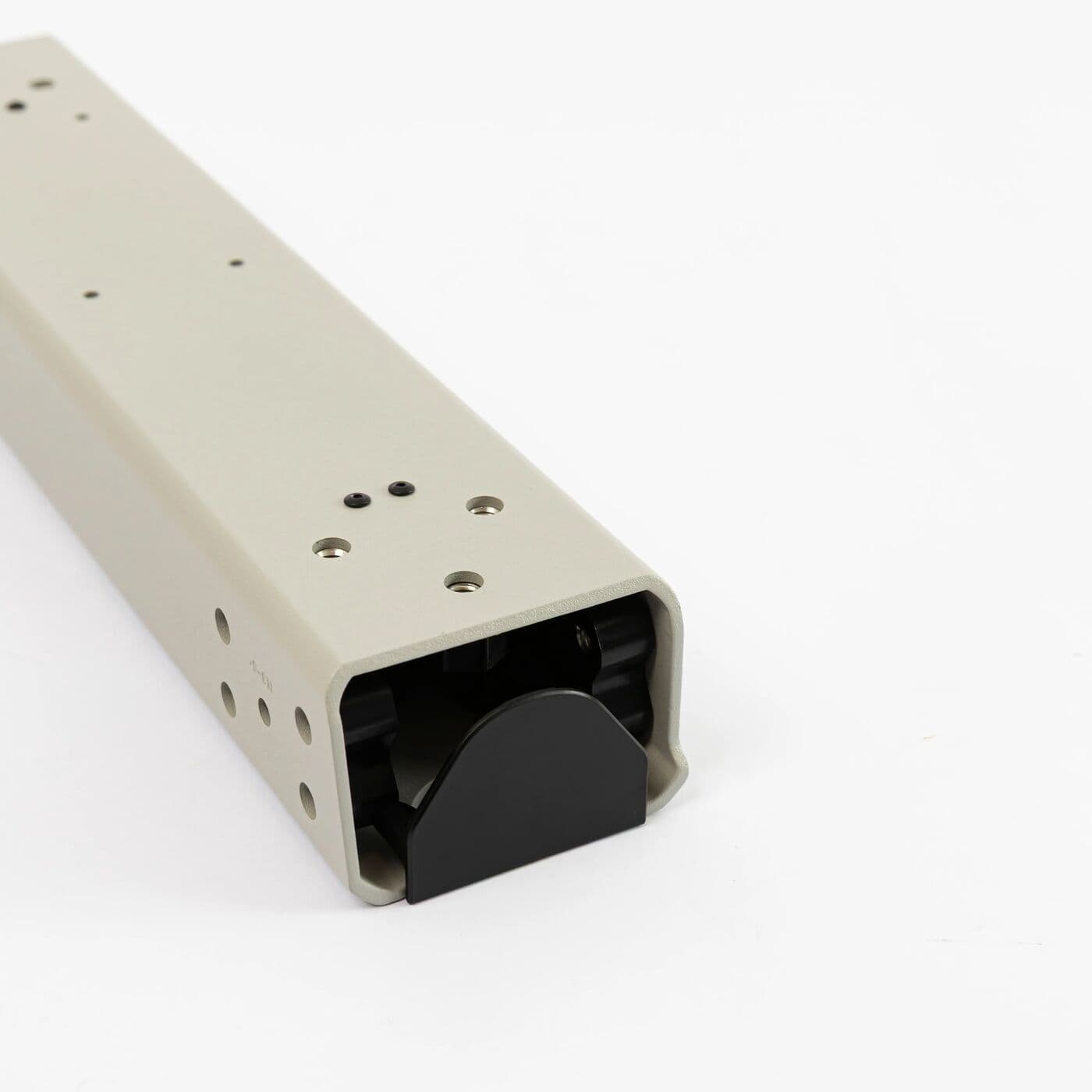

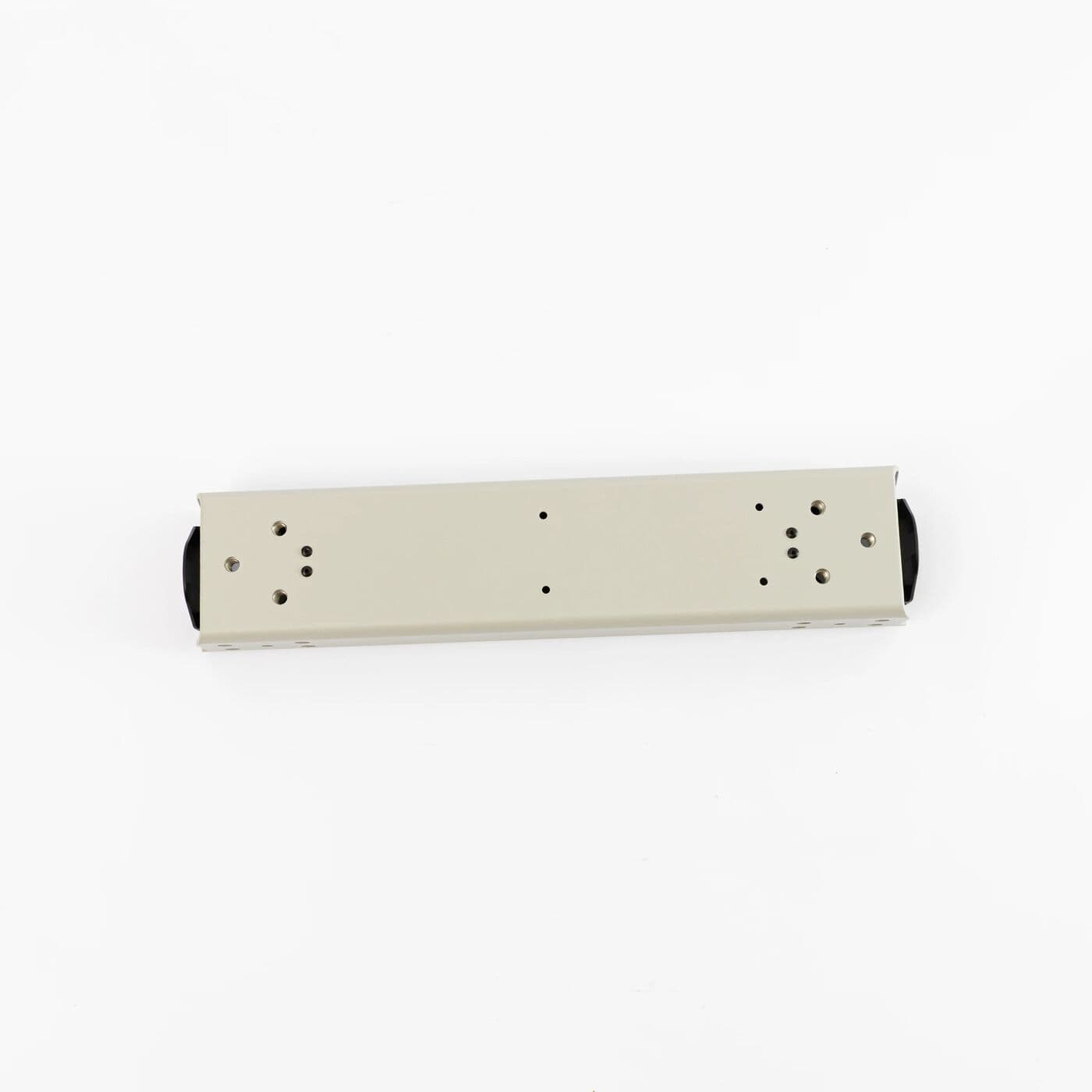

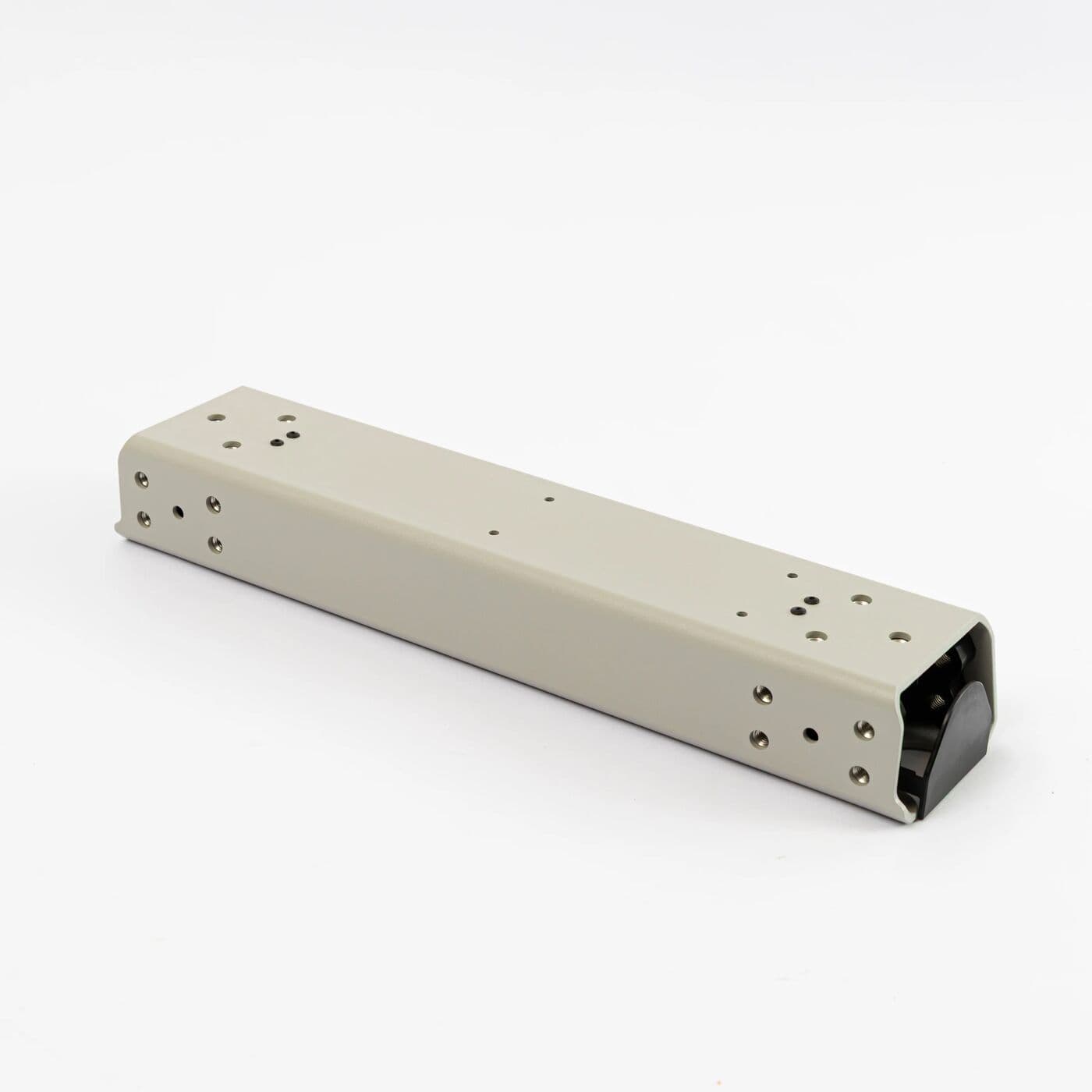

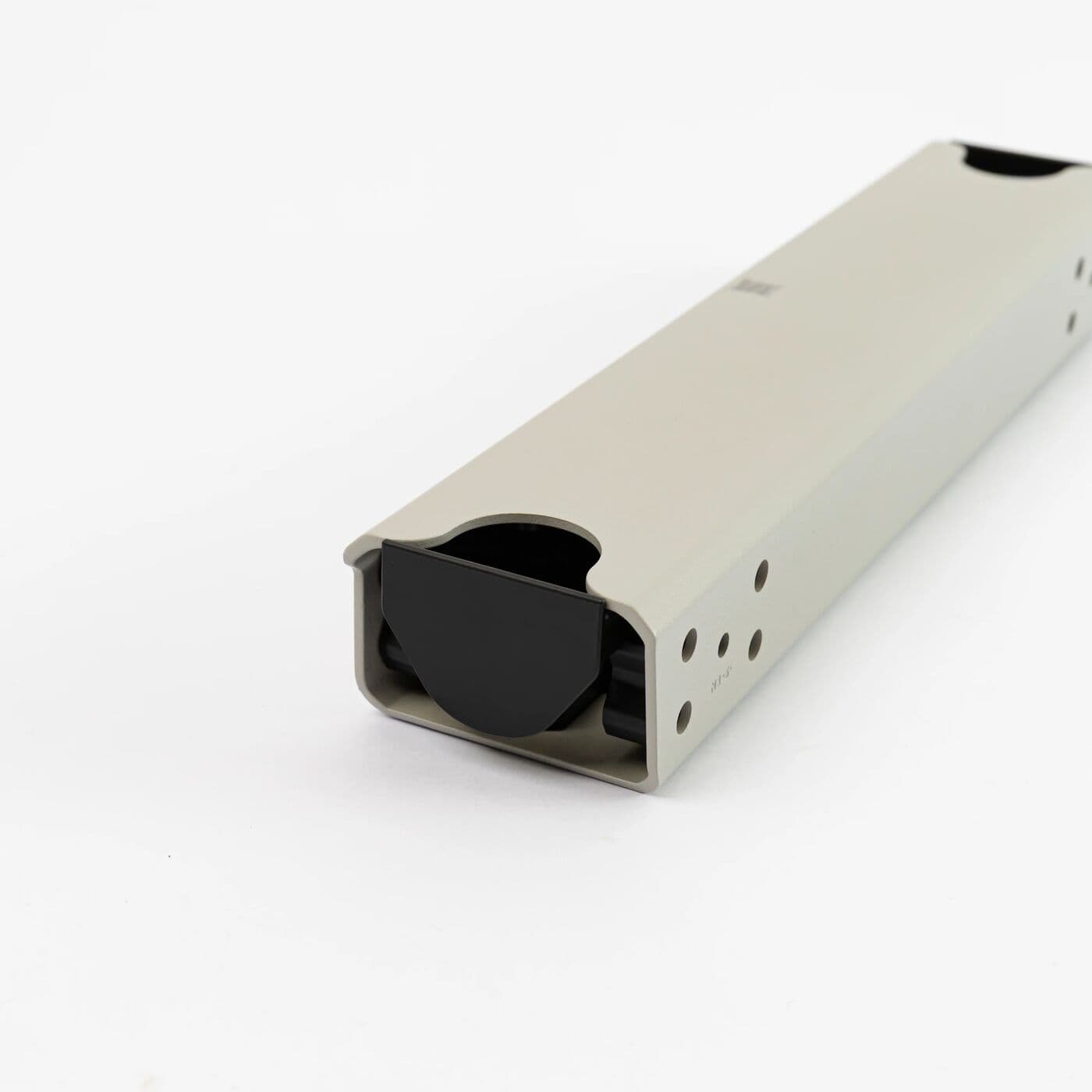

This is the aluminium rear frame tube of the DJI Agras T100, part of the structure at the back of the airframe. The middle and rear frame sheet draws it with the airframe screw cover, battery slider module and battery bracket rubber pad.
| Part number | BC.AG.SS001106 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 14 |
The rear of the frame takes knocks from hard landings and from bumps while the aircraft is loaded onto a ute or trailer. Replace the tube if it is bent, cracked or dented deeply enough to change its shape. Offer the new tube up and start every screw loosely before tightening any, so nothing is forced into line.
While the frame is apart, check the battery slider module and rubber pad for wear, and renew the frame screw at callout 16 if its head or thread is damaged. A cracked or missing airframe screw cover can be swapped at the same time. Match code BC.AG.SS001106, as the front and middle frame tubes are different parts.
