Lower Propeller - CCW (T50) YC.JG.ZS005018
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

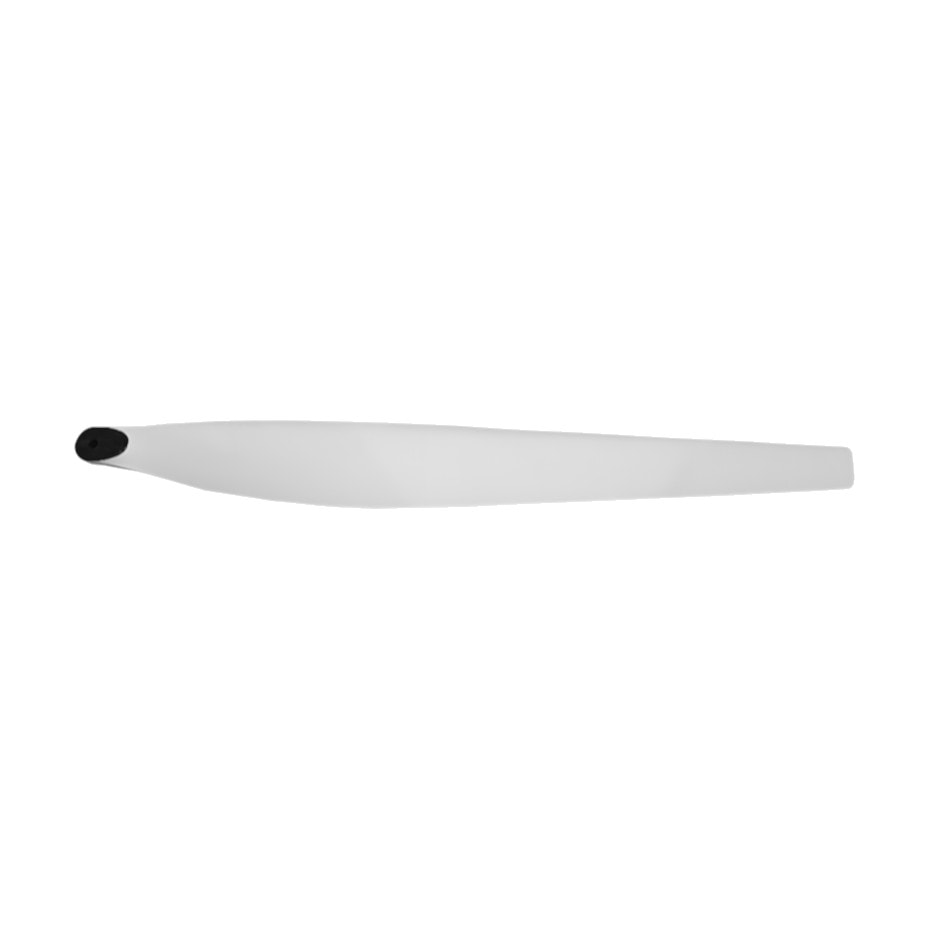

For the bottom rotor on the counter-clockwise positions of a DJI Agras T50, this is one lower CCW blade. The T50 propeller diagram lists it at callout 3, twice over, one for each blade on the rotor.
| Part number | YC.JG.ZS005018 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 propeller, callout 3 |
| Supplied as | One blade, sold individually. Each rotor takes two. |
The model number on each blade ends in U or L for upper or lower, and the two are separate parts. This is the L blade; the top rotor takes the upper CCW propeller at callout 1. Check the CCW mark on the new blade against the motor before fitting.
Each blade is held by an M5 screw through the lower propeller adapter, so inspect the adapter and washers whenever a blade comes off. DJI's schedule calls for new propellers at 700 hours, and any blade with a crack, split or missing chunk should be replaced before the next flight.
