DJI
Upper Propeller - CCW (T50) YC.JG.ZS005016
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

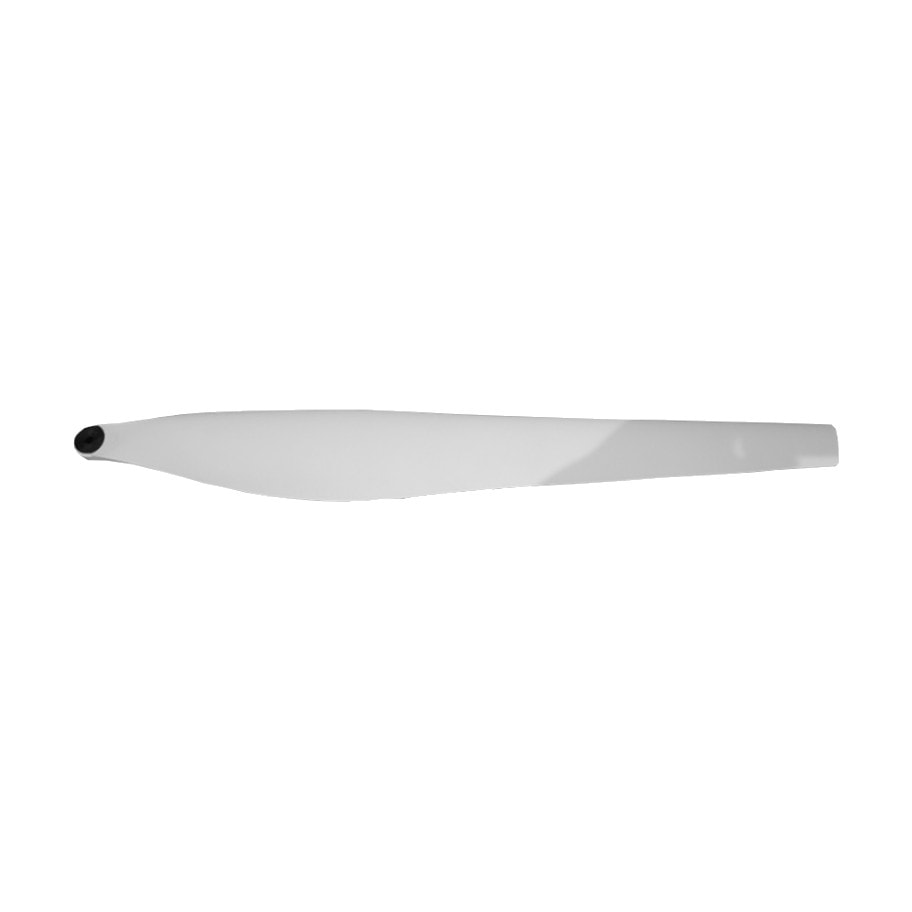

This is a single upper counter-clockwise (CCW) blade for the DJI Agras T50. It belongs on the top rotor of a motor marked CCW, and the T50 propeller diagram numbers it callout 1.
| Part number | YC.JG.ZS005016 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 propeller, callout 1 |
| Supplied as | One blade, sold individually. Each rotor takes two. |
Swapping blades, following DJI's manual:
- Undo the two M5 blade screws with a hex key and lift off the propeller adapter and washers.
- Check that the CCW mark on the new blade matches the motor, and that the U (upper) at the end of its model number suits the position.
- Seat each blade between its washers, refit the adapter and tighten both screws.
- Before flying, unfold the blades and confirm they are firmly mounted.
The lower rotor on the same arm uses a different blade, the lower CCW propeller at callout 3. While the adapter is off, look it over along with the washers: DJI wants the adapter checked daily, and washers replaced if blades have come loose. The T50 propeller gasket (callout 2) is sold separately. EE Group also lists this upper blade for the T40.
