DJI
Upper Propeller - CW (T50) YC.JG.ZS005017
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

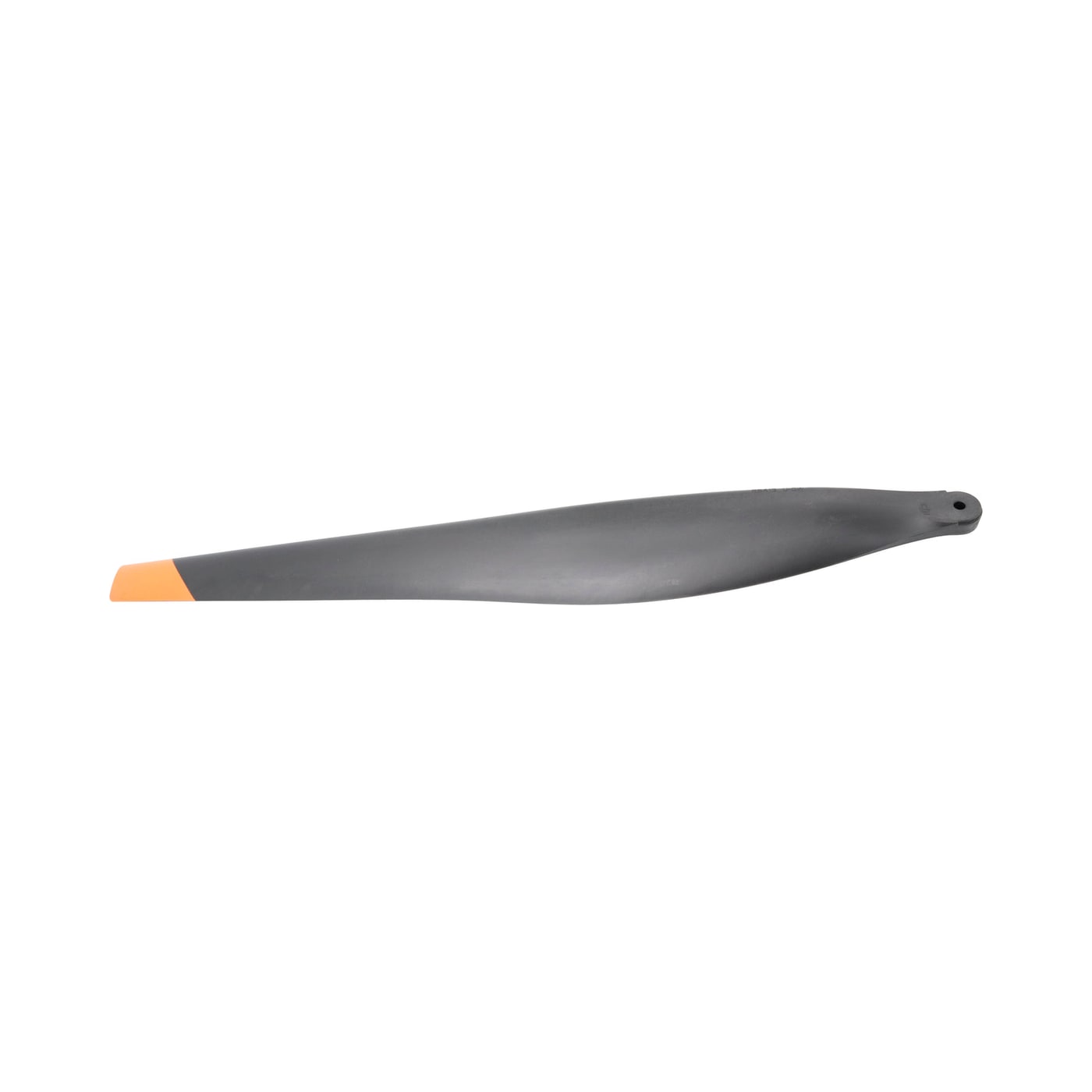

One upper clockwise (CW) propeller blade for the DJI Agras T50, for the top rotor on each CW position. The T50 propeller diagram shows it at callout 7, drawn twice because each rotor carries two blades.
| Part number | YC.JG.ZS005017 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 propeller, callout 7 |
| Supplied as | One blade, sold individually. Each rotor takes two. |
The T50 is coaxial, with an upper and a lower rotor on each arm, and its upper and lower blades are different parts. DJI marks each blade with a U or L at the end of its model number, so read the letter on the old blade before ordering. The bottom rotor takes the lower CW propeller at callout 8. EE Group also lists this upper blade for the T40.
DJI specifies a 1371.6 mm propeller in nylon carbon fibre for the T50. Its maintenance schedule asks for a first propeller check after 100 flights, then every 100 hours or every month, and new propellers at 700 hours. Any blade with a crack, split or missing chunk should come off straight away, and the upper propeller adapter is worth a look while it is off.
