DJI
Landing Gear Aluminum Tube - Spreading (T100) YC.JG.BJ003614
Shipping: Oversize Parcel, $67.50 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

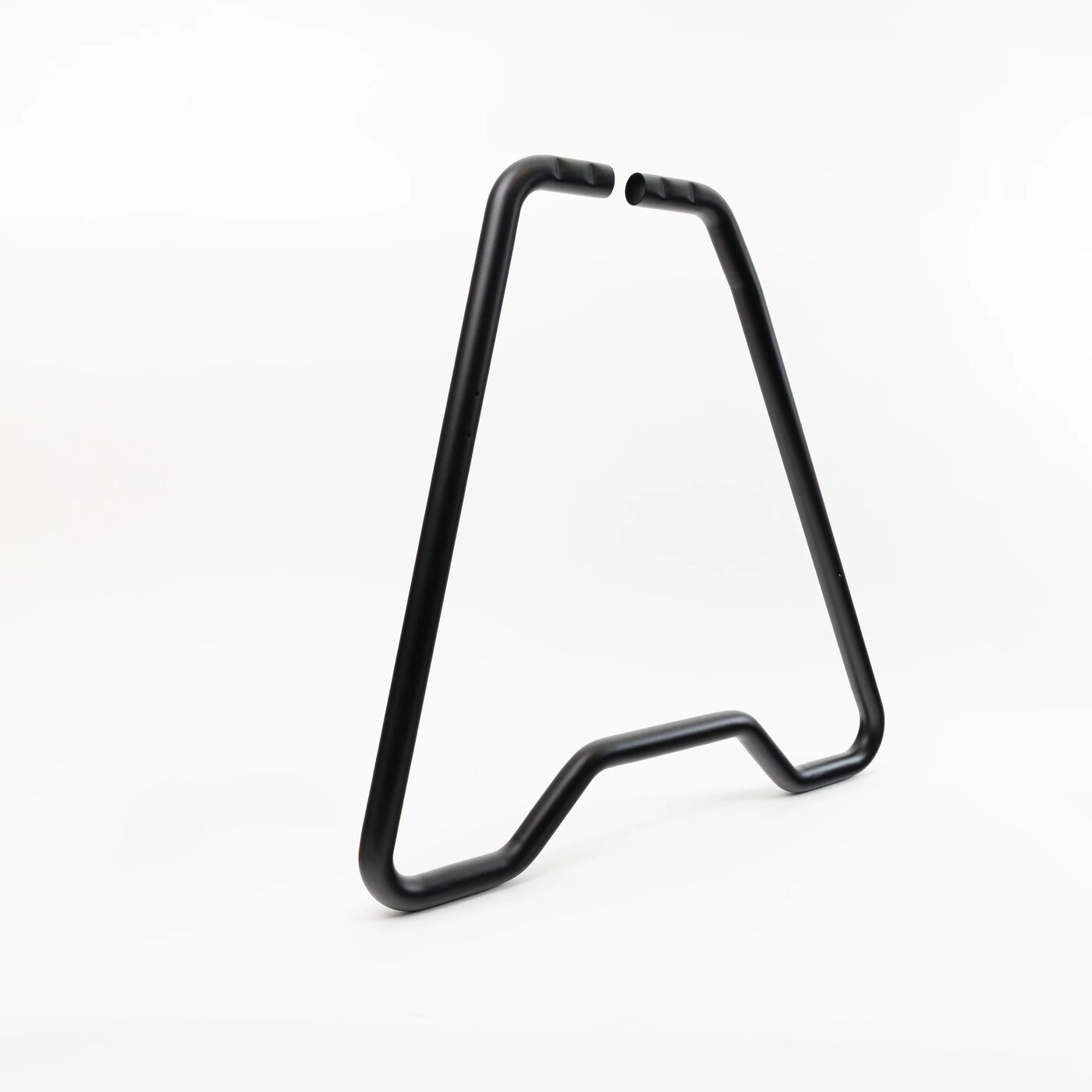

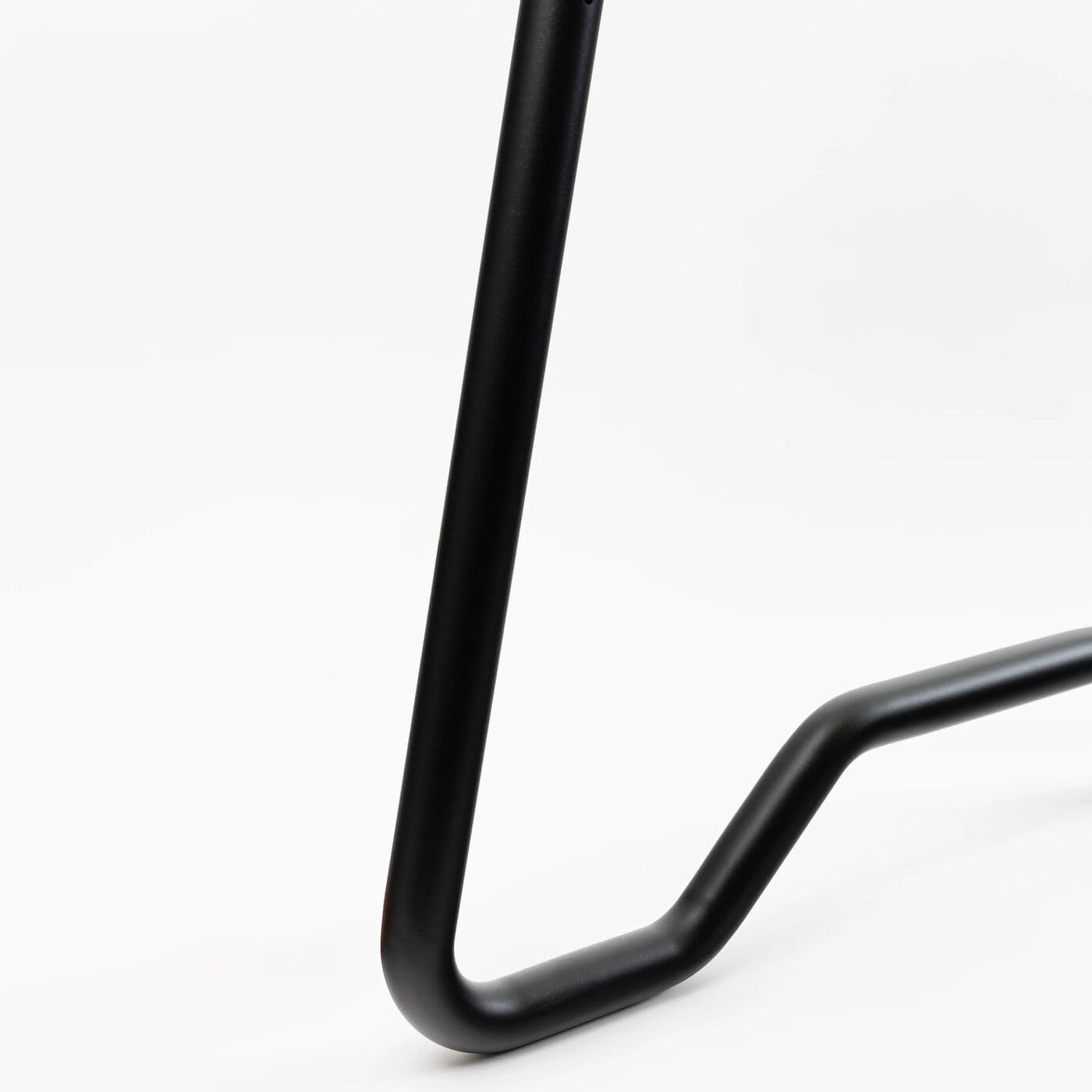

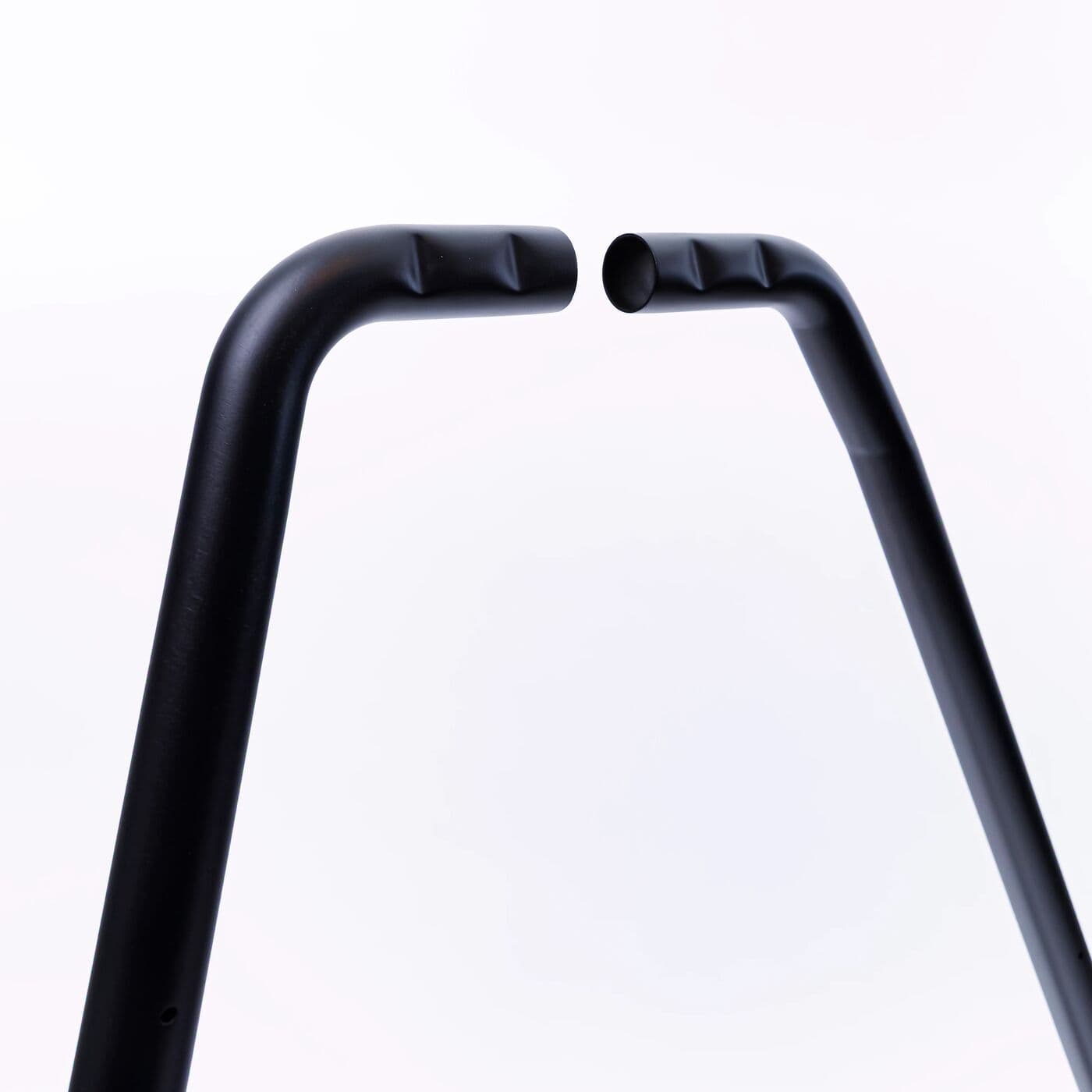

Aluminium tube 3614 is a structural member of the DJI Agras T100 landing gear, drawn as callout 1 on the T100 spreading landing gear sheet.
| Part number | YC.JG.BJ003614 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading landing gear, callout 1 |
Every touchdown loads the landing gear, so this tube is usually damaged by a heavy or lopsided landing, a rut or stump on uneven ground, or a knock while the aircraft is loaded onto a ute or trailer. Check for kinks, dents, cracks near the fittings, and white, powdery corrosion where fertiliser has been left on the metal. Replace a bent tube rather than straightening it, as reworked aluminium can crack later.
With the gear apart, look over the bottom rubber pad and anti-collision soft rubber from the same sheet, and make sure payload cable clamp B still holds its cable securely.
