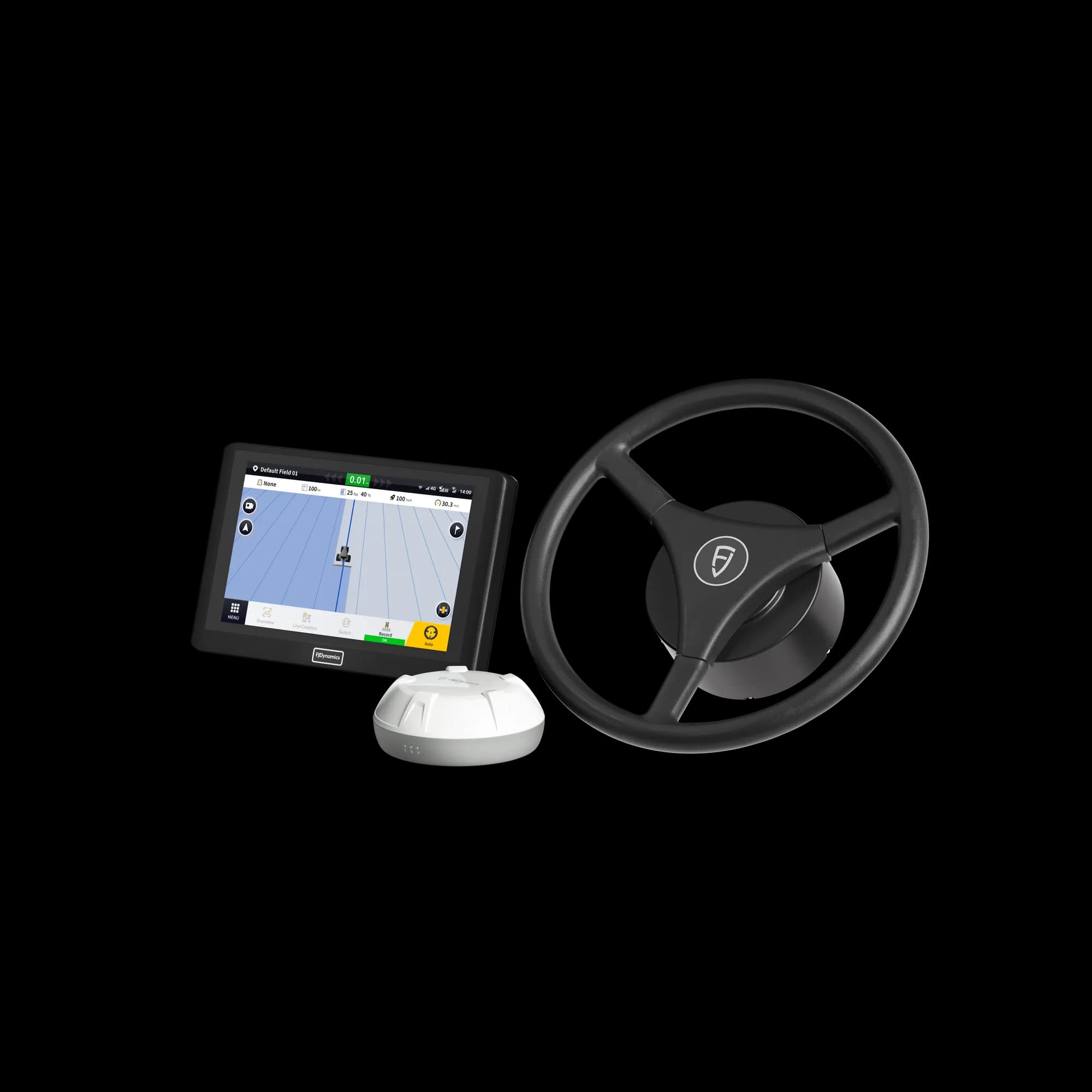

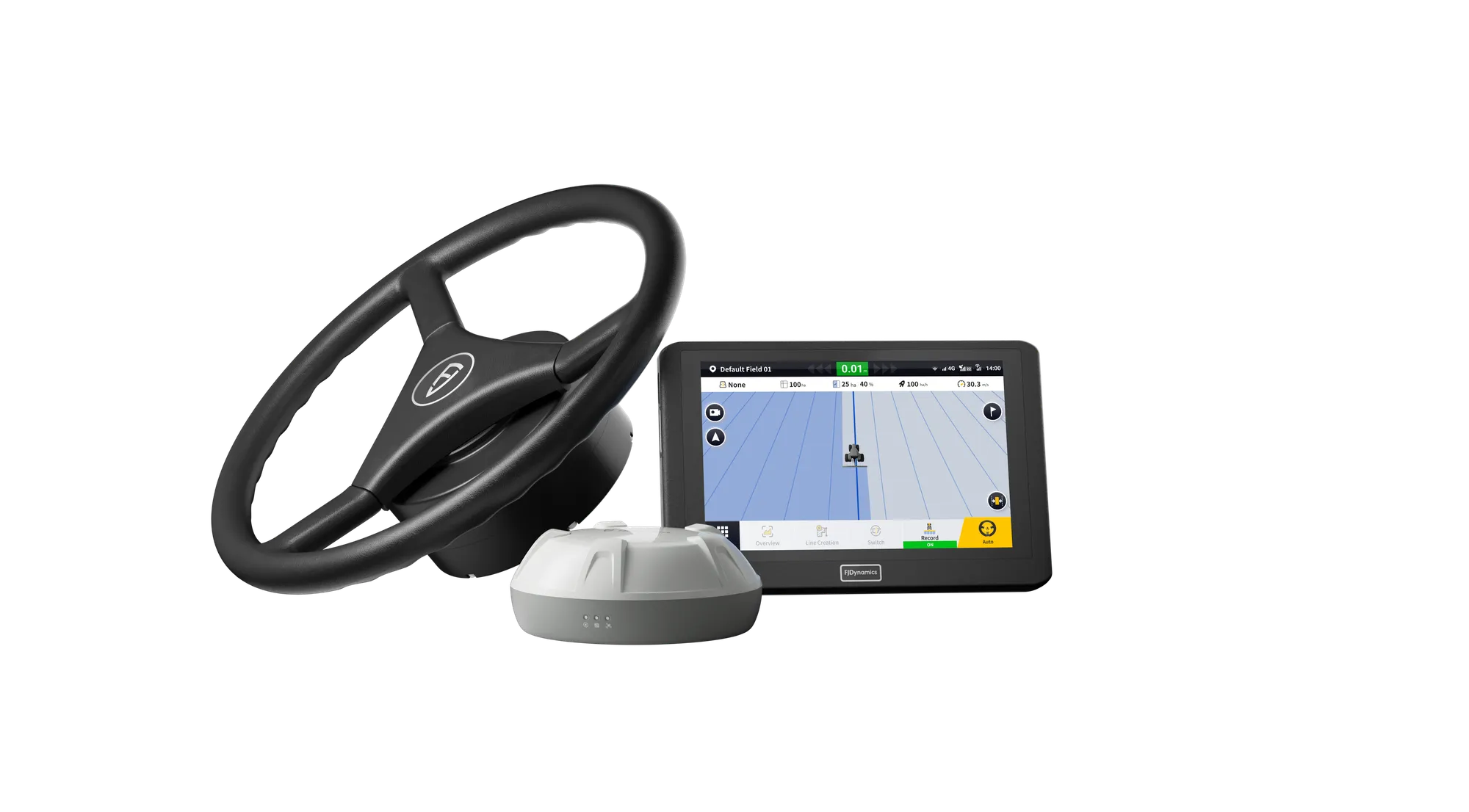

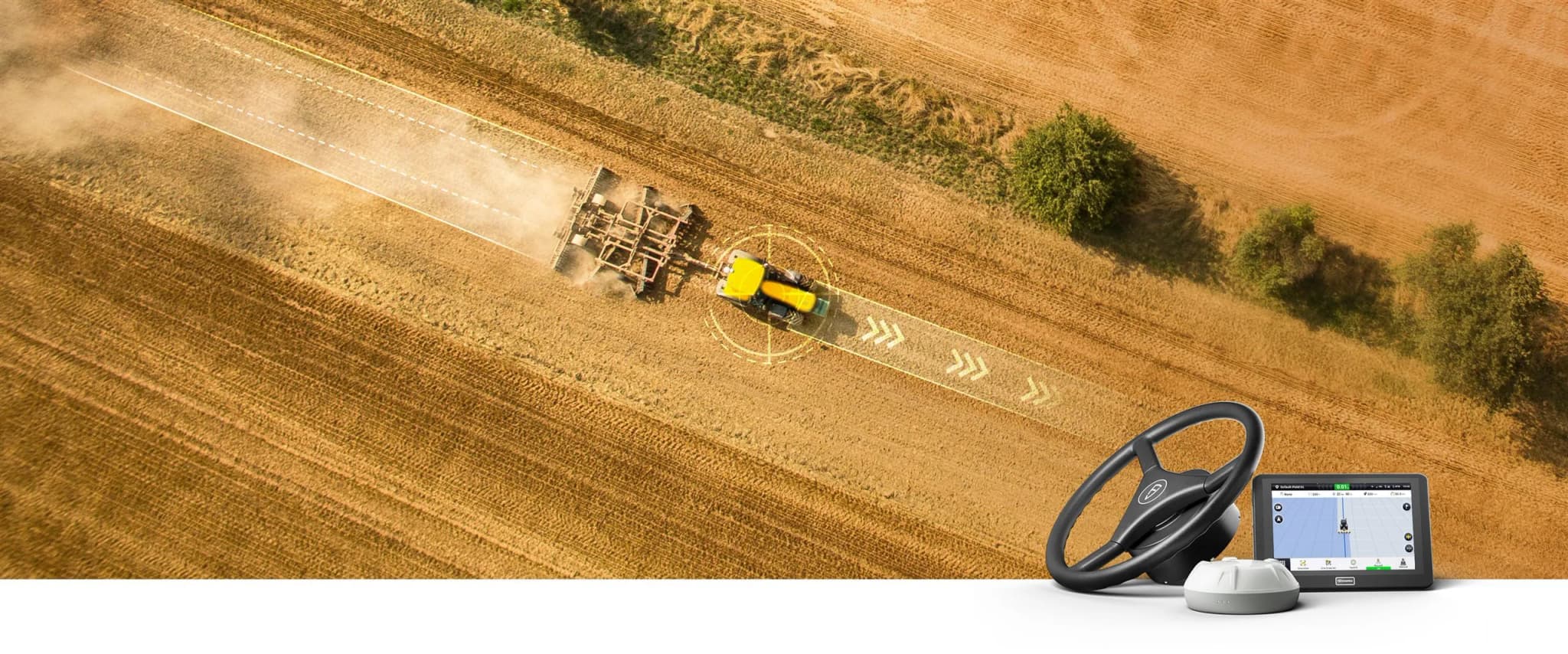

FJD AT2 Auto Steer System

Navigate to next-level efficiency. The FJD AT2 combines GNSS and RTK to hold a 2.5 cm pass-to-pass line, and it fits a huge range of tractors and implements. Fewer skips, fewer overlaps, lower input costs, and accurate work that carries on after dark.

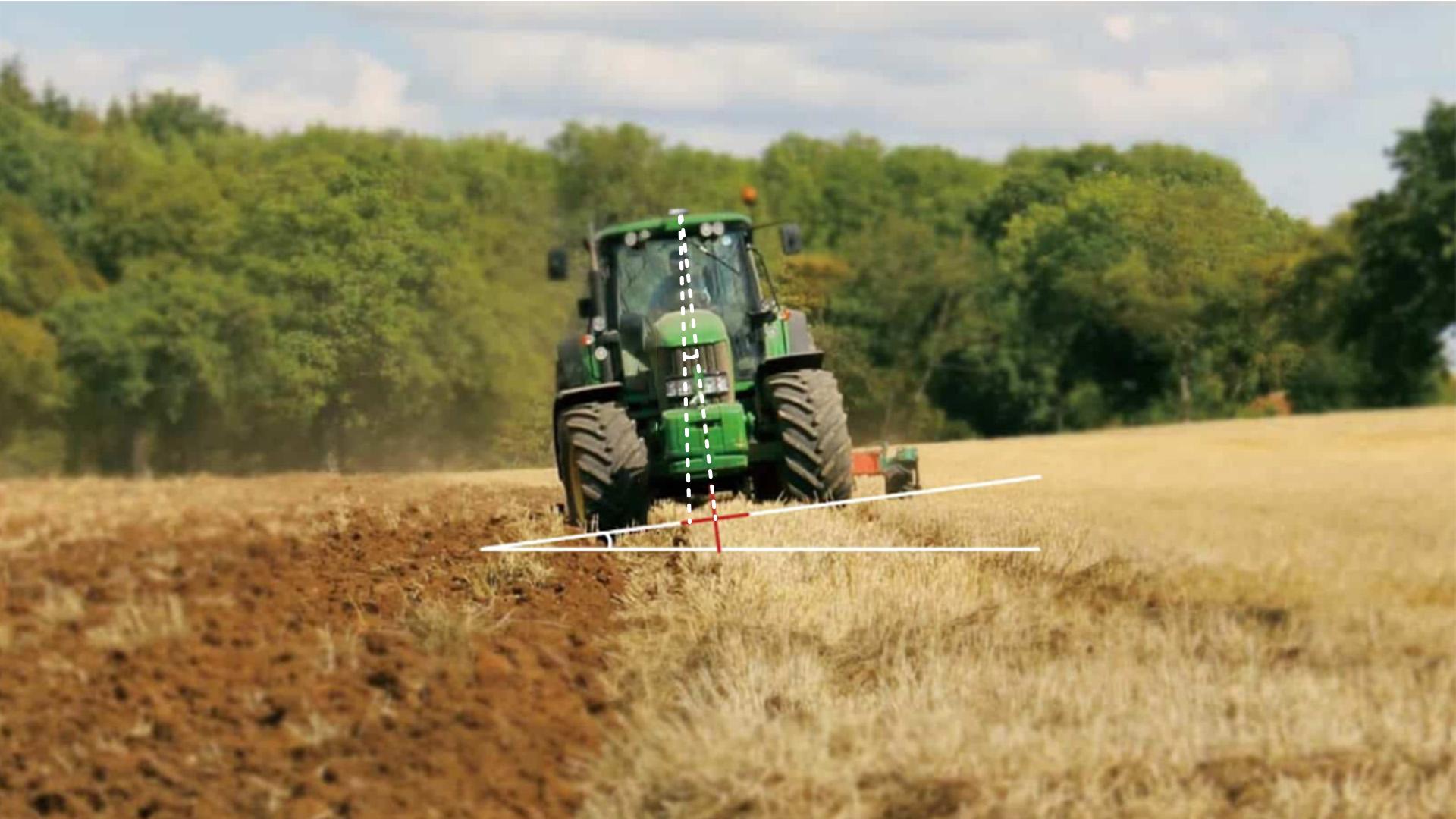

Precise performance across diverse scenarios

The AT2 holds its 2.5 cm accuracy across the full spread of farm jobs:

• Wide speed range: steers accurately anywhere from 0.1 km/h to 26 km/h, from creep-speed planting to fast passes
• Terrain compensation: keeps the line true while driving on sloping or rough ground

Automatic U-turn for effortless operation

The AT2 guides the tractor through smooth automatic turns at the end of each row, so the pass-to-pass rhythm never breaks (optional paid function). Three turn styles cover different paddocks:

• Smart U-turn: analyses the boundary and plans the best full-field path, with uninterrupted turns and headland closing
• Basic U-turn, Ω shape: a quick one-click turnaround, ideal where there is room to swing at the headland
• Basic U-turn, fishtail shape: a three-point style turn for irregular paddocks with tight headlands

	Smart U-turn	Basic U-turn (Ω / fishtail)
Field type	Large fields	Any field shape, especially small ones
Path planning	Optimal path for the complete task	Flexible path for each turn
U-turn method	Uninterrupted U-turns	Uninterrupted or single U-turns
Headland closing	Yes	No
Boundary warning	Yes	Yes
Overlap avoidance	Skips worked area when planning	No

Convenient implement control with ISOBUS

AEF-certified ISOBUS lets one terminal run multiple implements with precision.

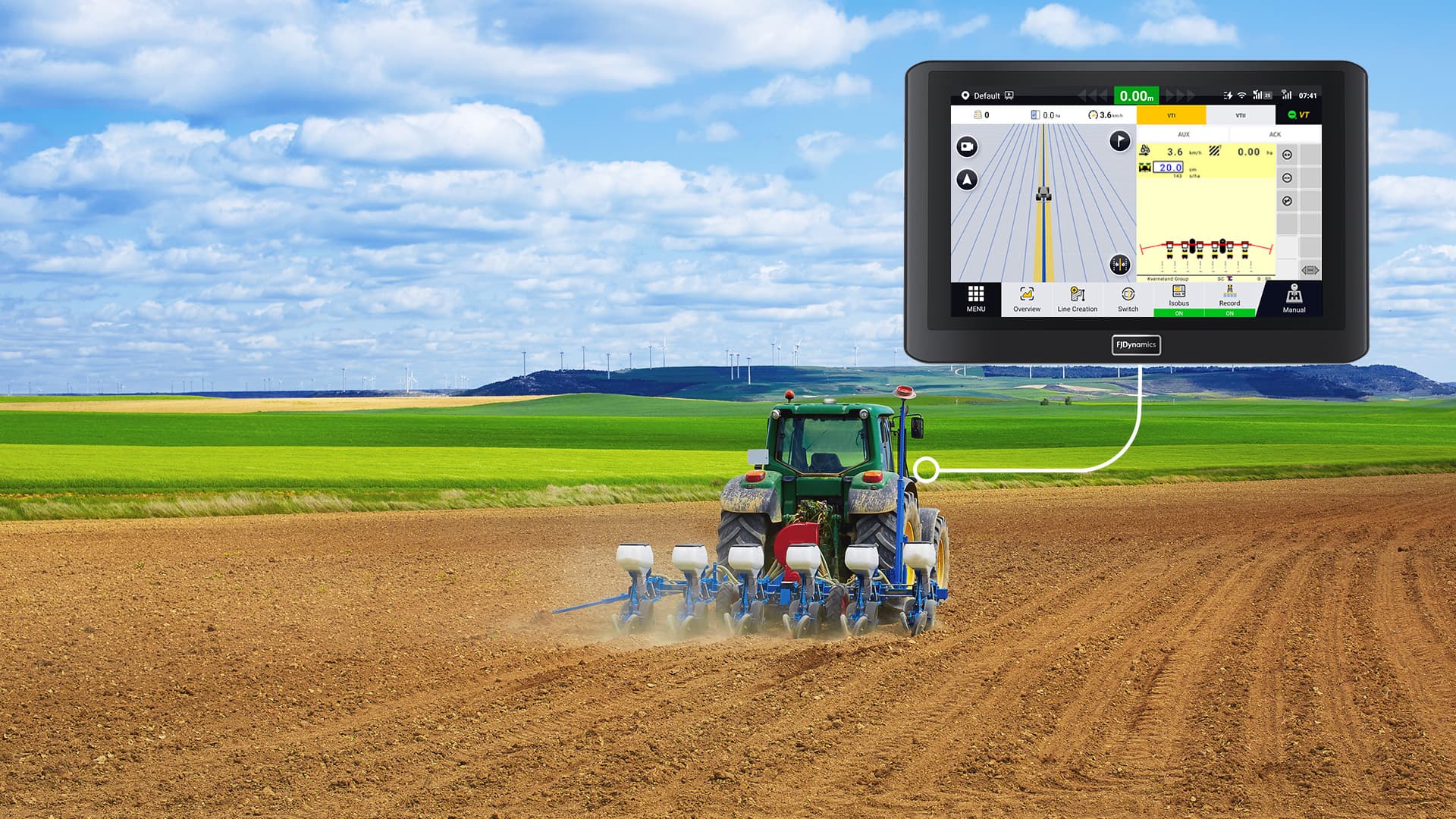

Virtual Terminal (VT)

Run the implement from the AT2's own screen: one control terminal for the lot, no extra boxes in the cab.

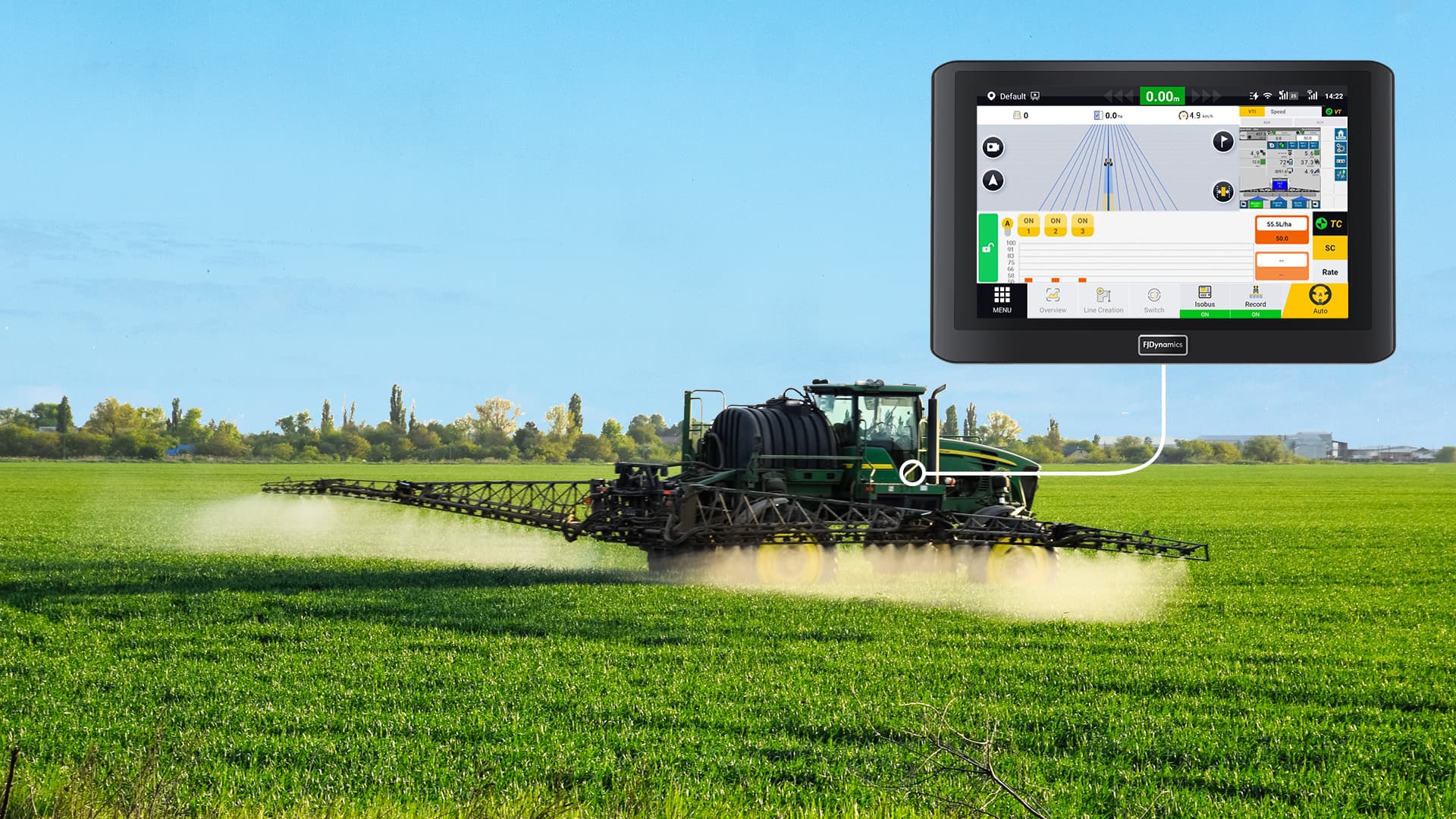

Task Controller (TC)

Automates implement work by section and prescription, switching sections on and off precisely as the tractor moves through the paddock.

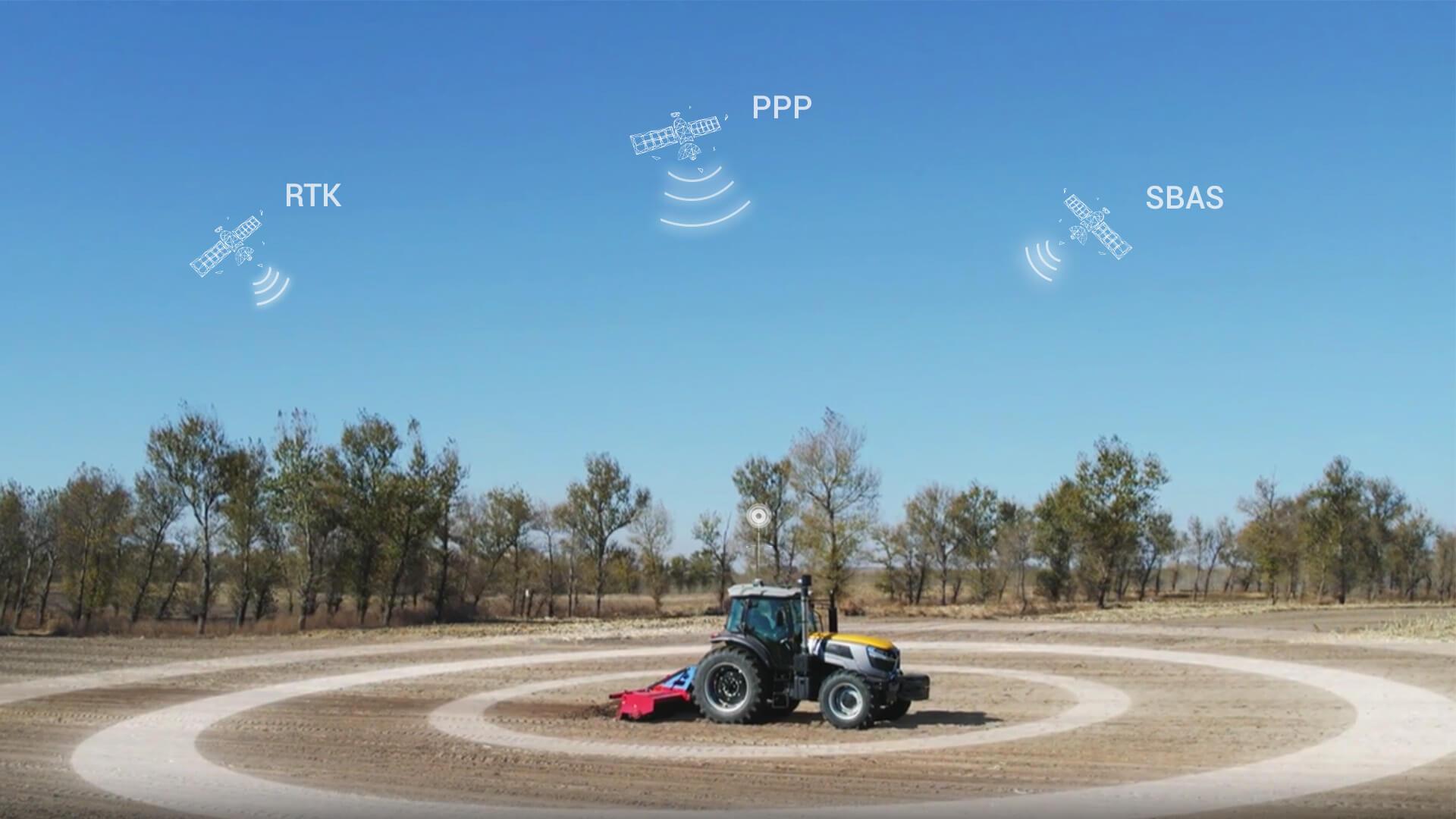

Multiple correction signals supported

• Outstanding precision with RTK: 2.5 cm accuracy for high-precision work
• Free PPP and SBAS: decimetre-level accuracy with no internet requirement, handy beyond network coverage

Smart path planning for various scenarios

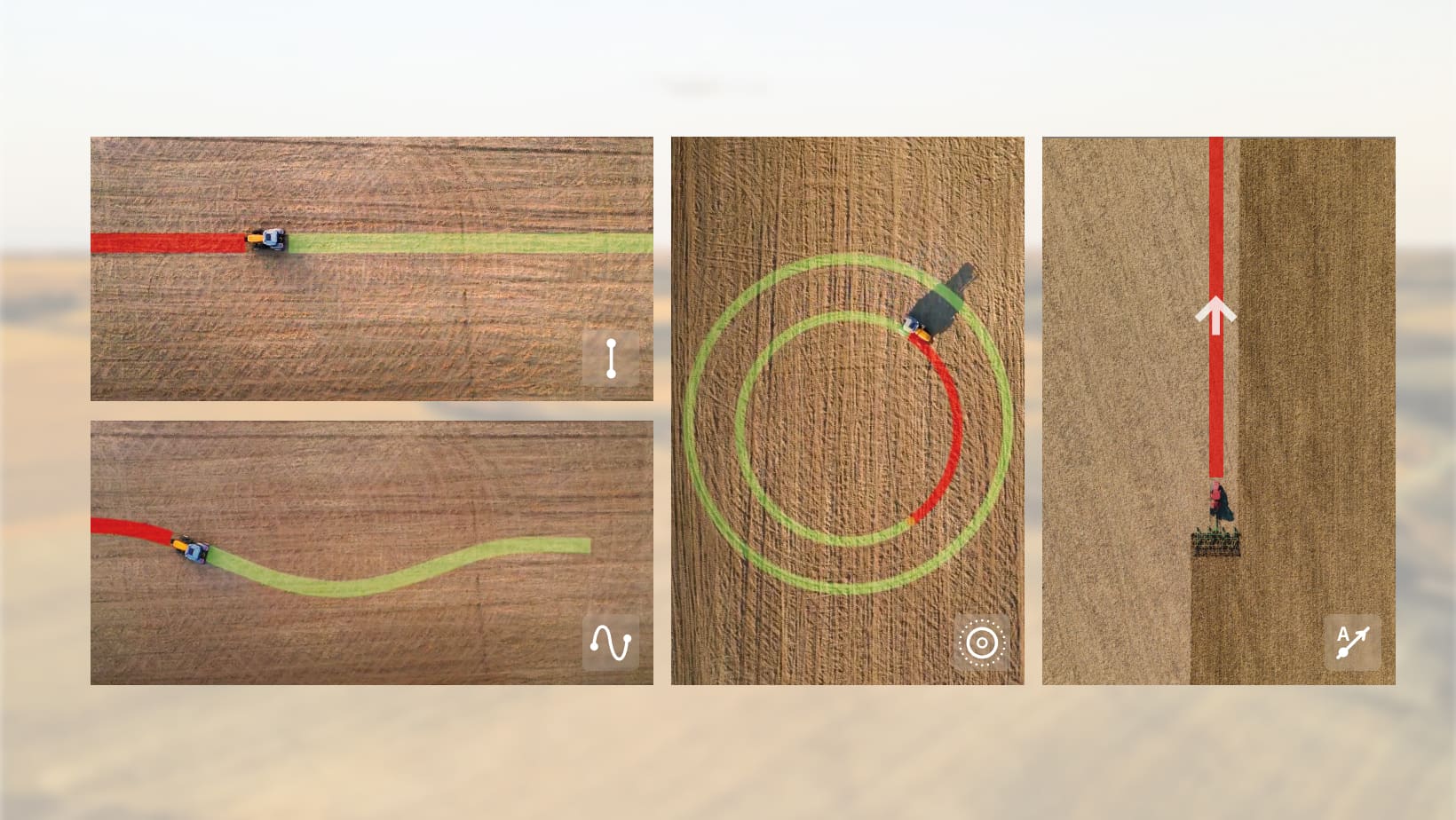

• Regular options: straight-line, curve, A+ line, and pivot modes for diverse field shapes

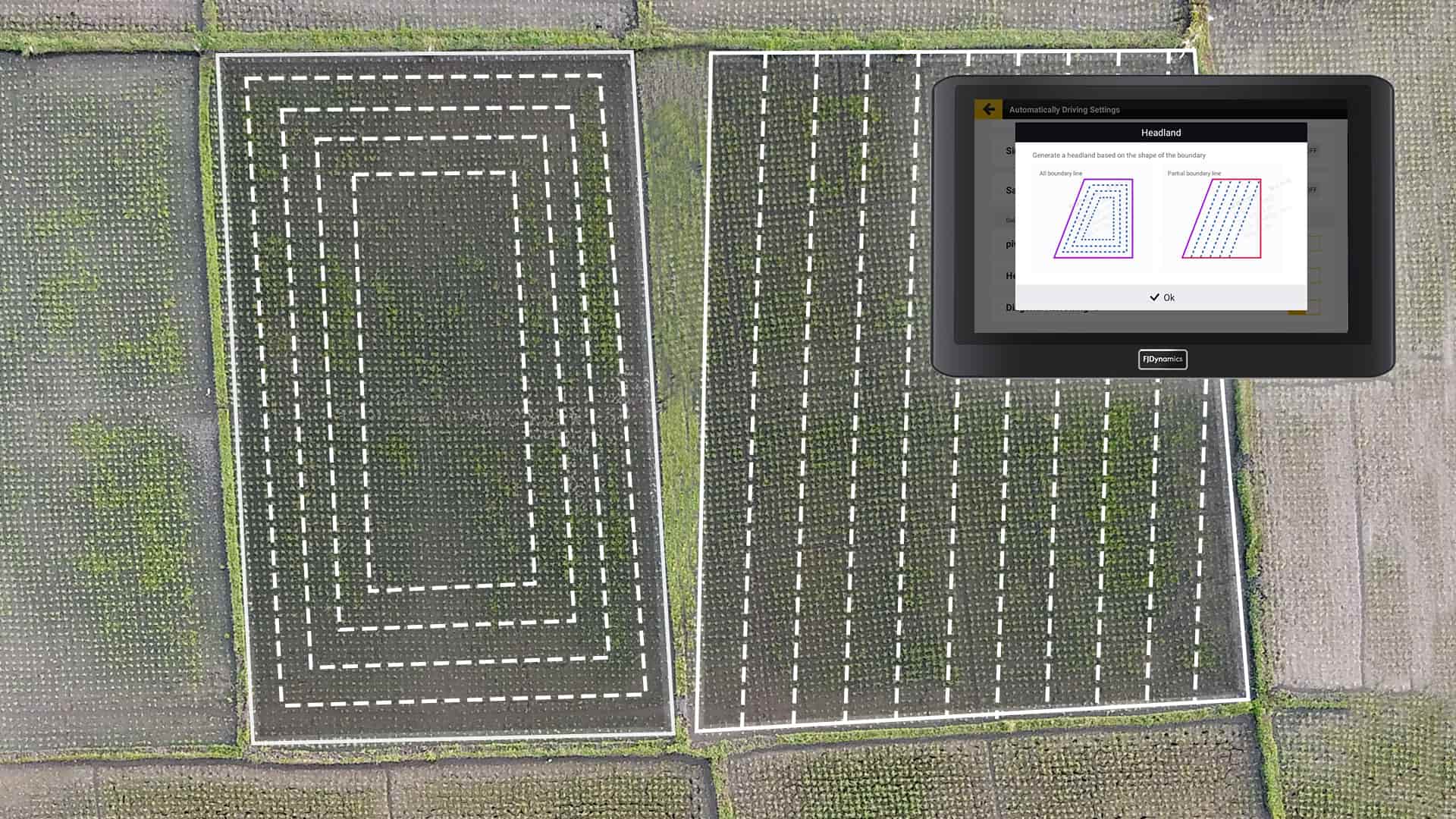

• Headland: generates guidance lines from the boundary shape

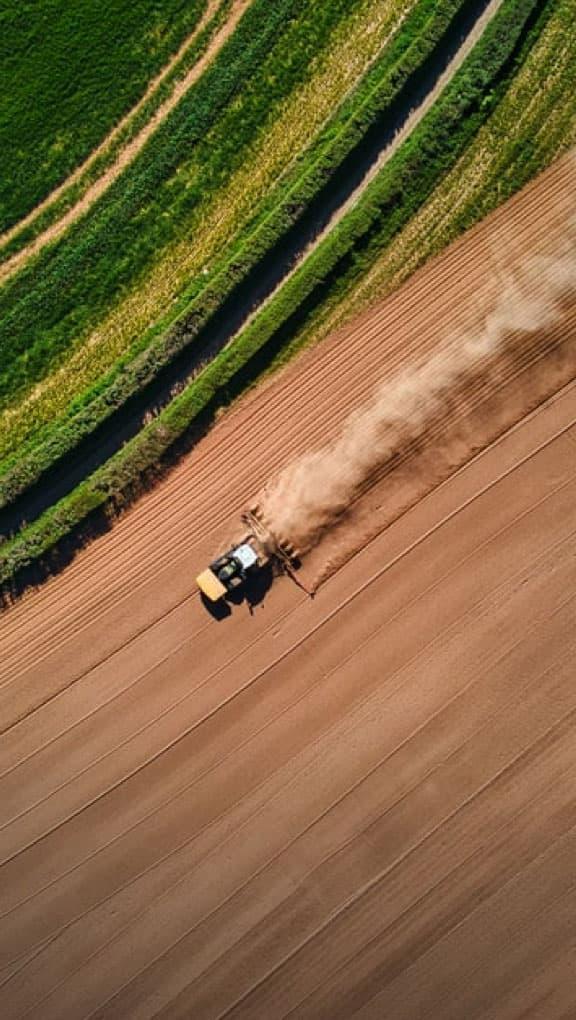

• Diagonal harrowing: optimal angled paths for thorough harrowing

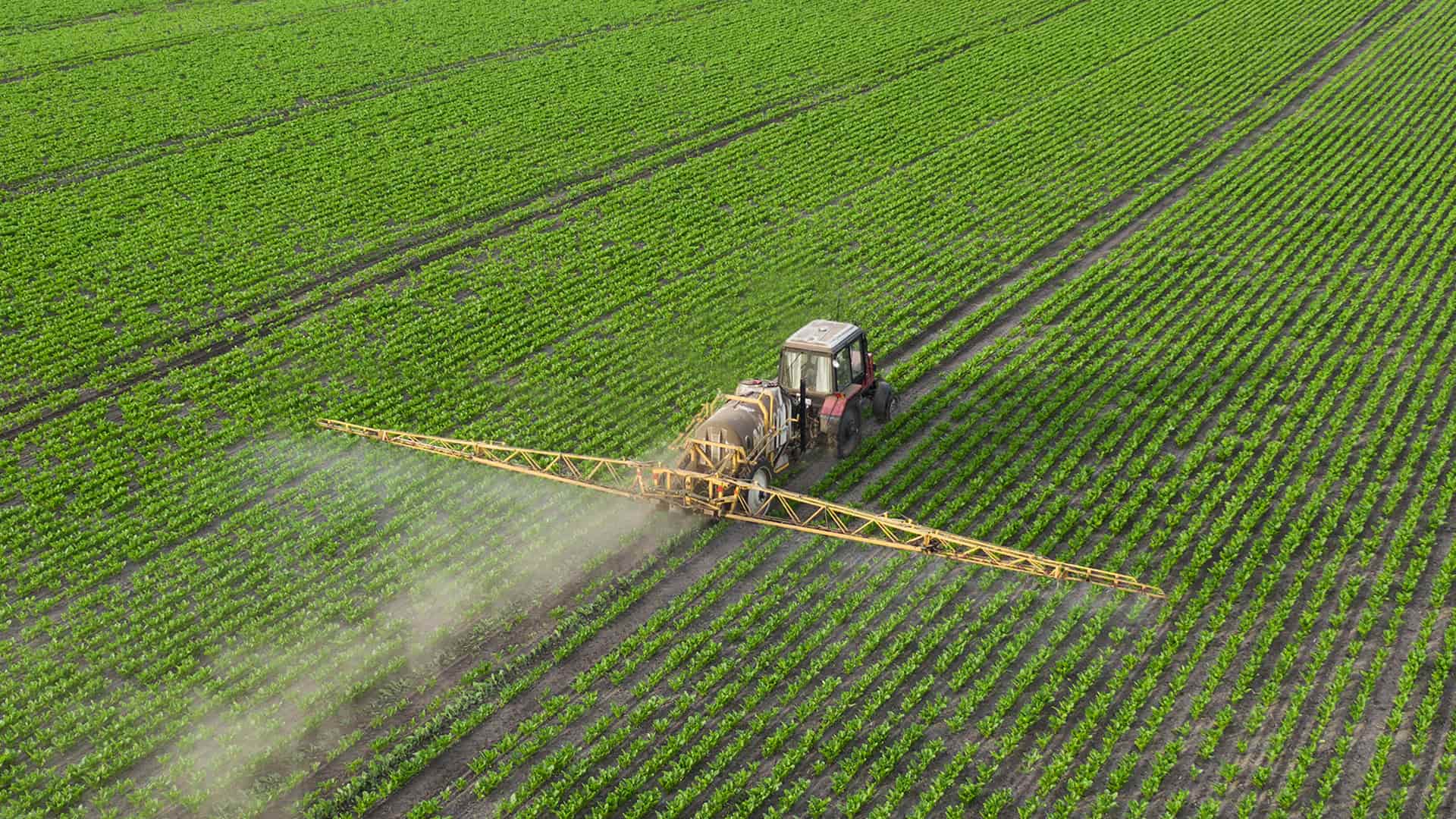

• Tramline: parallel wheel tracks generated on the current guidance line
• Line group: saves completed paths as reusable line groups

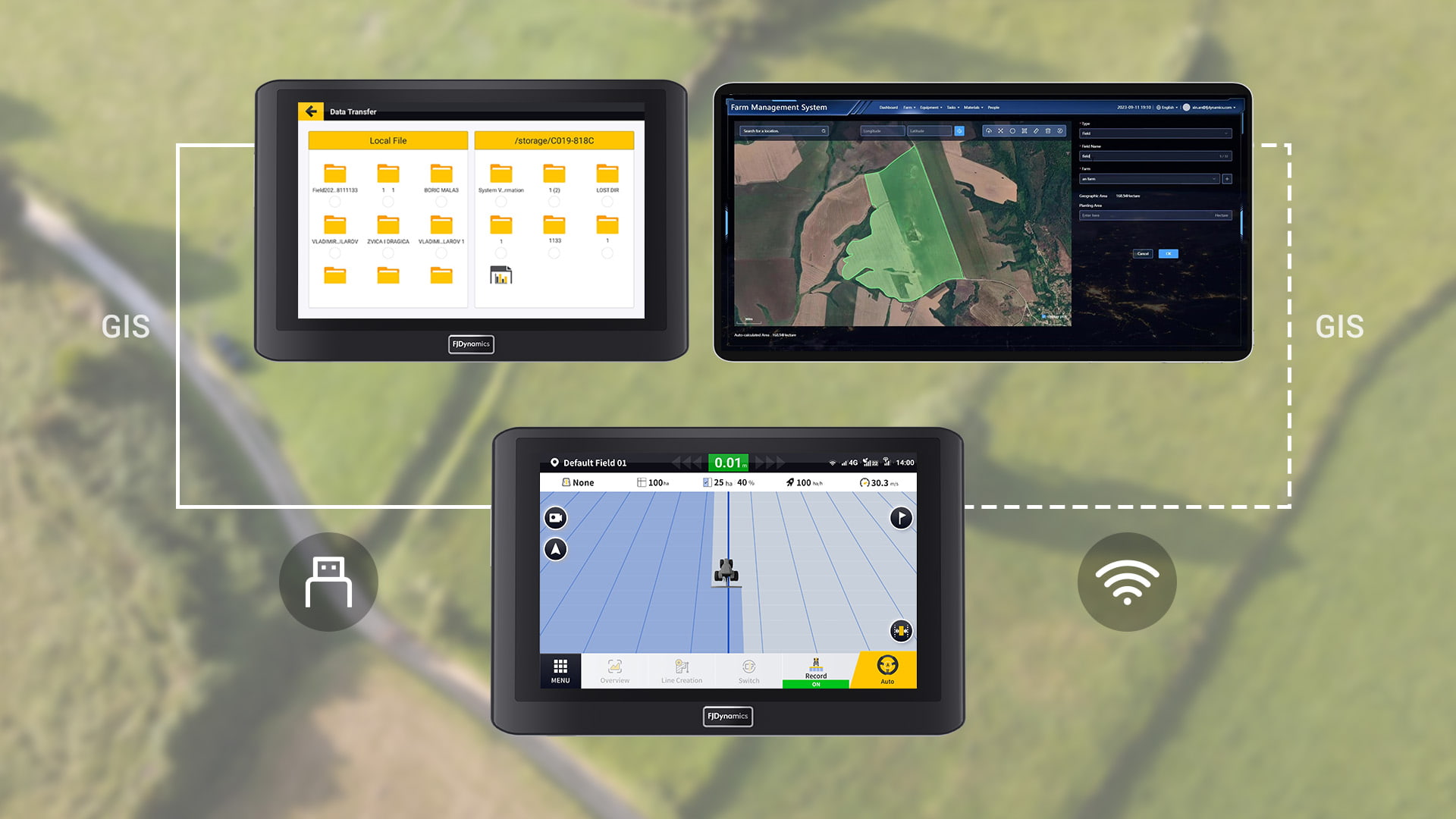

• GIS information transfer: boundaries and lines move between machines on a USB stick (.SHP and .ISOXML)

Get your auto steer connected

Integrate the AT2 with a farm management system and it syncs operational data and executes pre-planned tasks from the platform, such as boundary lines and guidance paths.

Got you covered throughout seasons

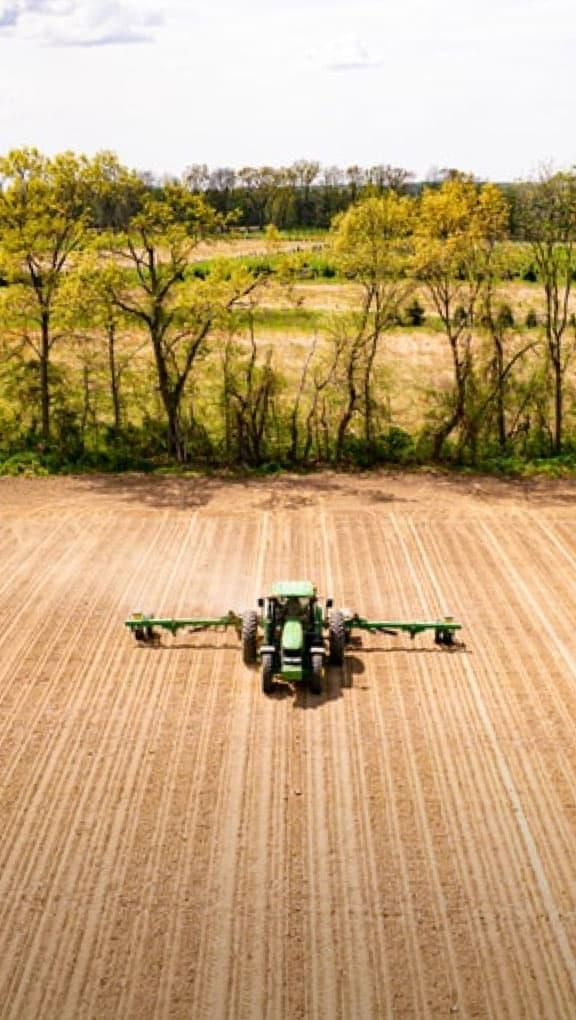

From land preparation to planting, spraying, and harvesting, the AT2 earns its keep all year.

Accessories

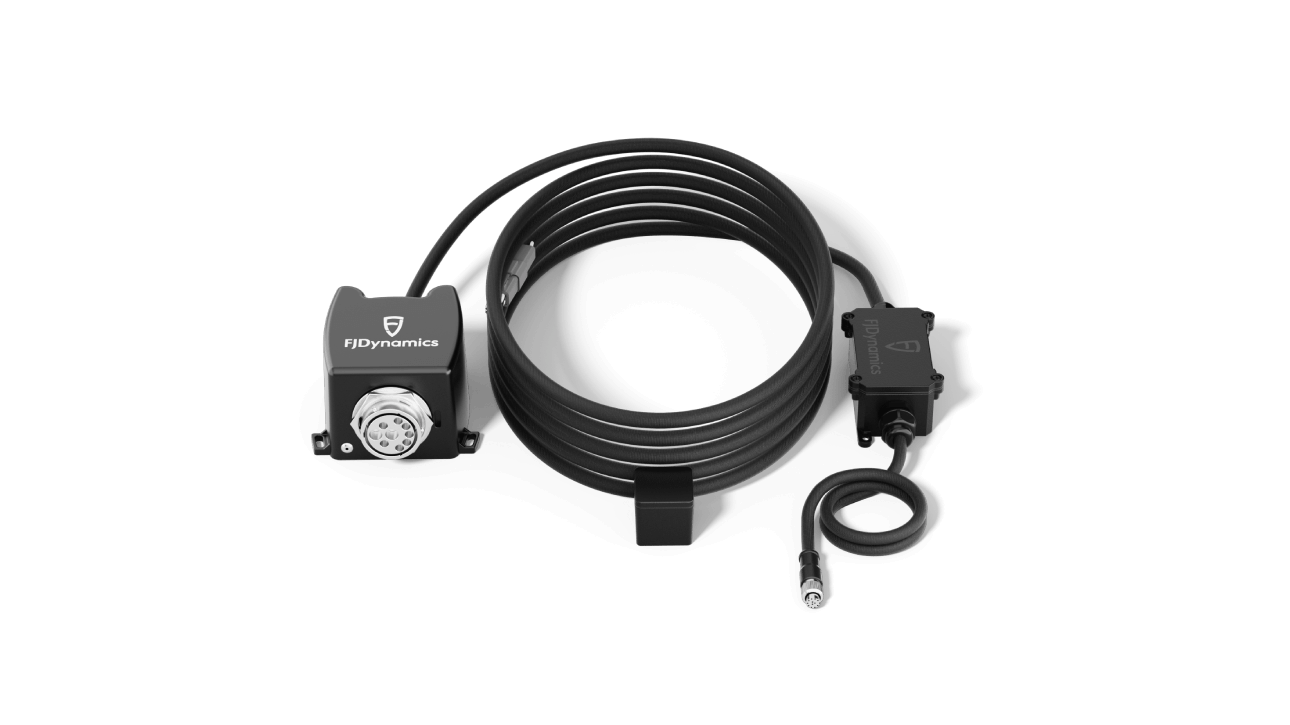

• FJD ISOBUS: precise, efficient control of multiple implements from one terminal

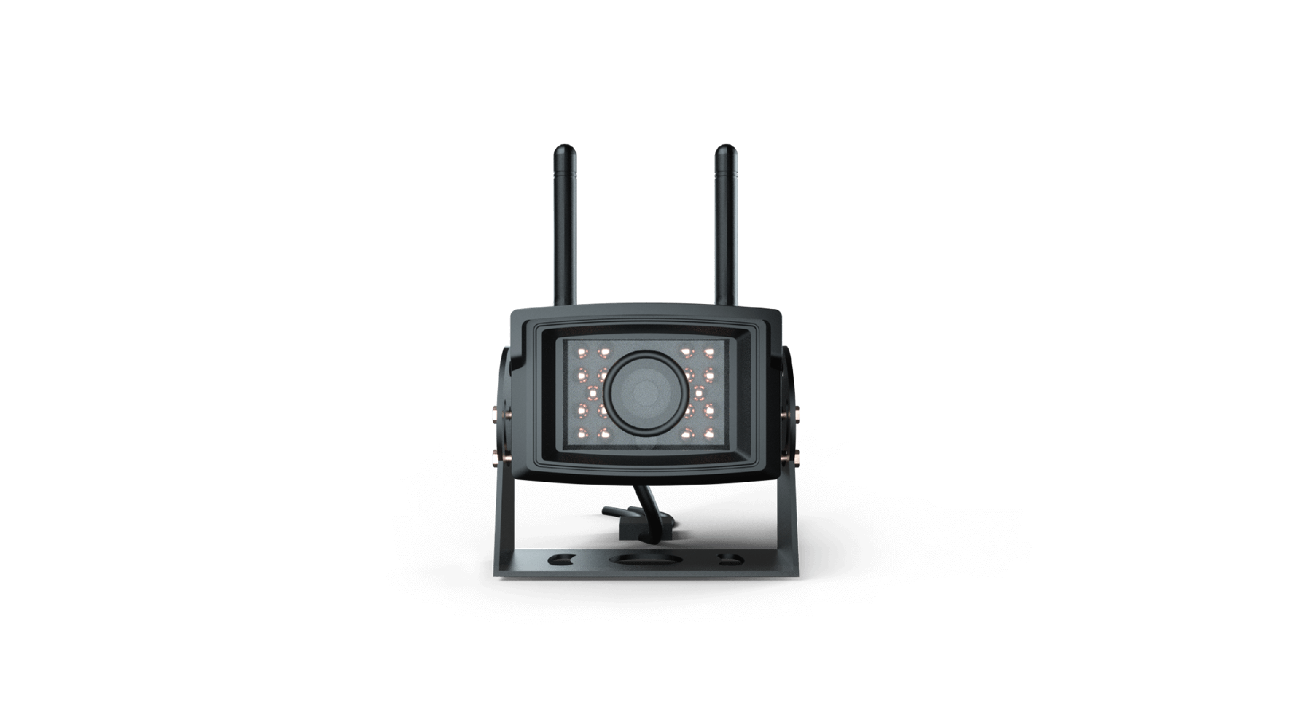

• FJD Wi-Fi Camera: 1080P live footage to the terminal from up to 20 m away, with infrared night vision

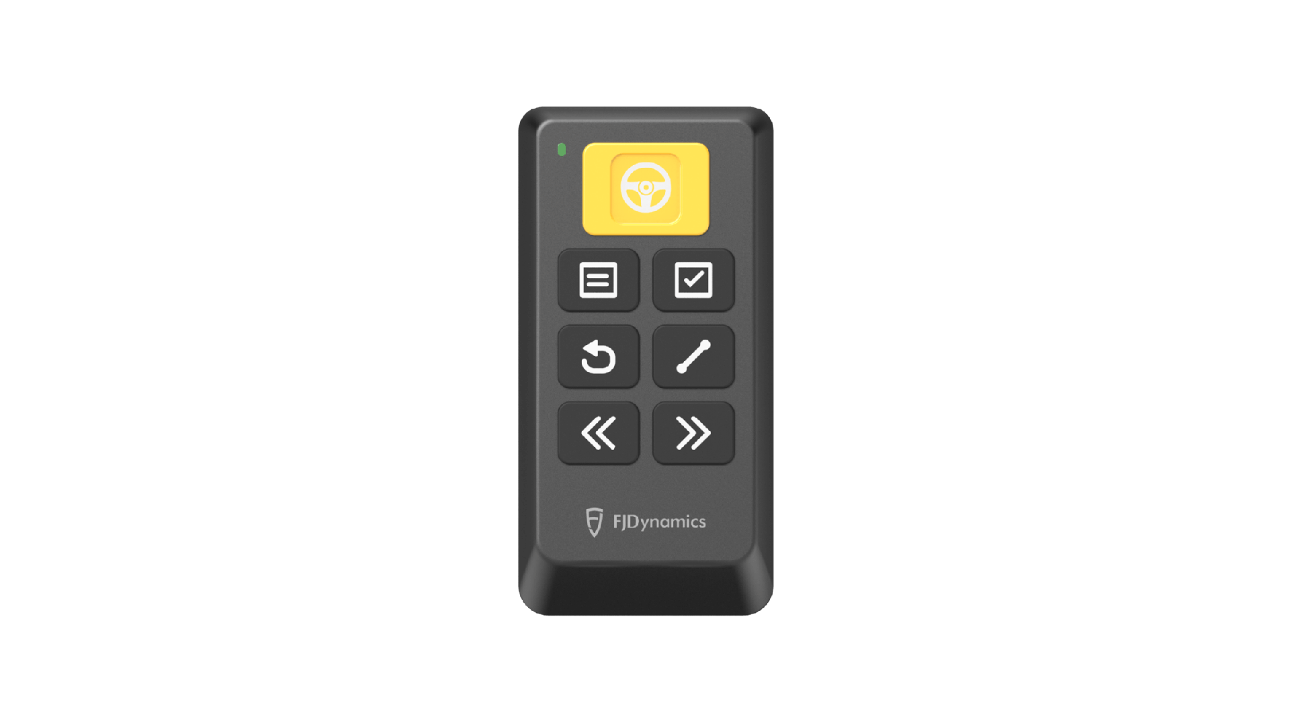

• FJD Easy Control: run the autosteer remotely when the touchscreen is out of reach

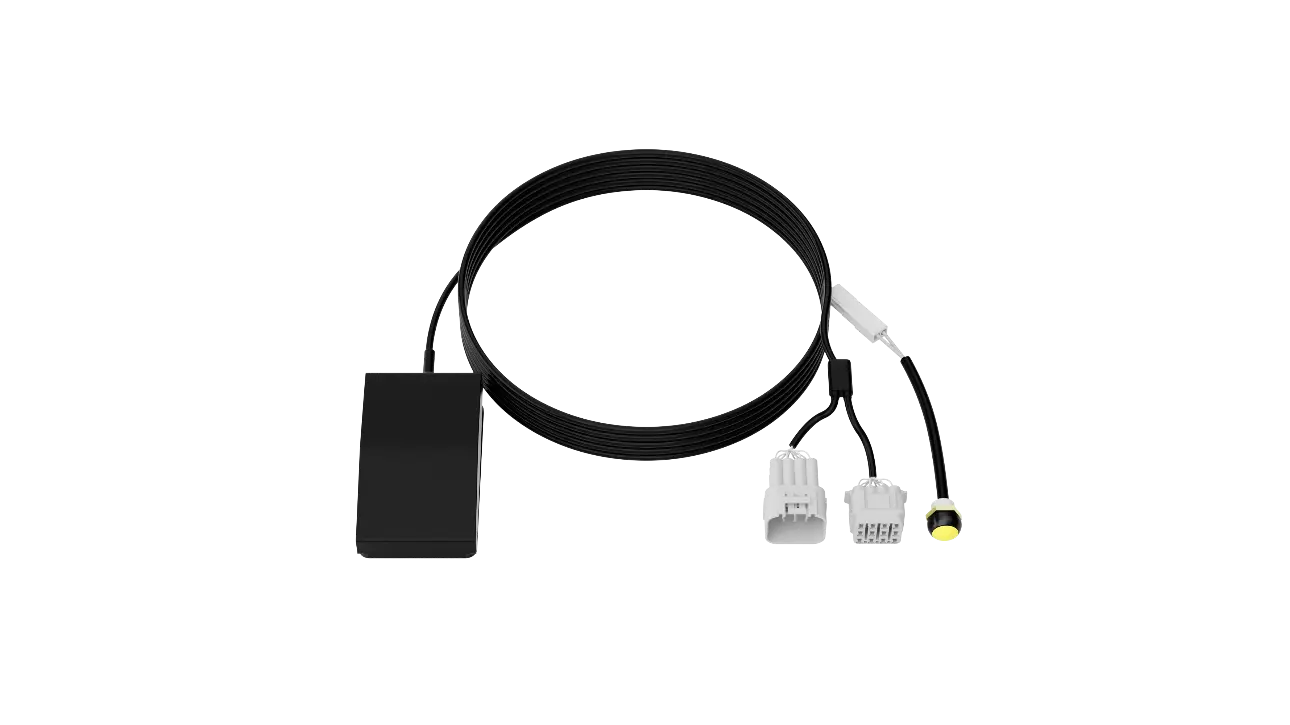

• FJD Easy Switch: swap between manual and auto with a single button press or pedal tap

Reliable RTK positioning infrastructure

Pair the AT2 with an FJD base station or CORS system for dependable centimetre-level corrections across your whole operation. See our positioning infrastructure range.

Specifications

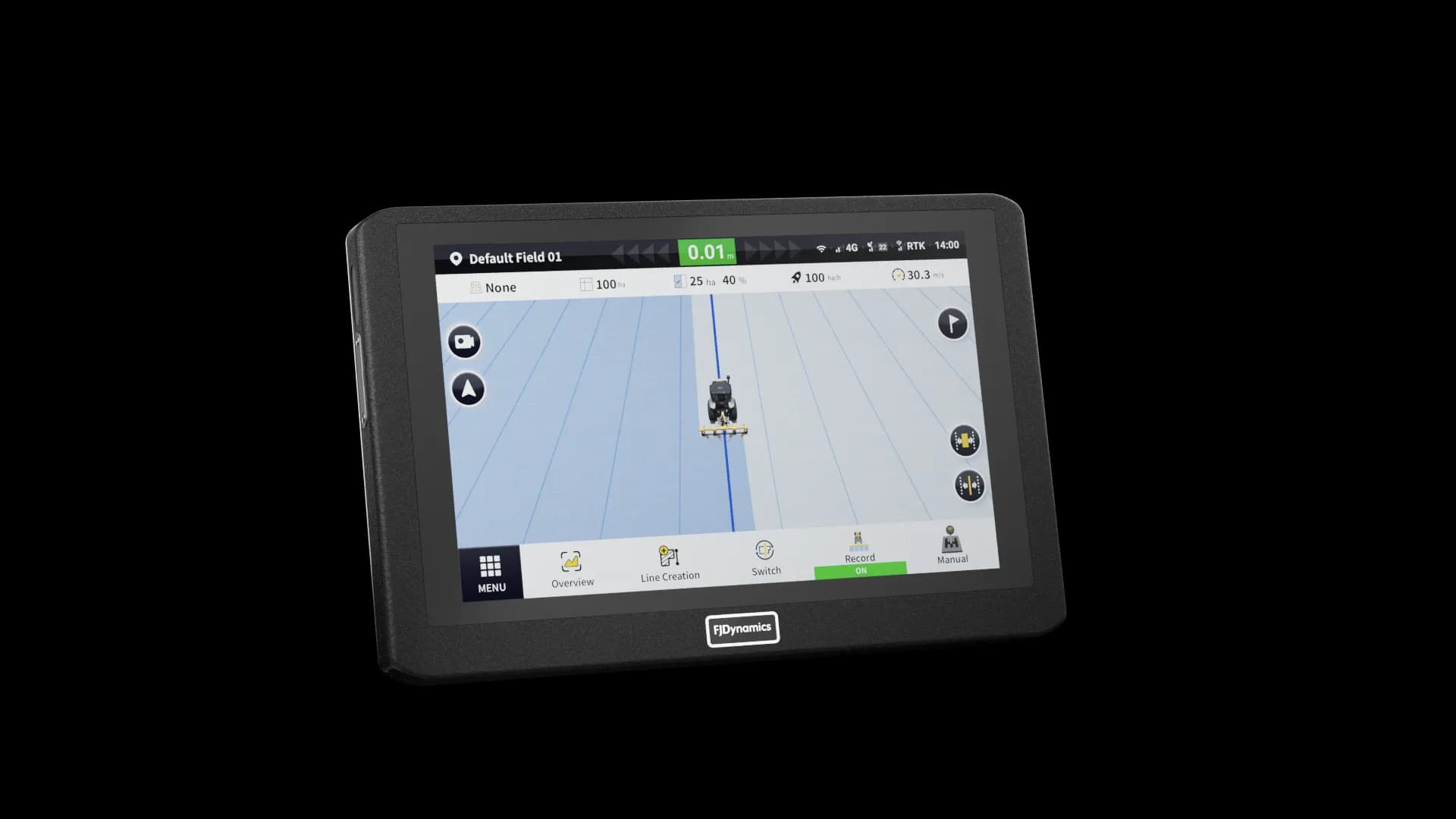

Monitor	10-inch touchscreen
Accuracy	2.5 cm (RTK), decimetre-level (free PPP / SBAS)
Operating speed	0.1–26 km/h
ISOBUS	AEF-certified VT and TC
U-turn modes	Smart, Ω-shaped, fishtail
Data transfer	USB (SHP, ISOXML), farm management sync

Pricing depends on your tractor, base station setup, and accessories. Request a quote and we'll spec the right kit for your operation. Stepping up? Compare the AT2 Max and AT2 Ultra, or see the full autosteering range.
