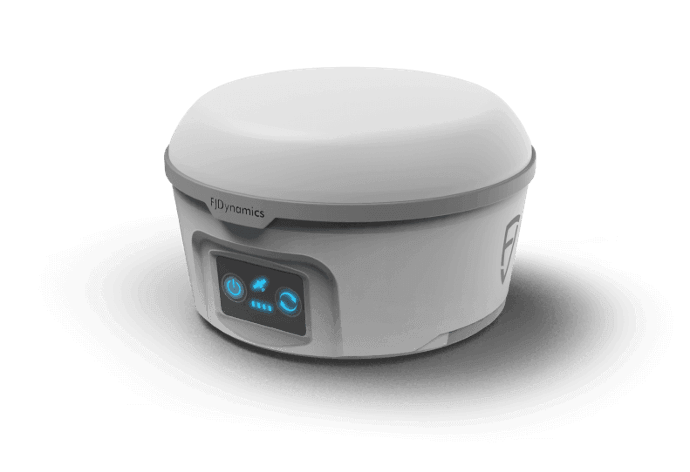

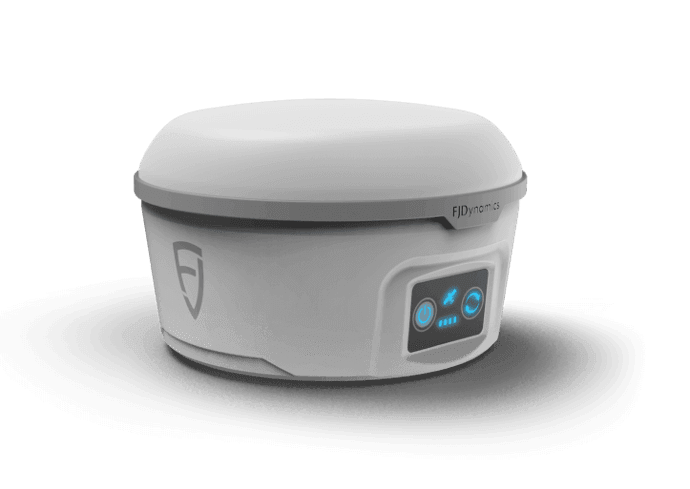

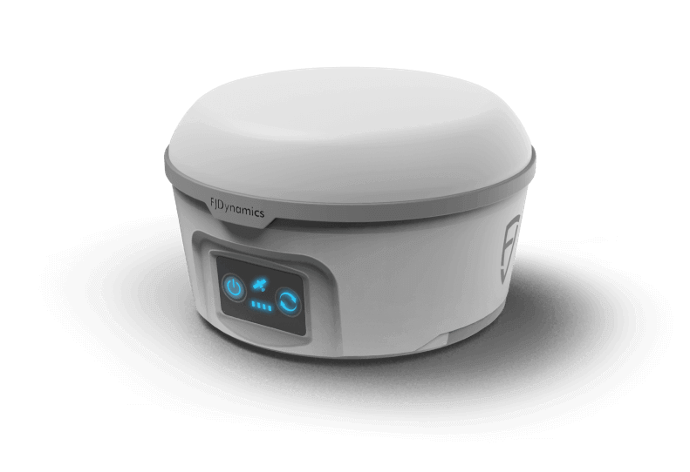

FJD Satellite Navigation Base Station

Real-time signal corrections via satellites. The FJD Satellite Navigation Base Station broadcasts radio RTK correction signals so your positioning and navigation systems hit centimetre-level accuracy: 2.5 cm positioning when paired with an FJD autosteering kit for precision agriculture, or a 3D excavator guidance system for digital construction.

Centimetre-level 3D positioning

The station provides real-time differential information for multiple machines at once, delivering centimetre-level 3D positioning and precise orientation over a 5 km radius where there's no interference or shielding.

Global signal coverage

It receives signals from 16 frequency bands across 5 satellite navigation systems: GPS, GLONASS, BeiDou, Galileo, and QZSS. A built-in anti-interference, high-gain antenna and high-performance receiver pull in more satellites through automated channel detection, cutting user setup steps.

Quick setup, modular design

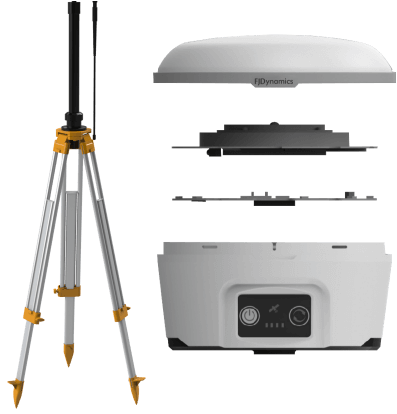

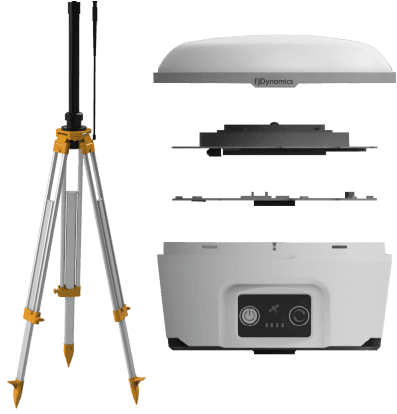

IP65 industrial protection suits all outdoor conditions, and setup is rapid once you've picked the right spot. The system is modular: the base station module handles positioning, the bracket keeps the antenna clear for strong signals, and an optional antenna stand adds an external antenna for even stronger reception.

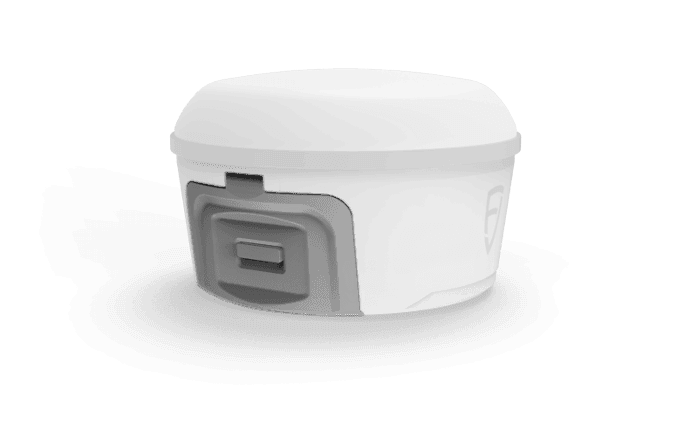

Removable dual battery

Dual batteries give 12 hours of runtime, and AC power supports hot plugging, so you can swap a battery without powering off. Continuous operation, guaranteed.

Specifications

RTK accuracy	1 cm + 1 ppm plane, 1.5 cm + 1 ppm elevation
Satellite tracking	624 channels; BDS, GPS L1/L2, GLONASS L1/L2, Galileo E1/E5b, QZSS L1/L2
Coverage	5 km radius (interference-free)
Update rate	1-20 Hz; initialisation under 10 seconds, recapture under 1 second
Battery	Dual 5200 mAh (10400 mAh total), 12 hours, hot-swappable, QC3.0 fast charge
Build	178 x 110 mm aluminium alloy, IP65, -40°C to +65°C operating
