FJD N10 CORS System
Get a QuotePositioning Infrastructure
FJD N10 CORS System
24/7 centimetre corrections, served over the internet to every NTRIP rover.
- horizontal RTK accuracy (+1 ppm)
- 0.8cm
- year-round service availability
- 99.9%
- concurrent users per server
- 10,000
- battery backup on power loss
- 24 h+
FJ Dynamics
Gallery, options, and pricing
Talk to a real operator: 1300 916 075
In depth
Engineered for the long day
A new way to locate the world. The FJD N10 CORS System provides 24/7 high-precision correction data services over the internet. Its N10 GNSS reference receiver has strong anti-interference capability and supports GPS, GLONASS, Galileo, BeiDou, and QZSS, a built-in battery keeps it running through power loss, and the FLBS management platform administers base stations and NTRIP accounts. Best suited to areas with good network coverage.
Multi-satellite, multi-frequency, centimetre-level
Multi-satellite and multi-frequency data processing gives strong anti-interference performance, accurate positioning, and stable operation with any NTRIP-compliant rover: autosteering, survey gear, machine control, or drones.

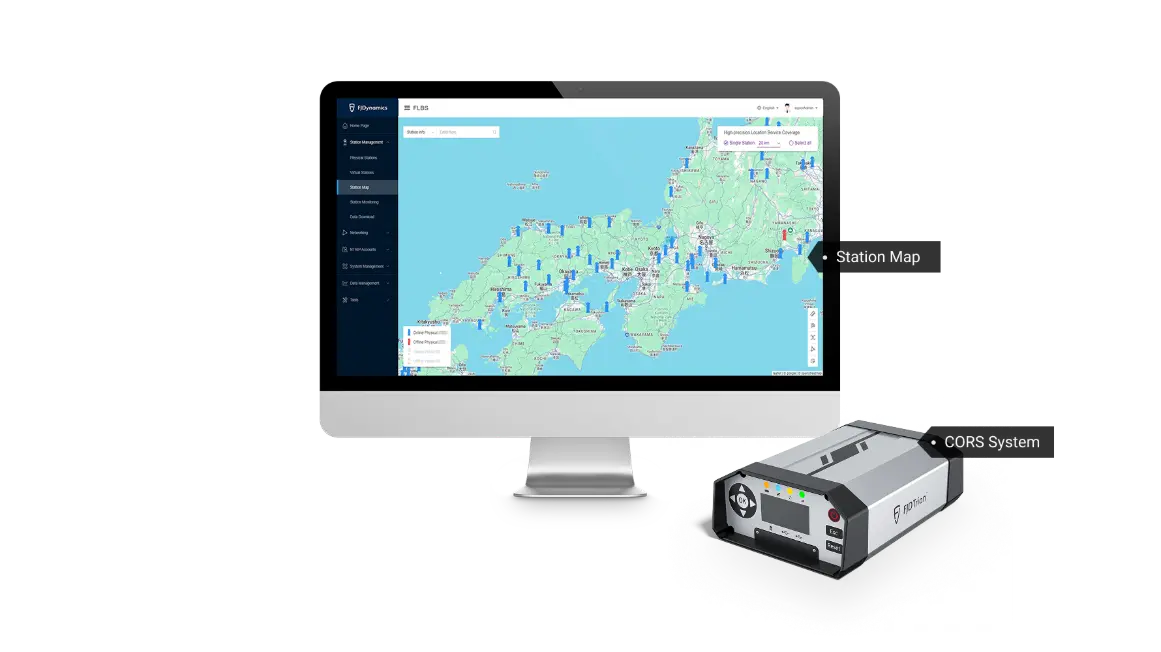

FLBS management platform
FLBS manages reference stations and users with mature VRS technology, 10,000 concurrent users per server, and 99.9% availability year-round. Email and phone alerts flag offline stations, NTRIP account changes, and ionospheric activity before they become downtime.

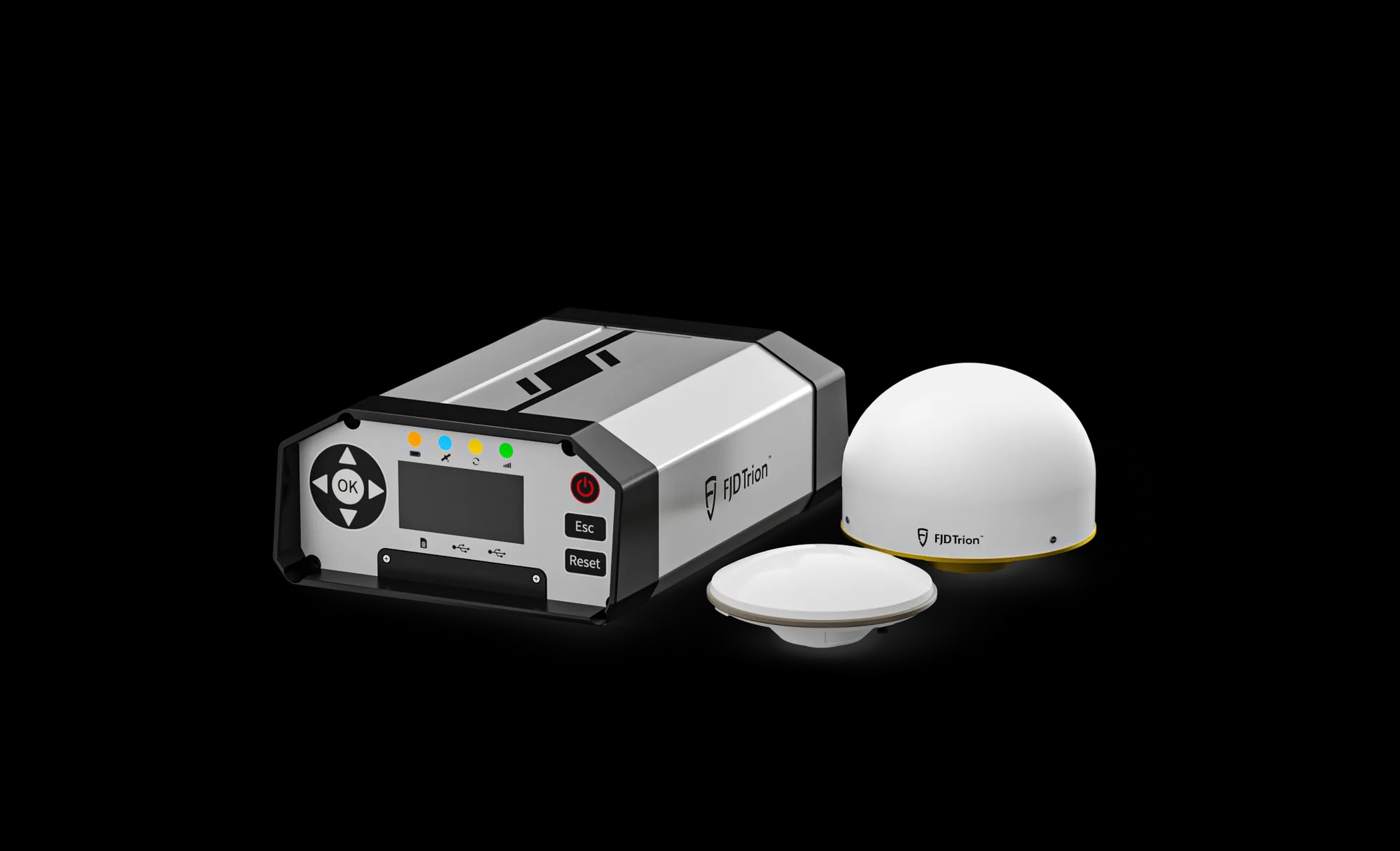

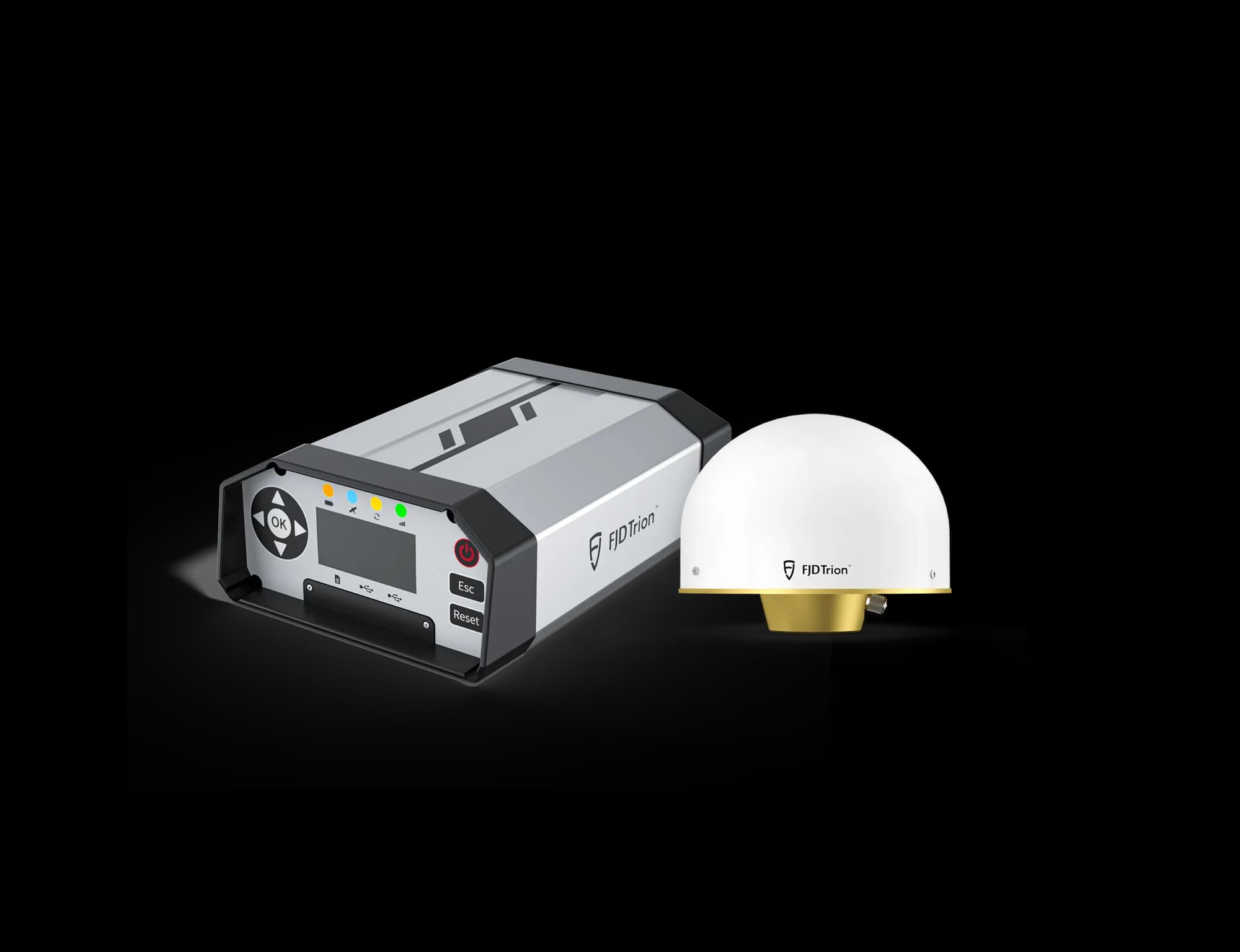

Main hardware

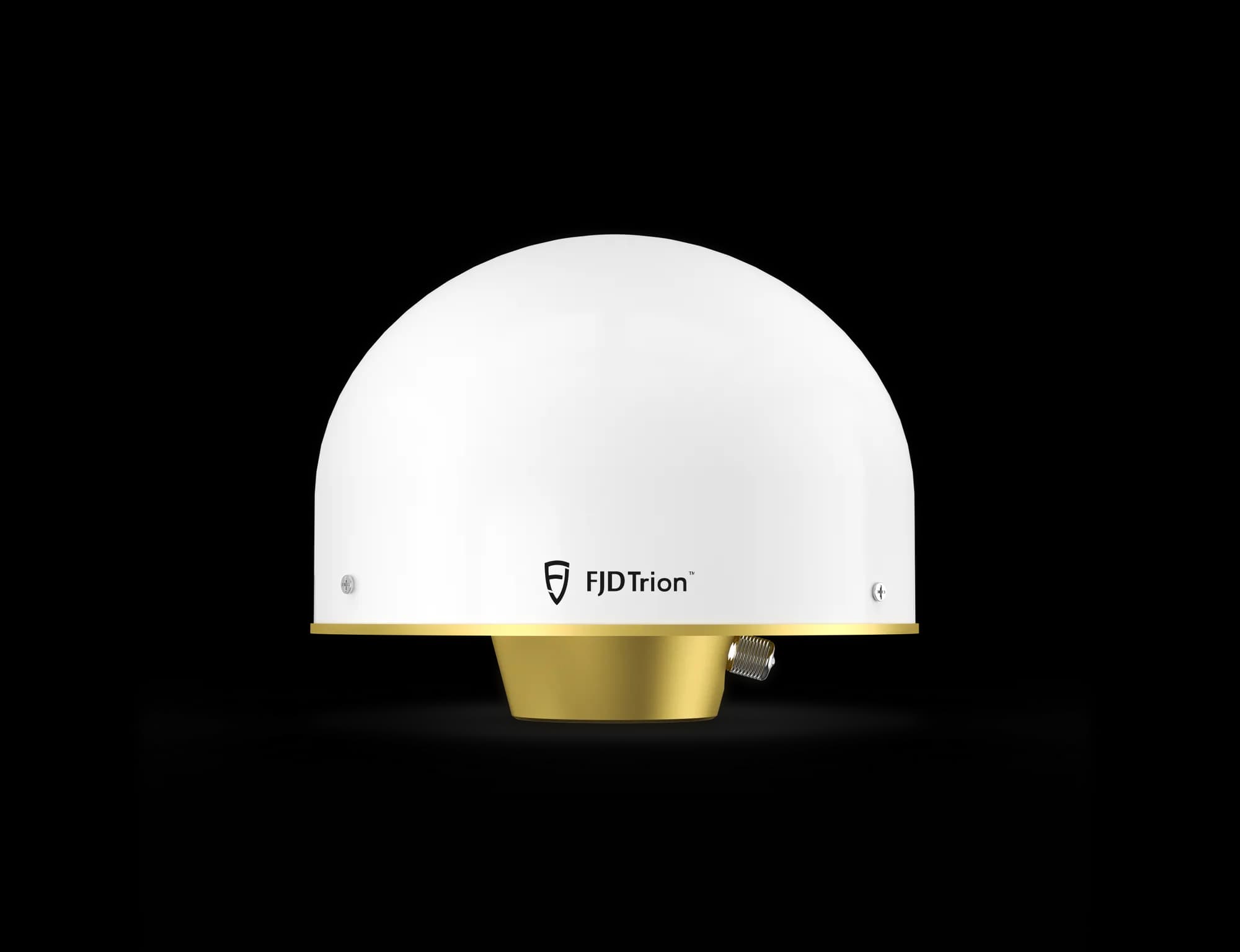

The system pairs the N10 GNSS reference receiver with a CGX611A 3D choke ring antenna (±1 mm phase centre error) for clean, repeatable reference signals.
Specifications
| RTK accuracy | 0.8 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical (RMS) |
| Static differential | 2.5 mm + 1 ppm horizontal, 5.0 mm + 1 ppm vertical (RMS) |
| Channels | 1408; GPS, BDS, GLONASS, Galileo, QZSS |
| Connectivity | 4G (global, Micro SIM), Wi-Fi, Ethernet, USB-C, dual RS232 |
| Battery | Built-in 22,000 mAh, over 24 hours backup, remote restart |
| Network RTK | Under 2 cm horizontal within network, station spacing 30-120 km |
| Build | 220.7 x 152.1 x 81.7 mm, 2.08 kg, IP67, -40°C to +65°C |
