FJD ATS Precision Spray Autosteering System

Make every drop count. The FJD ATS combines smart autosteering path planning with precise section and flow rate control, so the sprayer steers itself on the optimal path while applying exactly the target rate. Less overspray, fewer skips, and a 10-15% pesticide saving from section control alone.

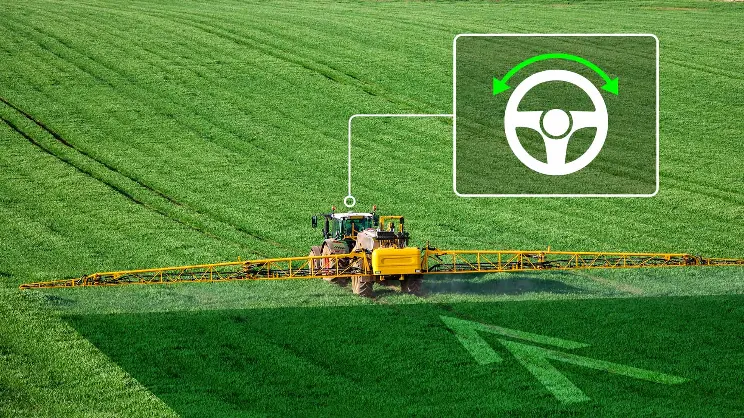

Precise spraying driven by autosteering

Built on FJD's time-tested autosteering technology, the vehicle sprays accurately while steering itself on the planned path. That cuts operator fatigue, minimises crop damage compared with manual driving, and lets beginners work as efficiently as veterans.

Consistent rate application

Flow rate is regulated in real time from vehicle speed and the target application rate, keeping application per unit area consistent even as terrain changes your speed.

Automated section control

Sprayer sections start and stop automatically as the boom enters or leaves worked areas, applying the optimal amount exactly where it's needed. Overlap rate is customisable per section, and an automated stop-spray cuts off below a preset speed (down to 1 km/h) to prevent over-application at headlands.

Flexible spraying control

Adjust dosage in real time and switch between manual, semi-auto, and fully automatic spray modes with one touch.

Unparalleled precision, unwavering efficiency

• Optimal path planning: rows spaced to 2.5 cm accuracy to minimise overlaps and skips
• Consistent path reuse: reuse previous paths for recurring jobs
• High-speed precision: holds accuracy at speeds up to 26 km/h

Three configurations

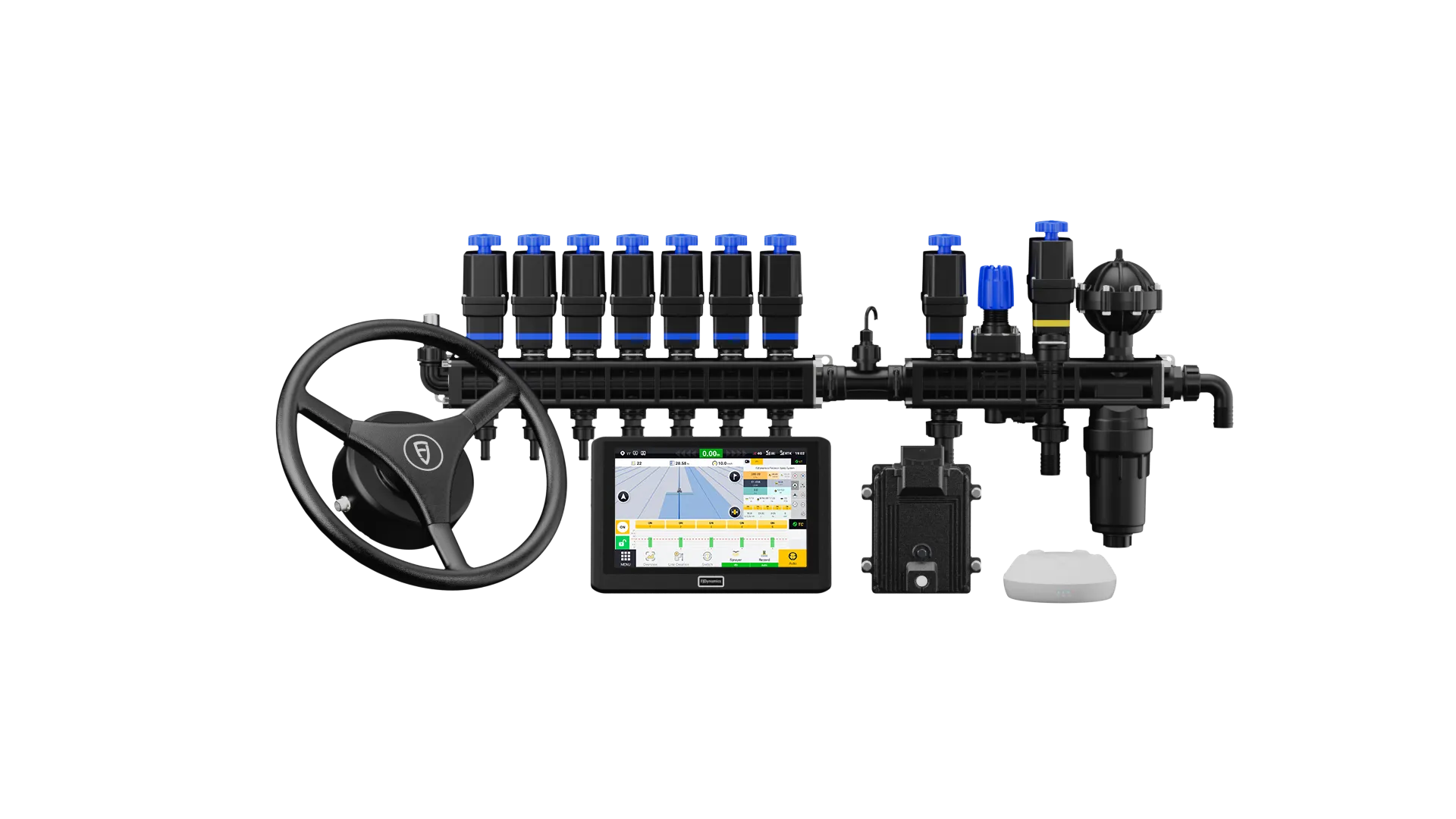

• FJD ATS: the complete precision spray autosteering system

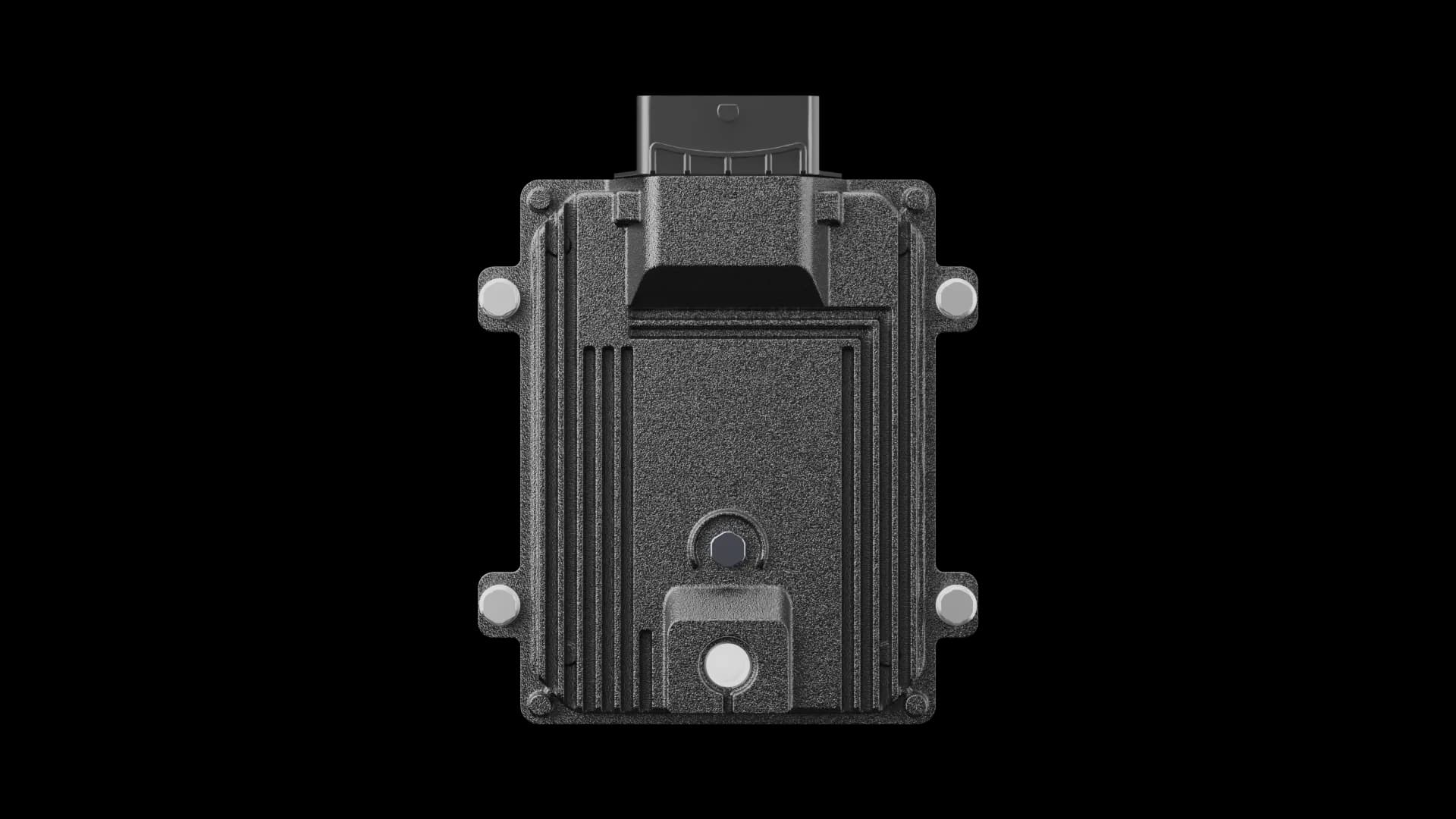

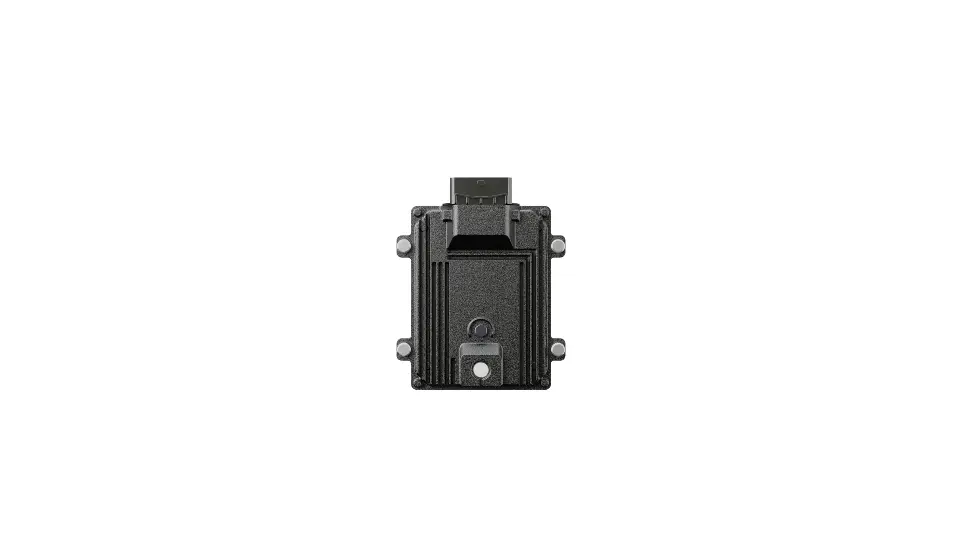

• FJD ATS-C: a precision sprayer controller that fits integrated valves from brands like ARAG and GEOline, in ISOBUS and non-ISOBUS variants
• FJD ATS-V: upgrades an existing FJD AT1 or AT2 autosteering setup with precision spray control

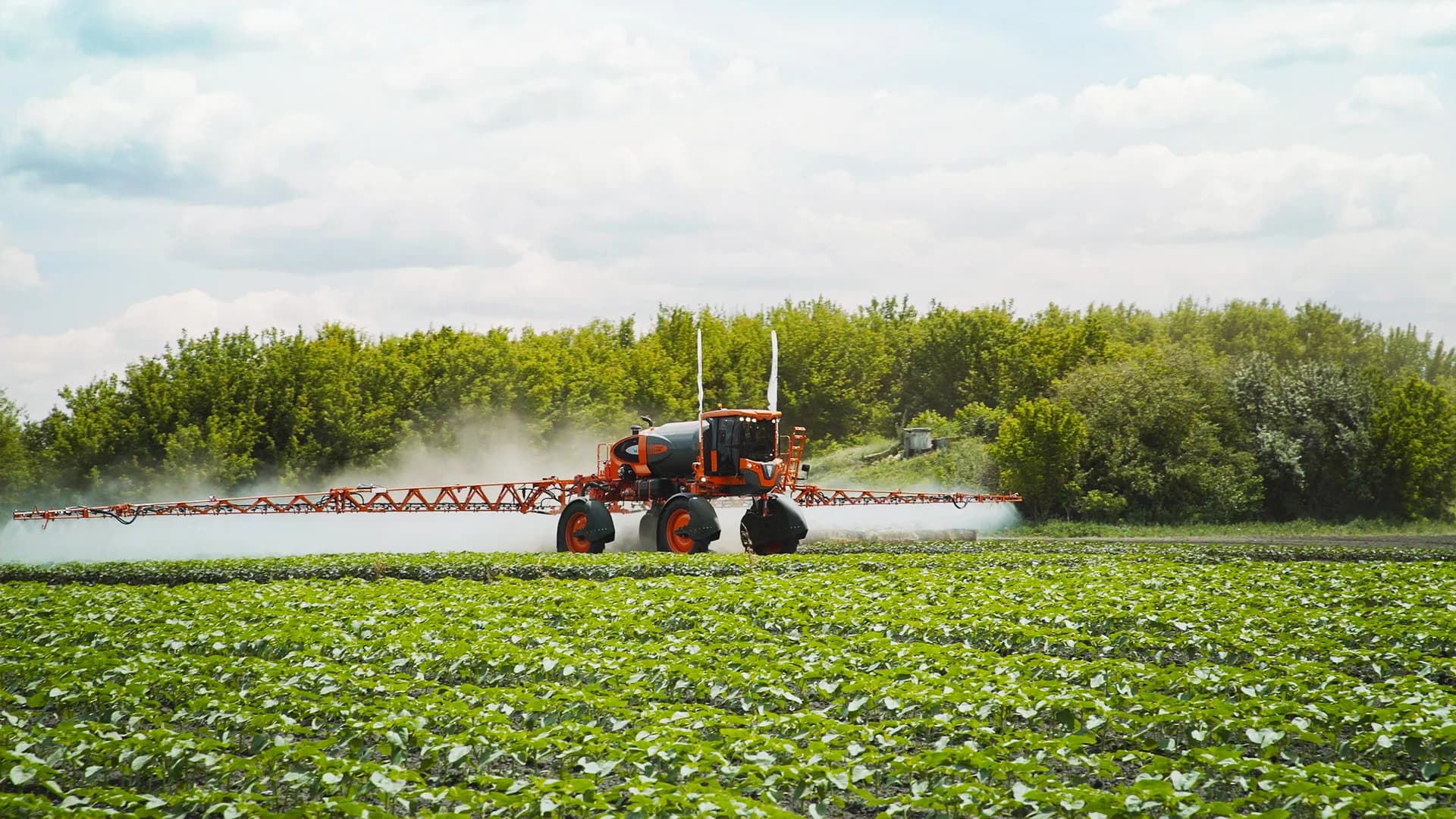

Proven in the field

In a 1,700-acre soybean weed control program (285 L/ha target rate at 8 km/h), the ATS cut pesticide usage by 11%, from 4.5 kg/ha to 4 kg/ha, saving 344 kg of chemical in total.

Specifications

Accuracy	2.5 cm row spacing (RTK), up to 26 km/h working speed
Control terminal	10.1-inch 700-nit touchscreen, 275x180x40 mm, 9-36 V, IP65
GNSS receiver	Full-constellation GPS, GLONASS, BDS, Galileo, QZSS; SBAS WAAS/EGNOS/MSAS; IP66
Electric steering wheel	20 Nm (12 V) / 30 Nm (24 V), IP65

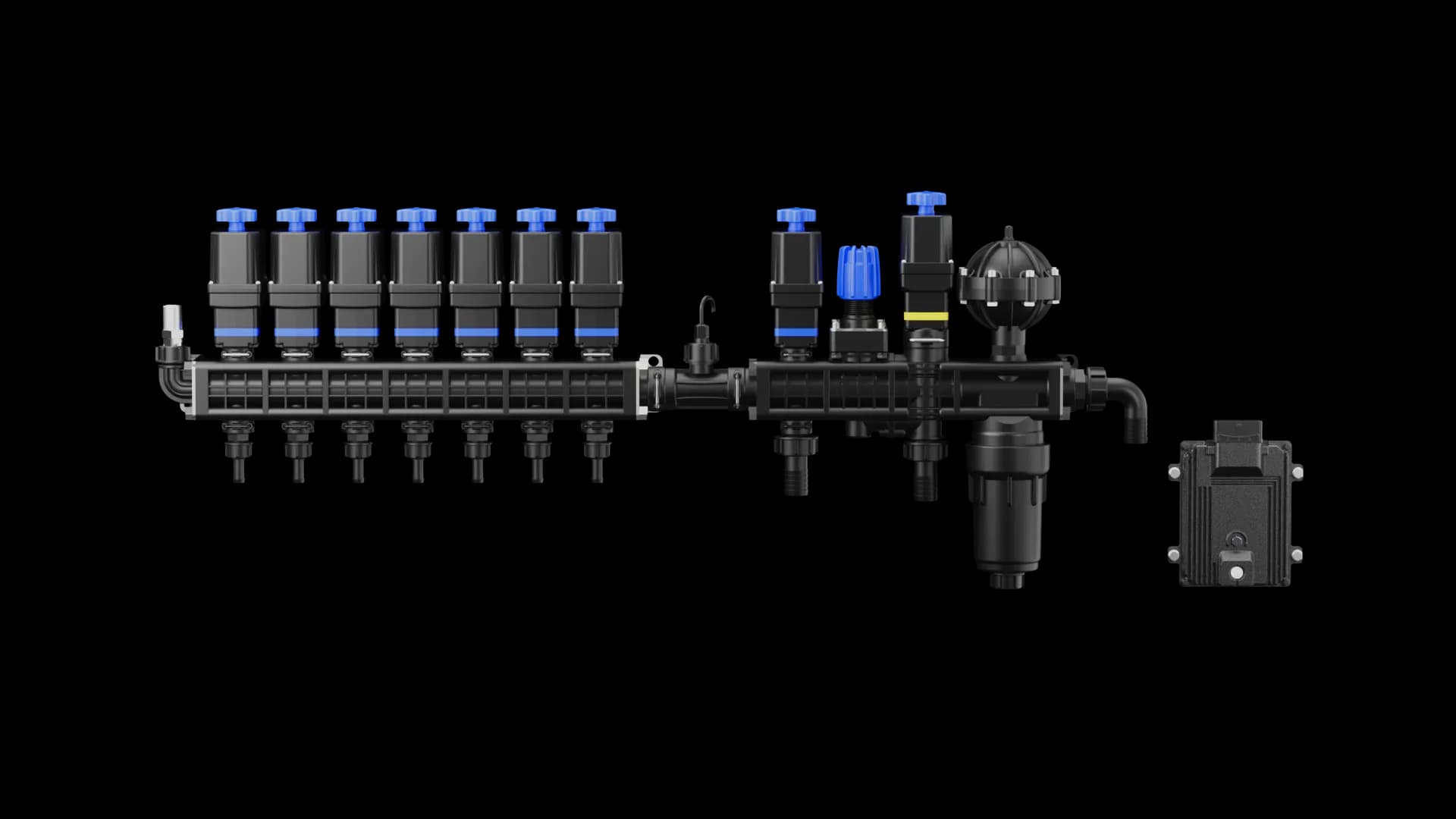

Integrated valve	1-7 boom sections, 0-200 L/min flow, 1.0-12 bar operating pressure
Sprayer compatibility	Self-propelled, mounted, and trailed sprayers

Want nozzle-by-nozzle control? See the FJD ATS Ultra PWM spray tip system.
