FJD Acre Recording Sensor
Get a QuoteFJD Accessory

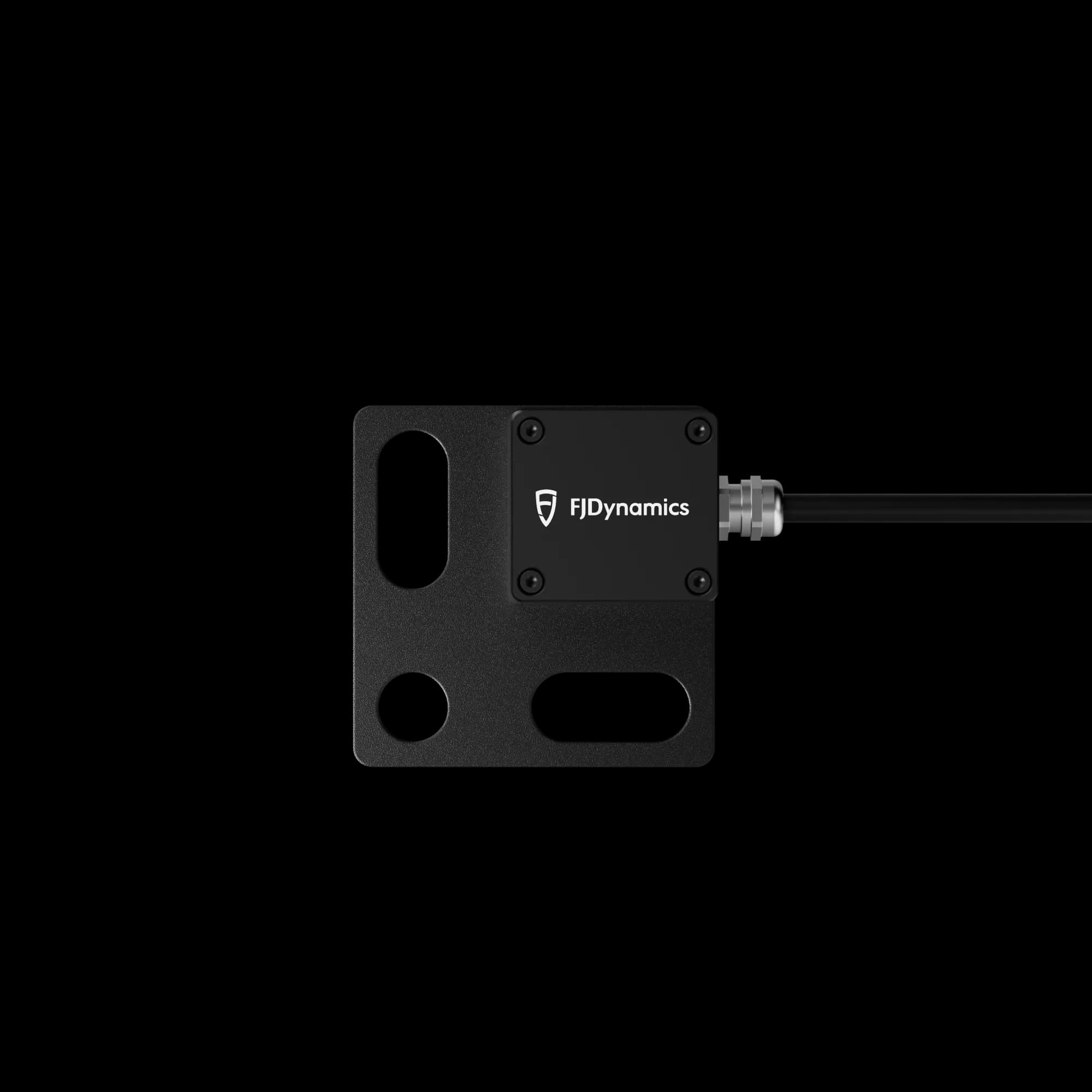

FJD Acre Recording Sensor
Records only the ground you actually work, automatically.
- Static attitude accuracy (RMS)
- 0.1°
- Maximum update rate
- 500Hz
- Gyroscope range
- ±1000°/s
- Power draw at 5 V
- 0.3W
FJ Dynamics
Gallery, options, and pricing
Available nowGenuine FJ Dynamics
Price on application
Talk to a real operator: 1300 916 075
In depth
Engineered for the long day
Smart sensing, accurate counting. The FJD Acre Recording Sensor detects the lift and drop of your implement and starts or stops area recording automatically. No missed spots, no counting ground you didn't actually work, and no manual record-keeping. Non-contact angle sensing and industry-grade protection make it an easy fit on many different guidance systems.
In the field
- Seeding: recording starts automatically when the seeder goes down, cutting missed spots and manual notes
- Tillage: recording stops the moment the implement lifts, keeping coverage data honest
Specifications
| Static attitude accuracy | 0.1° RMS (roll/pitch) |
| Gyroscope range | ±1000°/s (optional ±250°/s) |
| Update rate | 100/200/500 Hz selectable |
| Power | 5 V, 0.3 W |
| Operating temperature | -20°C to +70°C |
Official documentation
Downloads
