DJI
Battery Slider Module (T100) BC.AG.SS001095
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

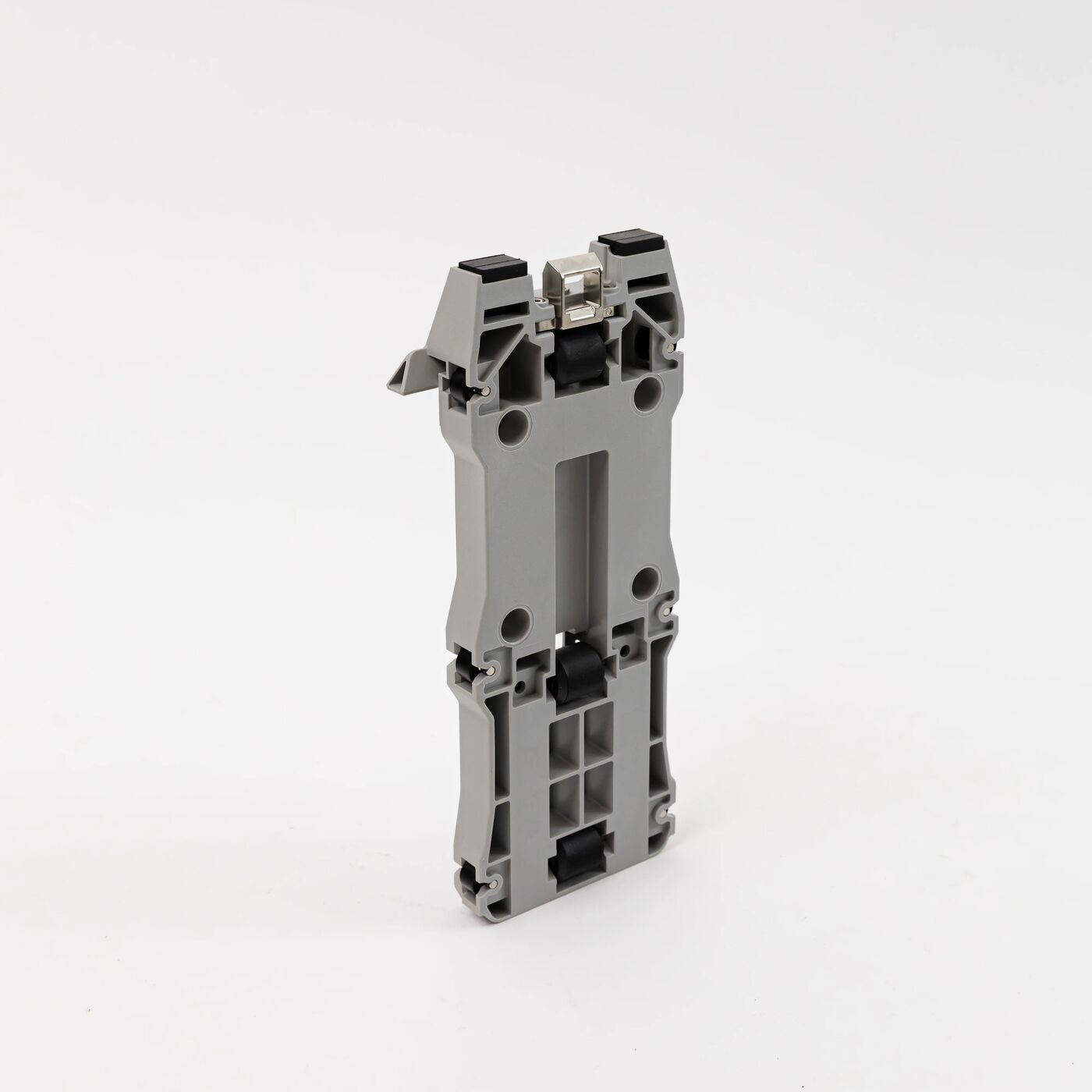

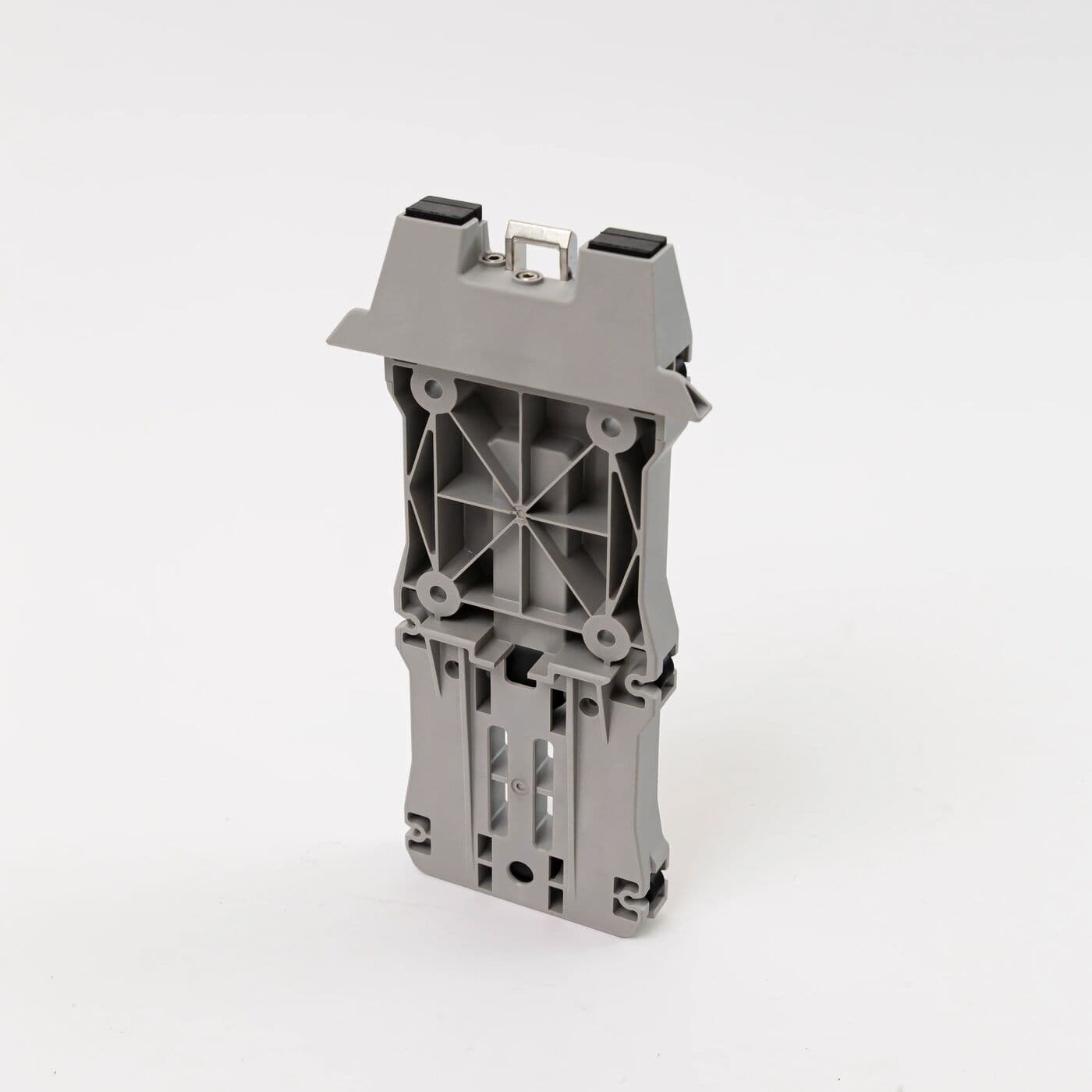

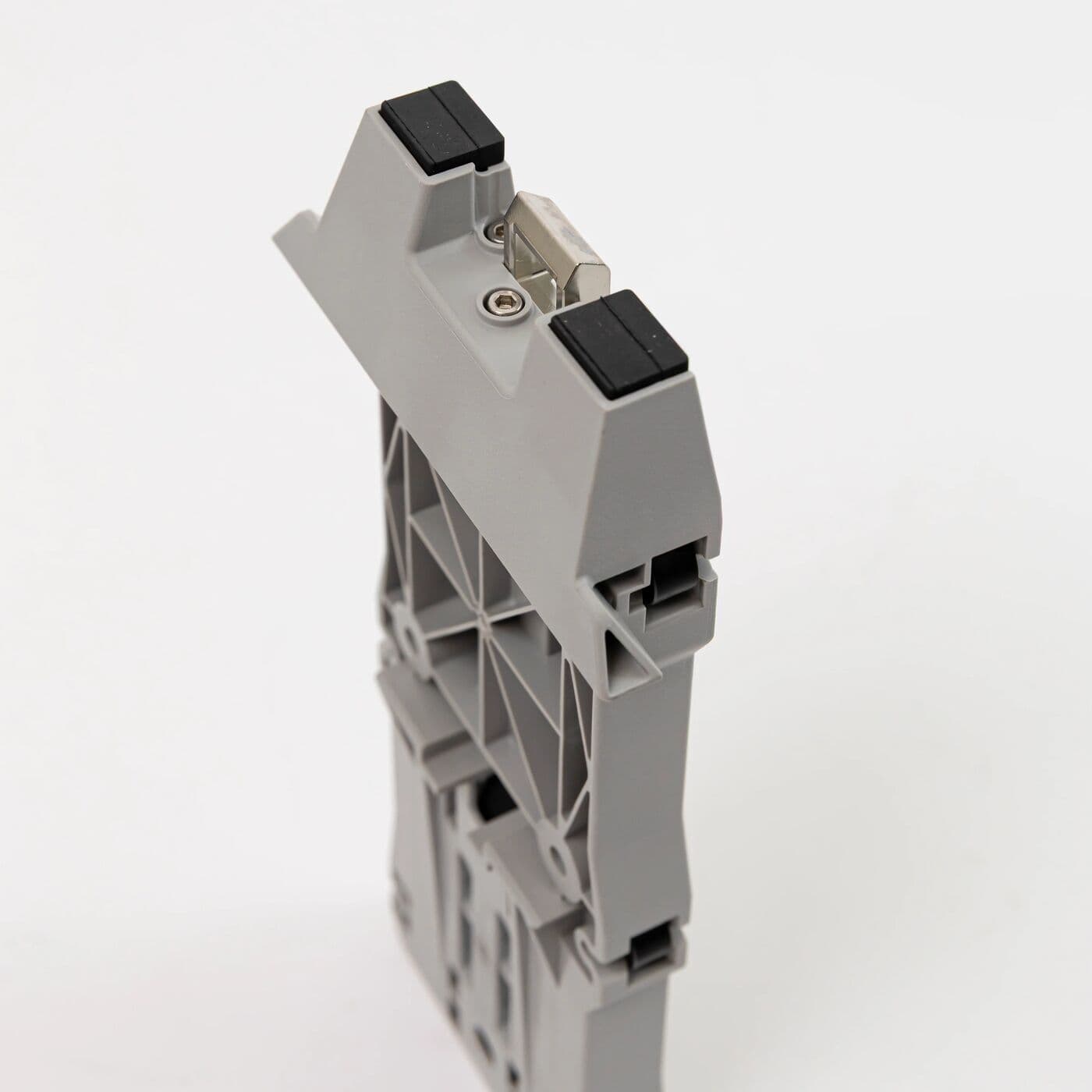

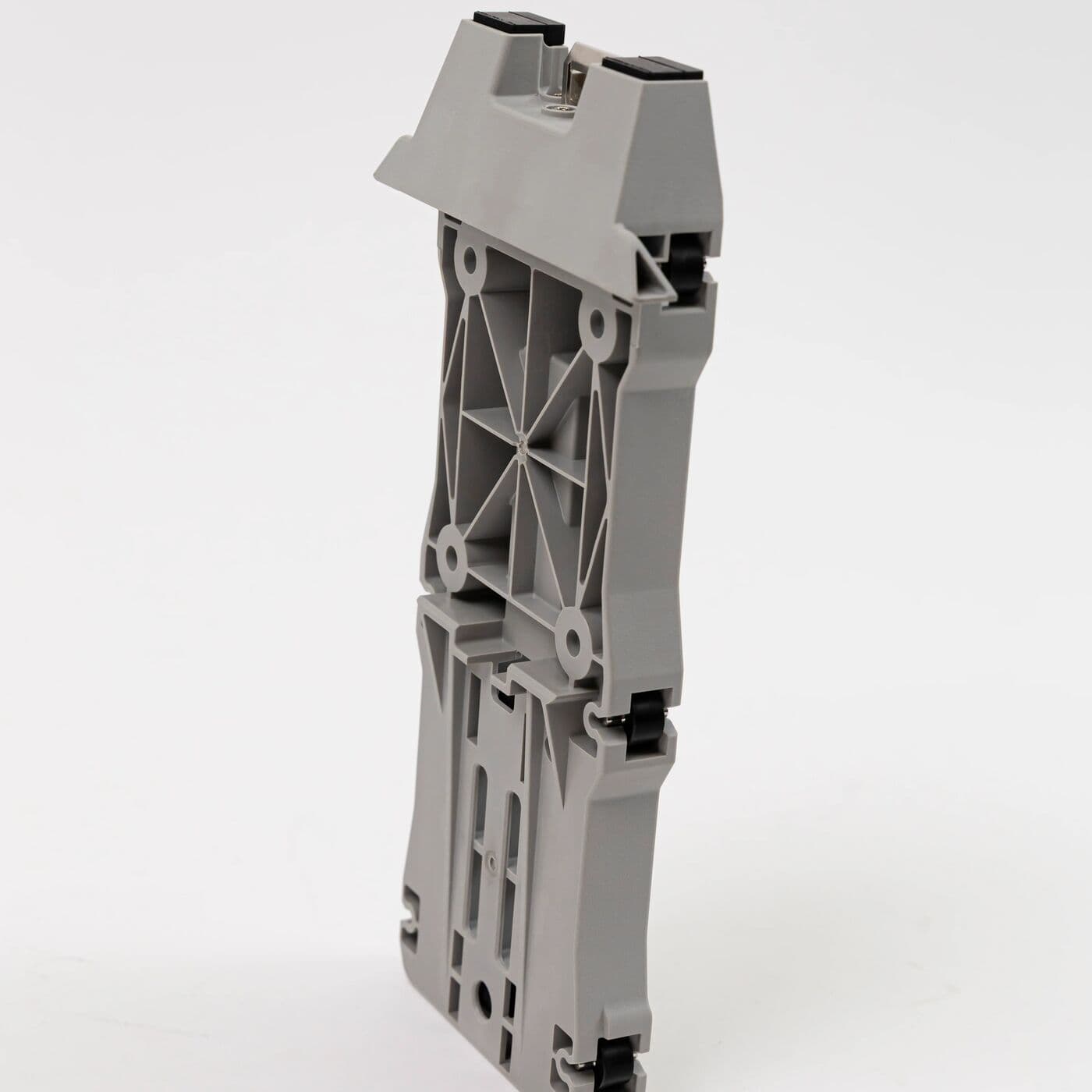

The battery slider module guides the flight battery in and out of the DJI Agras T100's middle and rear frame, so it takes some wear at every battery change.
| Part number | BC.AG.SS001095 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 17 |
DJI numbers it with the battery bracket rubber pad (18) and a screw (19). DJI's T100 maintenance schedule calls for routine checks of the battery slider: look for a rubber pad worn down to the plastic, a plastic side guard or side clip that is broken or missing, a roller that is missing, seized or has lost its rubber, a bent metal hook, or a battery that no longer latches as it should. The rubber pad at callout 18 has its own part number, so work out whether the pad or the module itself is worn before ordering.
A battery that is hard to fit or remove can also point to the power board connector, so check that at the same time. Keep grit and dried chemical off the slider.
