DJI
Throttle Cable - Cable Distribution Board-Spraying Module (T50) YC.XC.XX000997
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

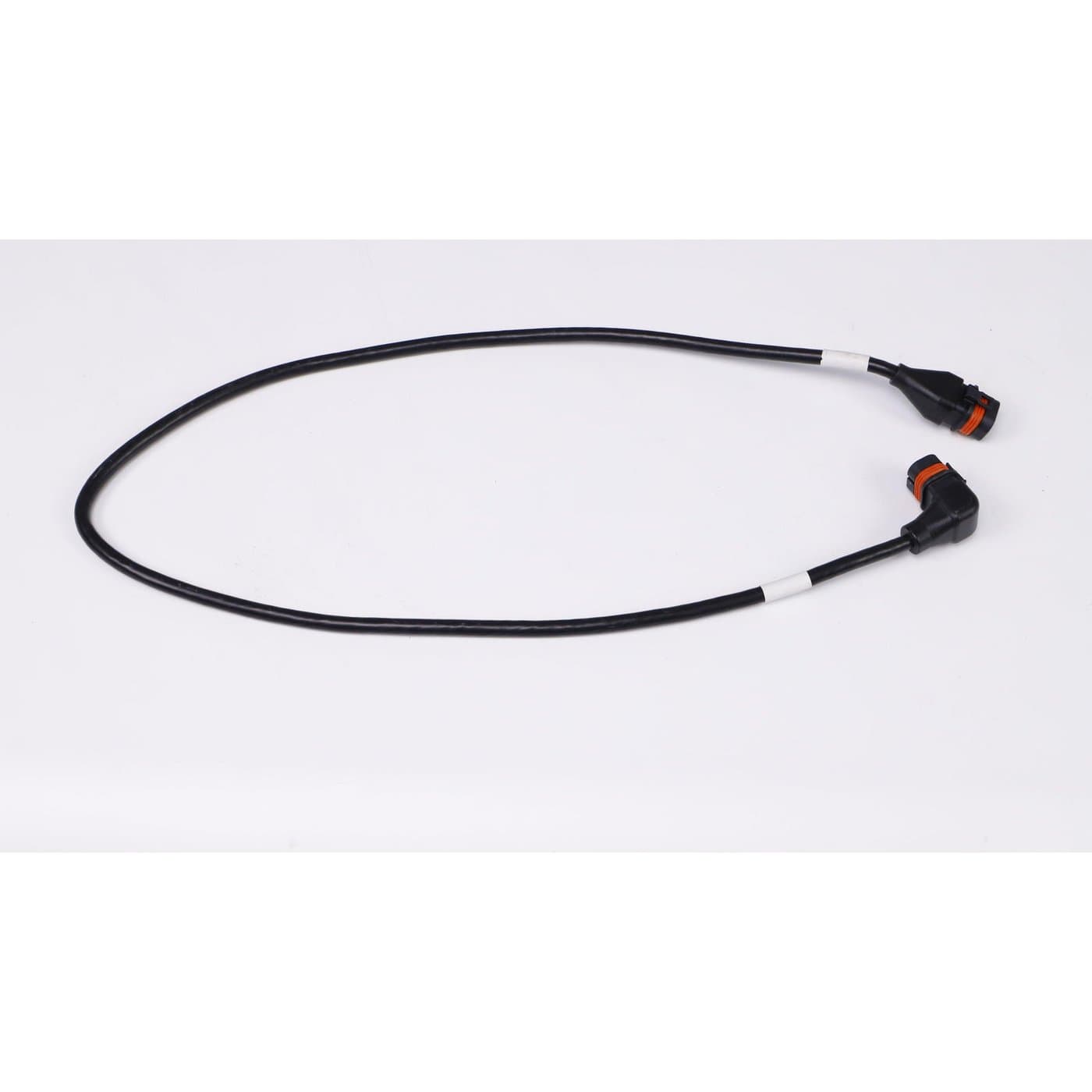

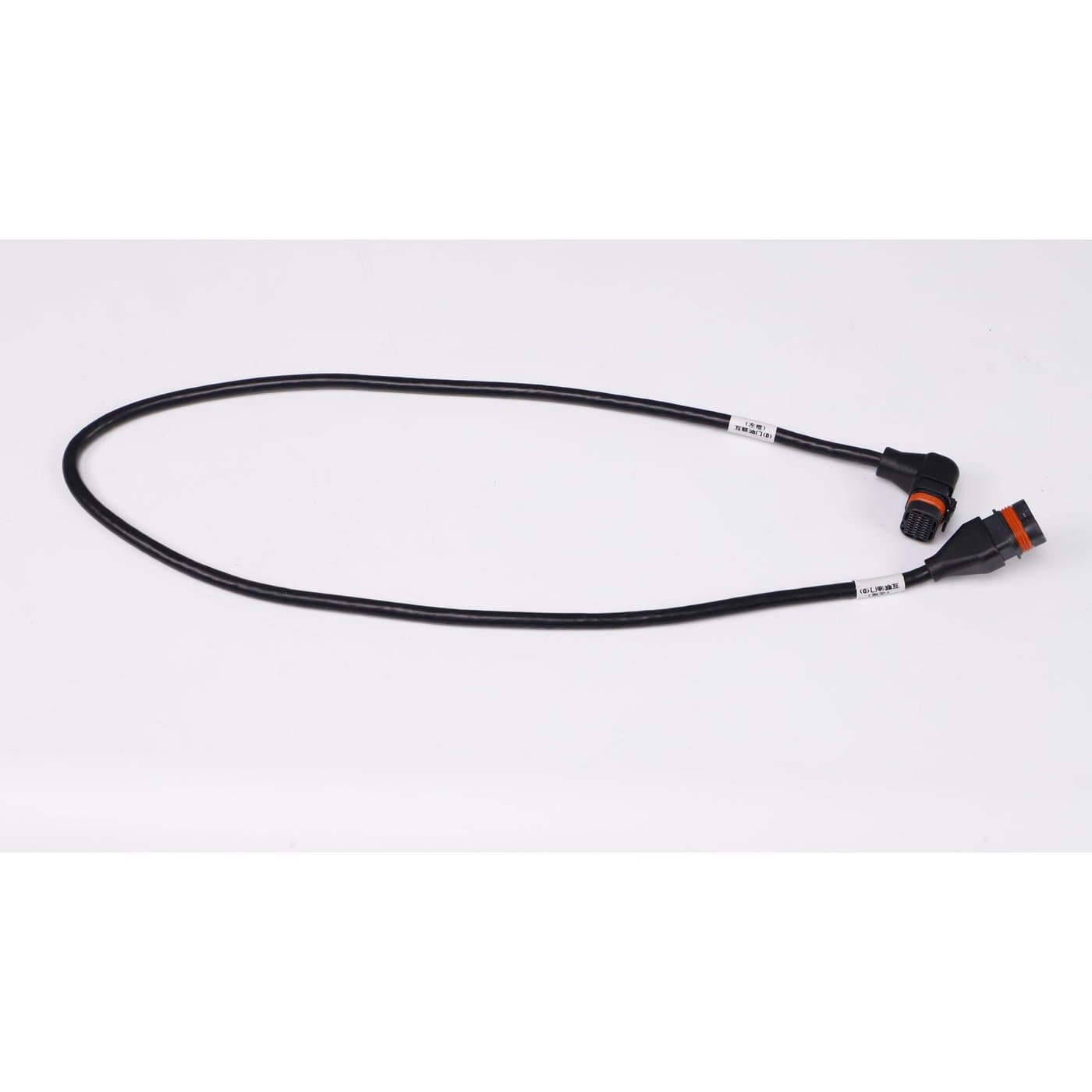

This throttle cable runs from the cable distribution board to the spraying module on the DJI Agras T50, carrying the throttle signal for the spray system. It is callout 4 on the T50 cable sheet.
| Part number | YC.XC.XX000997 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable, callout 4 |
If the spray side stops responding while the aircraft otherwise flies normally, inspect both plugs for bent pins, corrosion or a latch that has not clicked fully home. Dried spray mix on a connector can also stop it seating, so clean around it before refitting.
A second lead, the communicate cable (YC.XC.XX001009), joins the same two points, so read the code or label on the old cable before ordering. Replace this one if the sheath is cut, flattened or stiff with chemical.
