DJI
Communicate Cable - Cable Distribution Board-Spraying Module (T50) YC.XC.XX001009
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

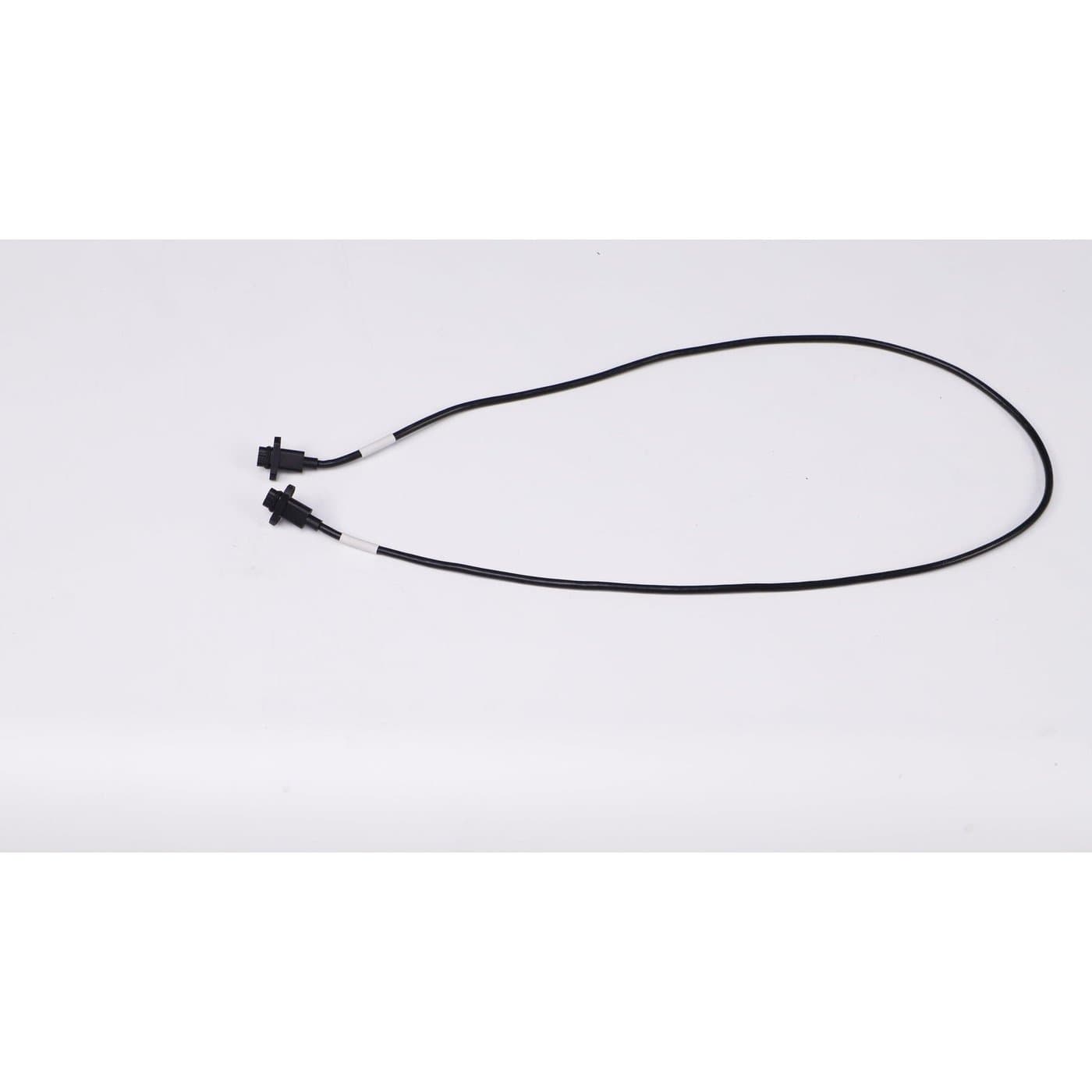

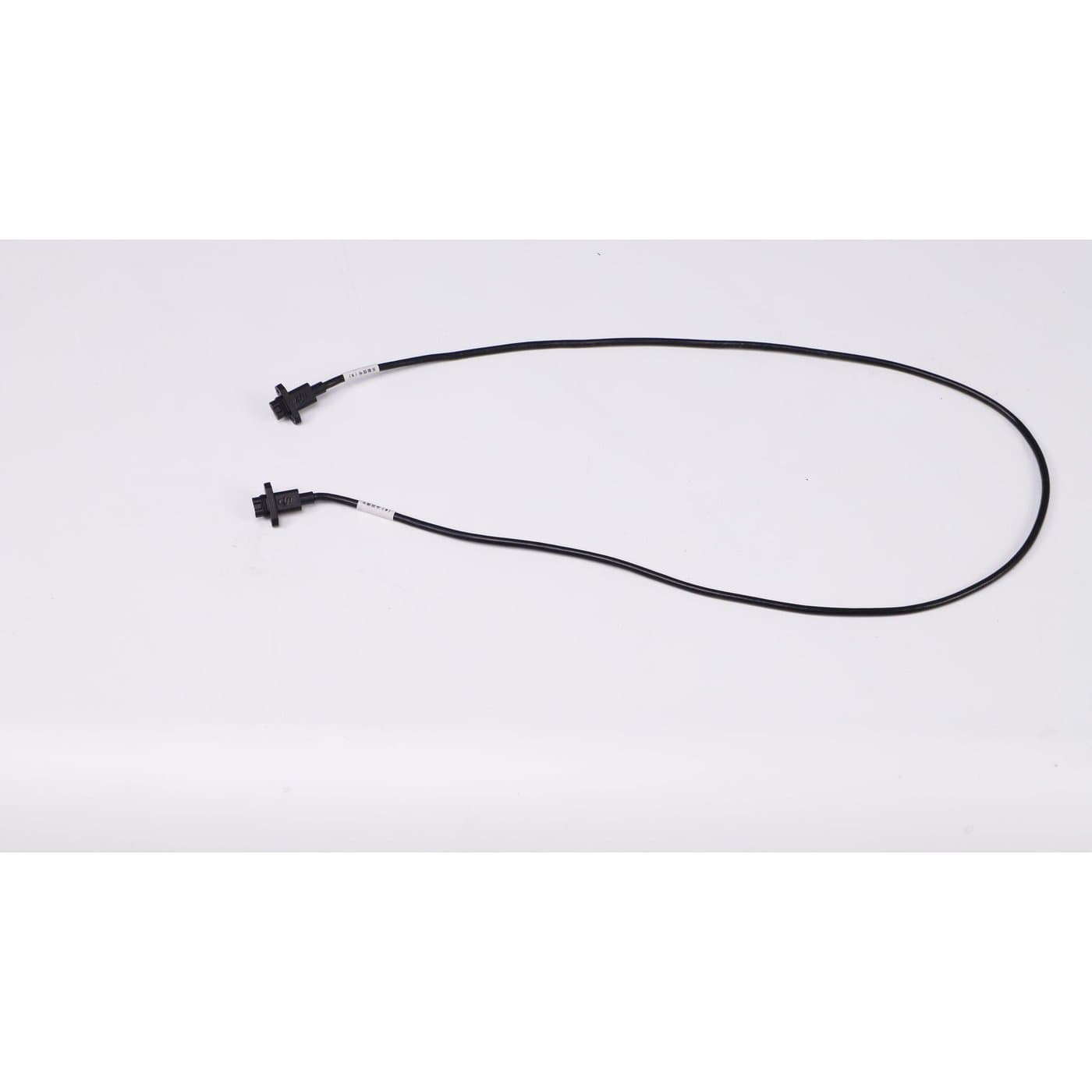

On the DJI Agras T50, this communicate cable is the data link between the cable distribution board and the spraying module. It is numbered 12 on the T50 cable sheet.
| Part number | YC.XC.XX001009 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable, callout 12 |
When the spraying module is not recognised, or spray functions drop in and out with communication warnings, the cause can be this cable or its plugs as easily as the module. Clean both connectors, check for bent pins or a broken latch, and reseat them before ordering larger parts.
The throttle cable, YC.XC.XX000997, links the same two points, so compare the code on the old cable with both listings. A cable with a split or crushed sheath should be replaced rather than taped up.
