Spray Lance Shaft Connector Shell - M2 & M4 (T100) YC.JG.ZS006808
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

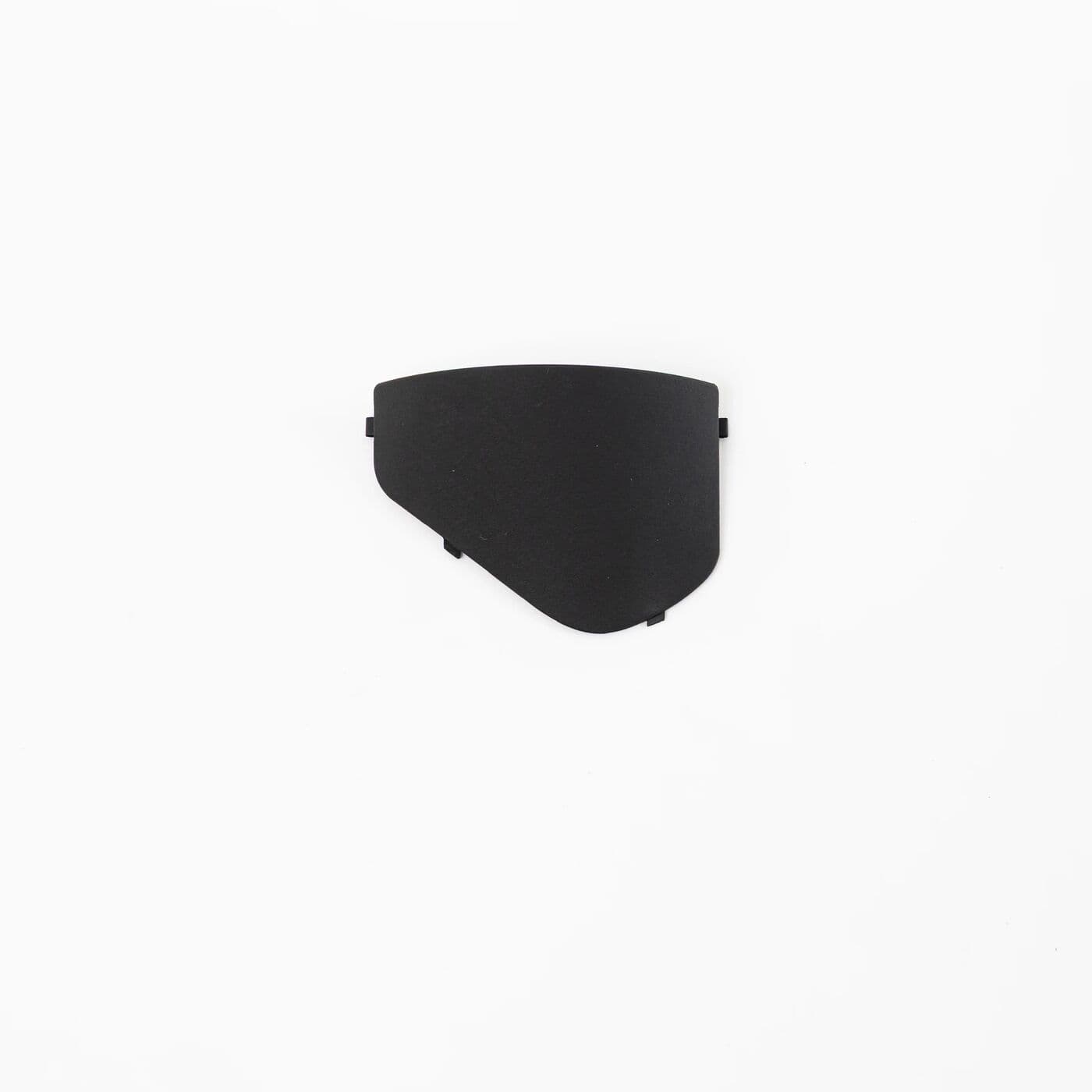

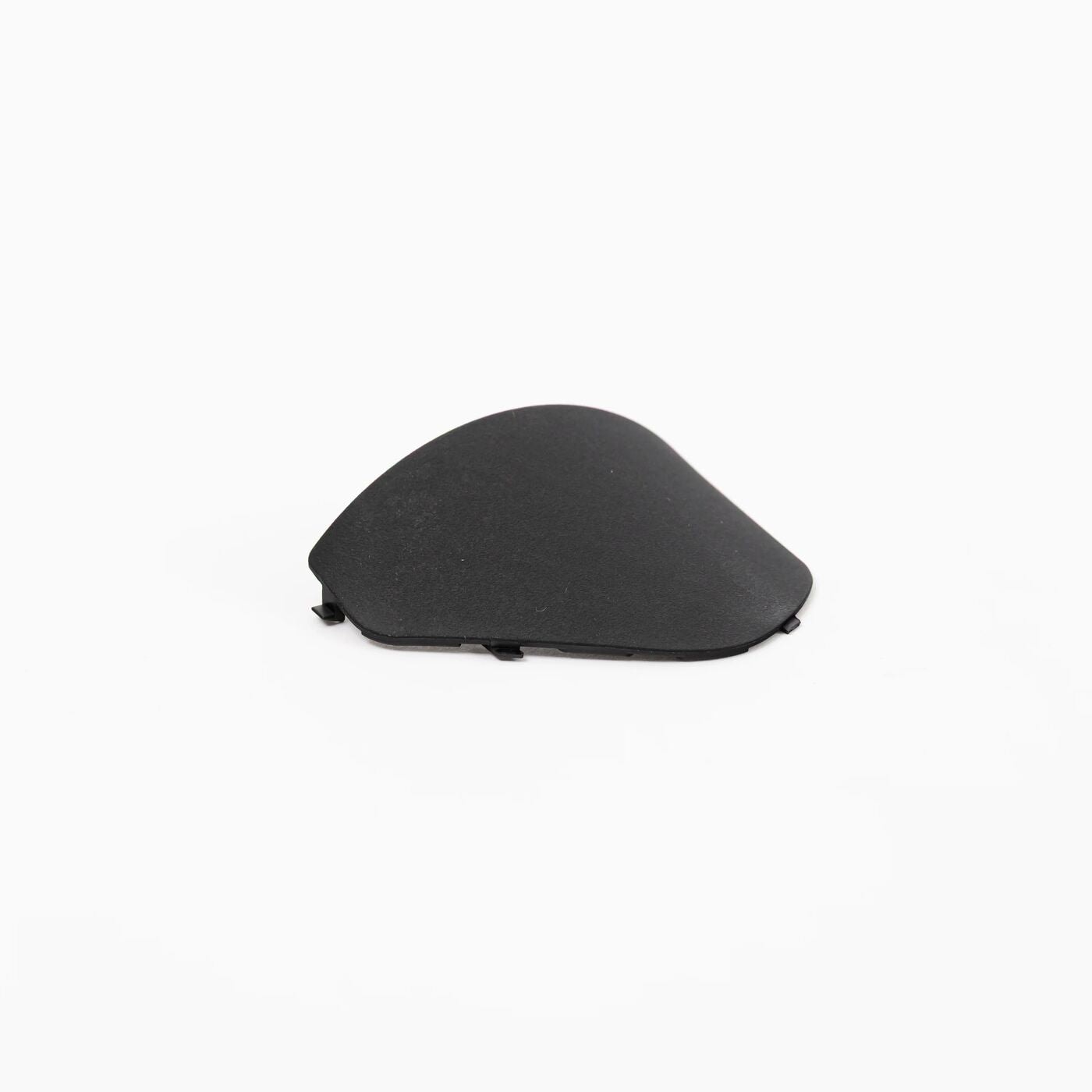

For spray lances on the M2 and M4 arms of a DJI Agras T100, this is the shell that encloses the lance shaft connector. DJI's spray lance sheet shows it at callout 21.
| Part number | YC.JG.ZS006808 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray lance, callout 21 |
Replace it when it rattles, sits proud of the connector, or has a crack you can see light through. Any of these lets chemical and grit reach the connector it is meant to shield.
DJI marks the T100's frame arms M1 to M4, with M1 and M2 at the front. The M1 and M3 shell is a different part, YC.JG.ZS006809; in DJI's parts photo it carries moulded M1 and M3 lettering, while no marking can be seen on this one, so go by the part number. After a heavy landing, check the shell on every arm that carries a lance, and replace the spray lance shaft connector underneath too if it has cracked.
