DJI

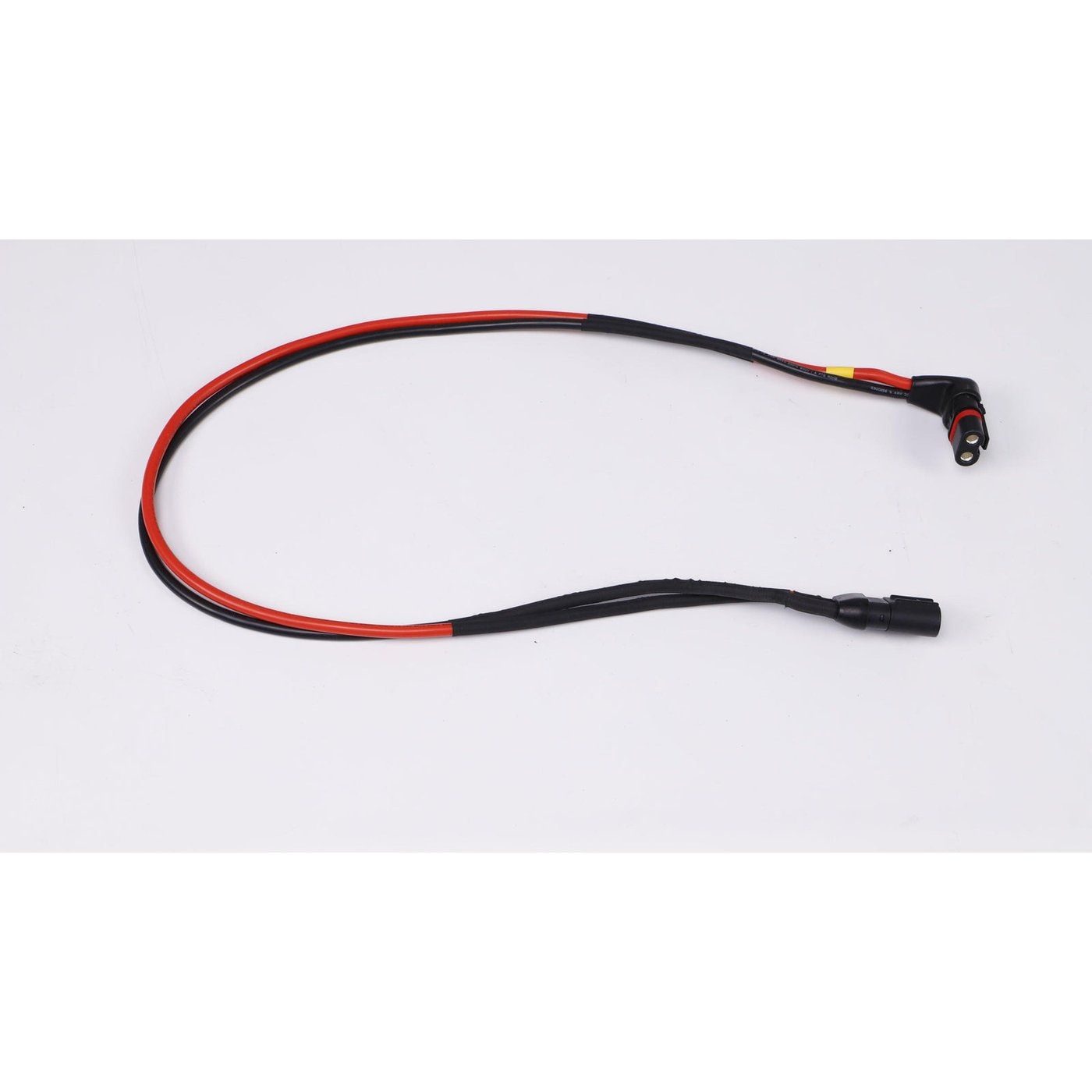

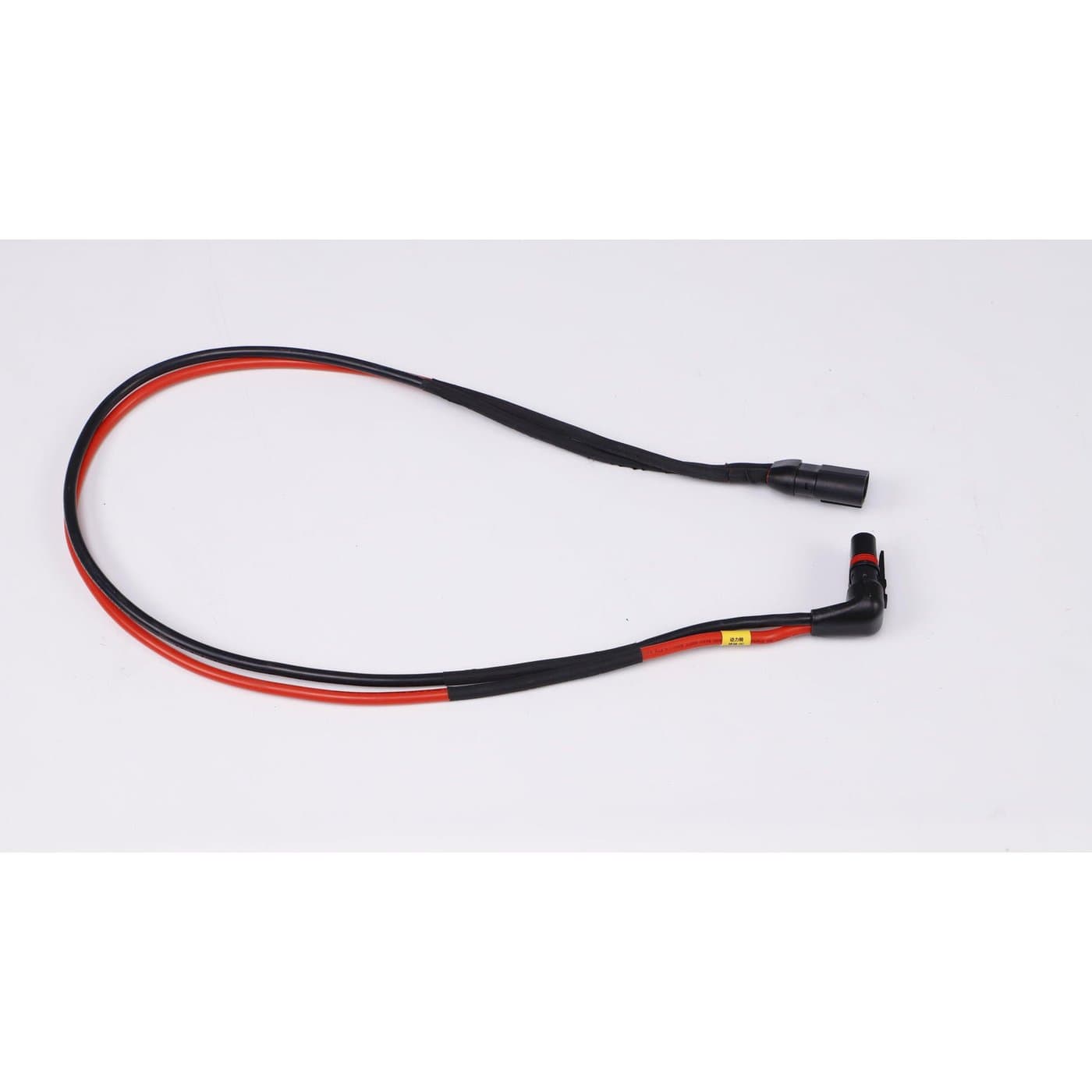

Front Arm ESC Power Adapter Cable (T50) YC.XC.DD000576
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This adapter cable feeds power to the ESCs in the front arms of the DJI Agras T50. The T50 cable sheet draws it twice, at callouts 3 and 9.
| Part number | YC.XC.DD000576 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable, callouts 3 and 9 |
Because it carries motor power, look for heat marks on the plug housings, a plug that no longer latches firmly, and insulation worn through where the cable passes the frame. A front motor that cuts out, or an ESC warning that comes and goes when the arm is flexed, can trace back to this cable, so check it before blaming the ESC.
As it appears twice on the sheet, work out which run is damaged before ordering. Hold the new cable with the propulsion cable clip (callout 2) so it cannot rub. The throttle cable at callout 4 serves the spraying module and is a different part.
