FJD NMEA 0183 Output Cable
Get a QuoteFJD Accessory

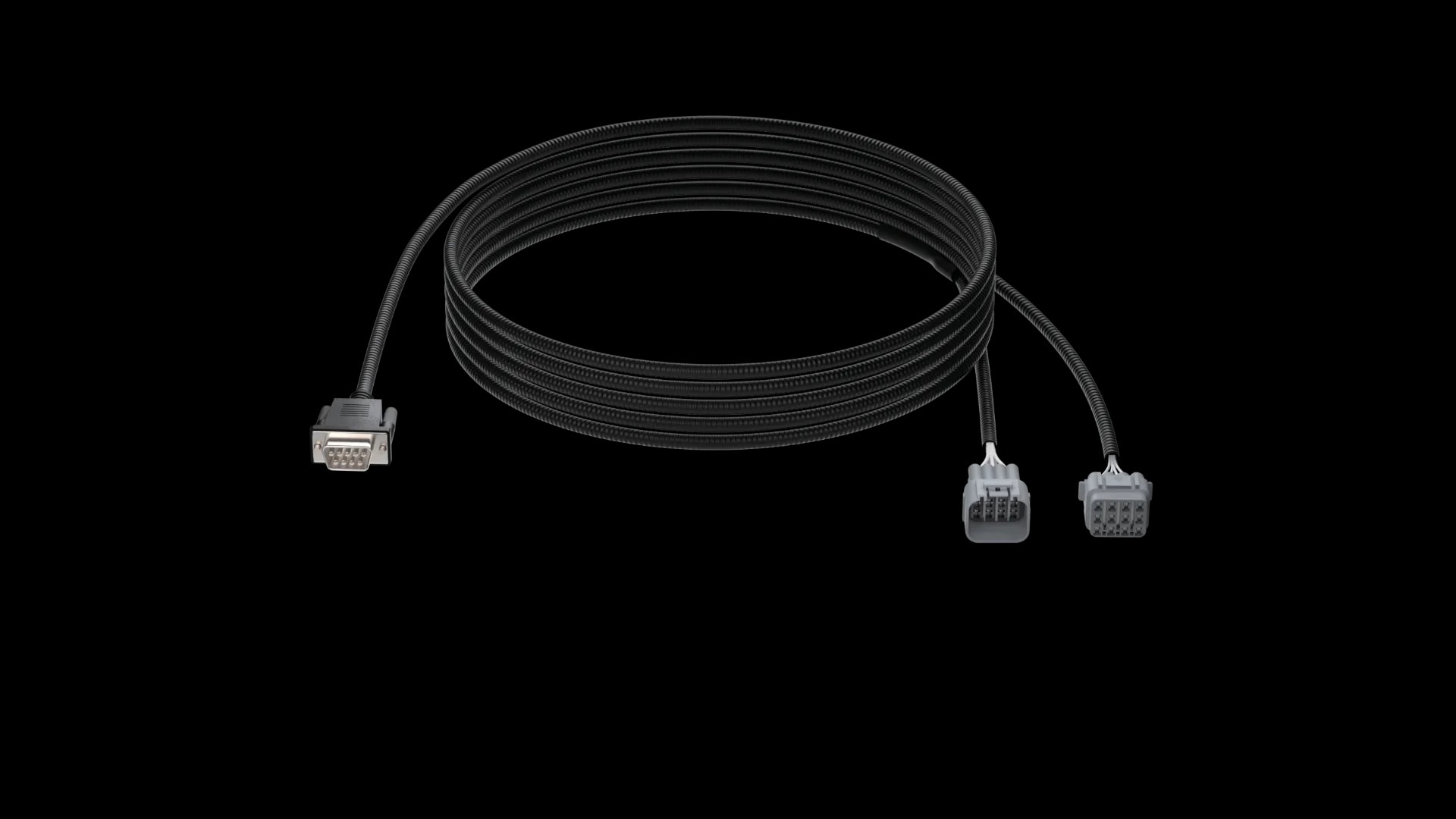

FJD NMEA 0183 Output Cable
Streams precise GNSS speed and position to any NMEA 0183 implement.
- NMEA message types
- 7
- max baud rate (bps)
- 115,200
- max output frequency
- 10Hz
- slope-compensated position
- IMU
FJ Dynamics
Gallery, options, and pricing
Talk to a real operator: 1300 916 075
In depth
Engineered for the long day

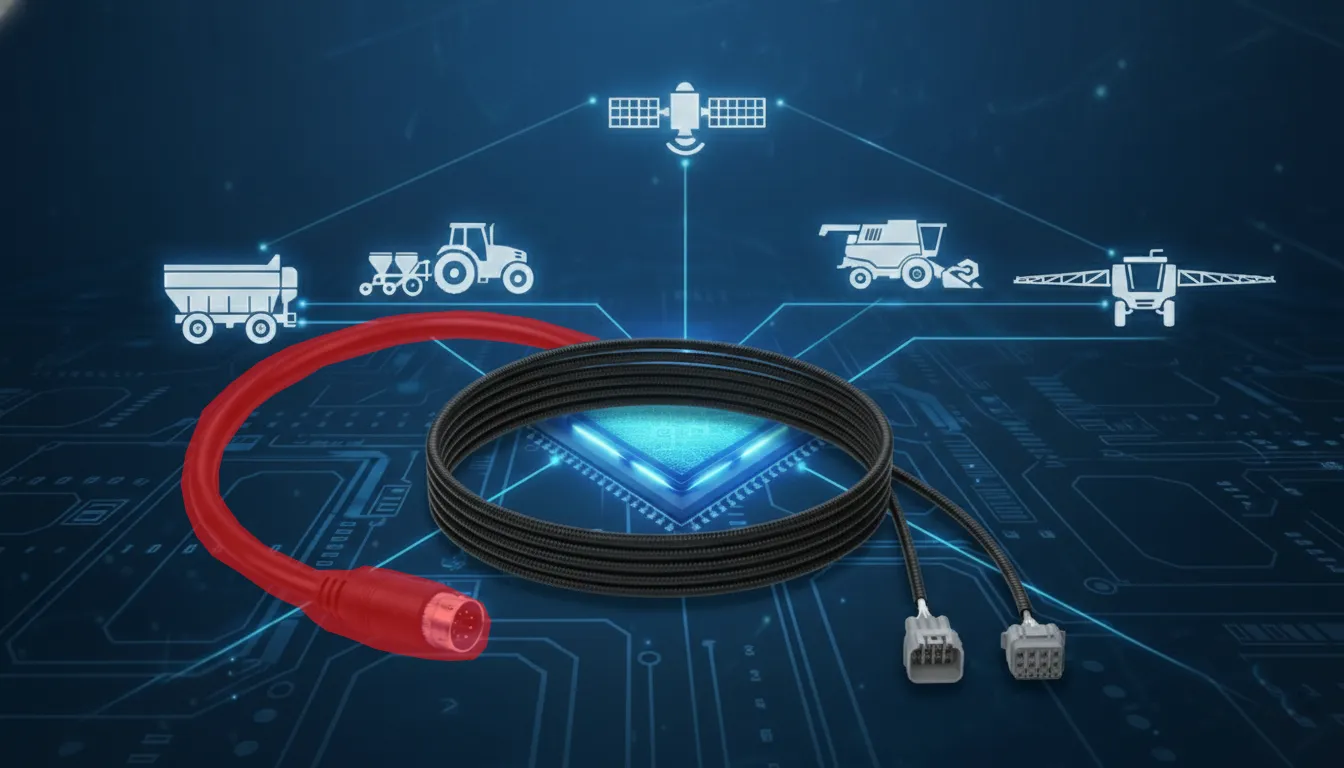

Real-time GNSS data sync between tractor and implement. The FJD NMEA 0183 Output Cable transmits GNSS data efficiently from your autosteering system to implements and precision equipment, delivering precise speed and position information over the industry-standard NMEA 0183 protocol.

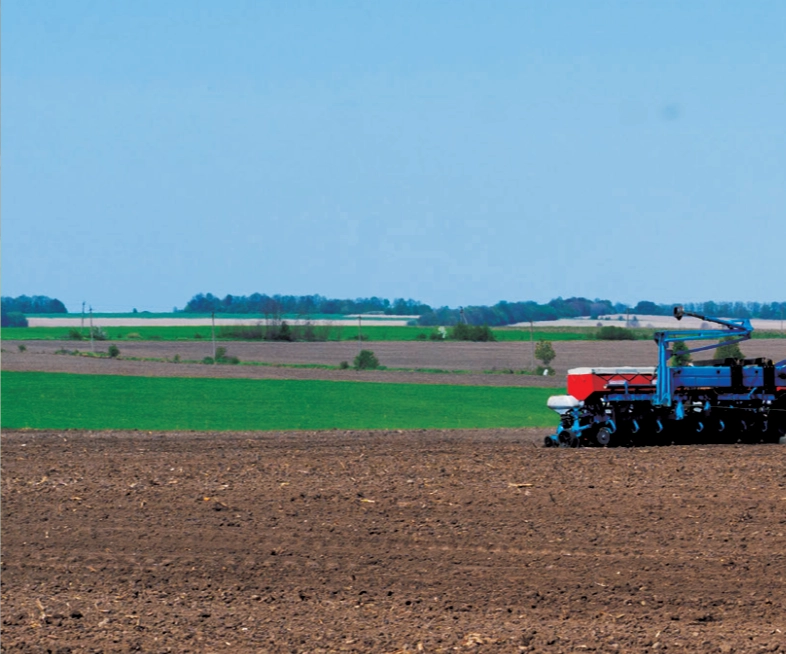

Comprehensive data compatibility

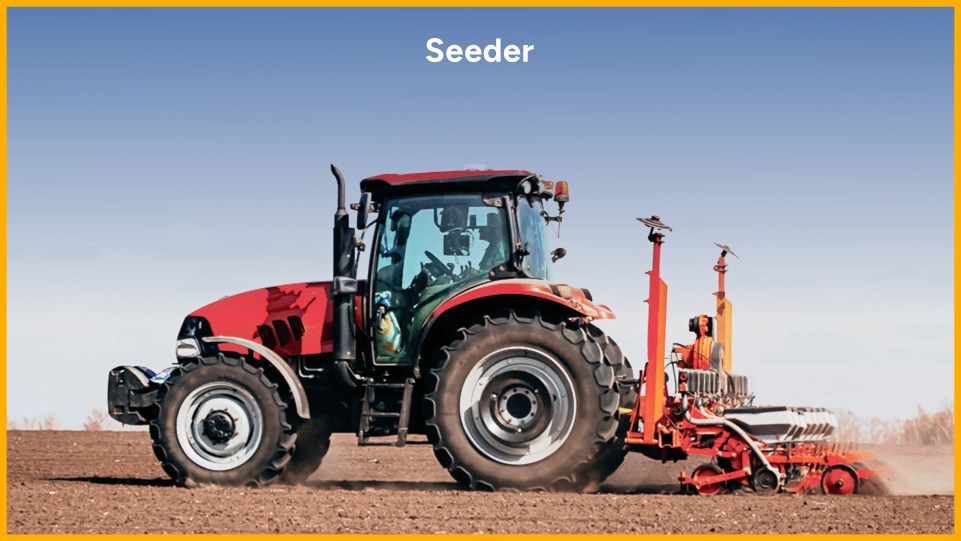

GGA, VTG, GST, HDT, RMC, GSA, and ZDA message types cover seamless integration with a wide range of agricultural machinery, from seeders to rate controllers.
Wide baud rate, adjustable frequency
Baud rates from 2,400 to 115,200 bps and output frequencies from 1/60 Hz to 10 Hz match virtually any device's communication spec.
Slope compensation, stay on track
Selectable implement position output uses the vehicle's measurement parameters and IMU attitude data to calculate the implement's exact position on sloped ground, keeping working paths precise on uneven terrain.
Specifications
| Message types | GGA, VTG, GST, HDT, RMC, GSA, ZDA |
| Baud rate | 2,400-115,200 bps (115,200 default) |
| Output frequency | 1/60 Hz to 10 Hz |
| Setup | Configured in the FJD console under Menu, Applications, NMEA |
