DJI

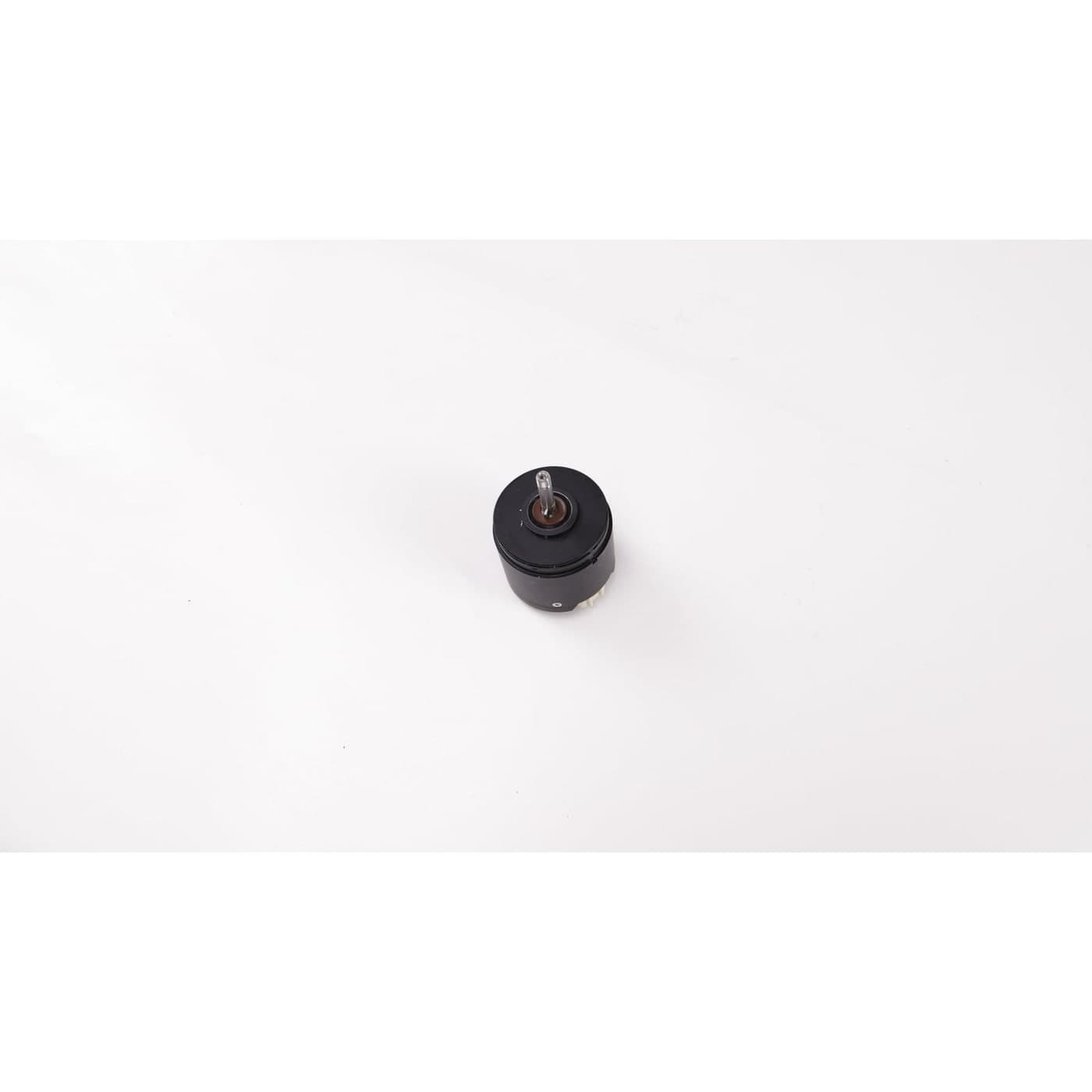

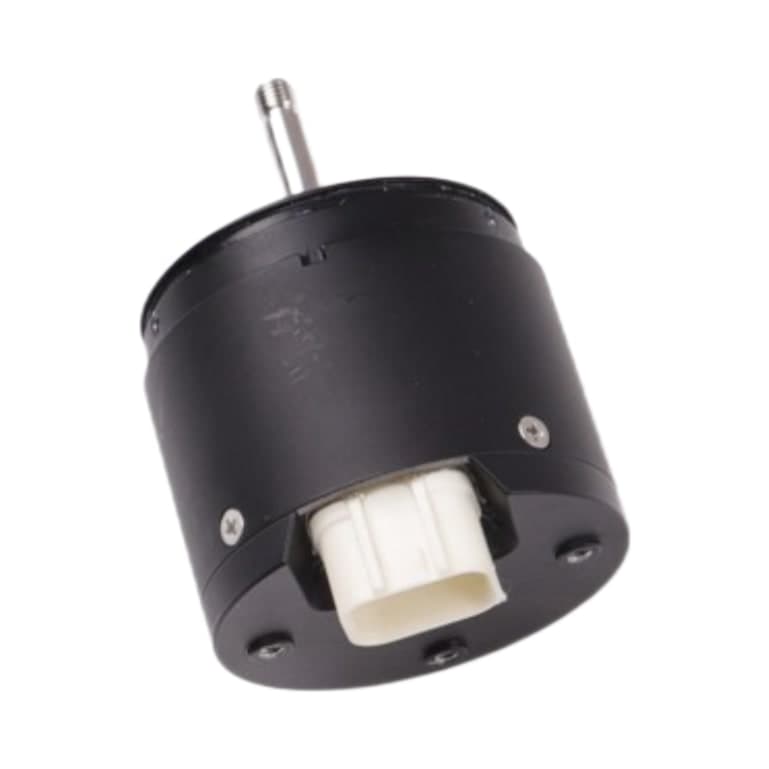

Centrifugal Motor (T50) BC.AG.SS000565
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
On the DJI Agras T50 and T40, this centrifugal motor spins the sprinkler disk at the end of each spray lance, which is what atomises the mix into droplets.
| Part number | BC.AG.SS000565 |
| Fits | DJI Agras T50, T40 |
| Parts diagram | T50 spray lance, callout 1 |
Droplet size depends on disk speed, so a motor that is noisy, runs rough, hesitates at start-up or has stopped altogether affects coverage straight away. Dried chemical, dust and knocks to the lance are common causes. Before replacing it, check that the disk turns freely by hand and the connector is clean and fully seated; if the fault follows the motor when it is swapped to the other lance, the motor is the problem.
When fitting it, inspect the motor sealing ring and centrifugal valve rubber pad from the same diagram, and look over the sprinkler spring bracket if the lance took a hit.
