DJI

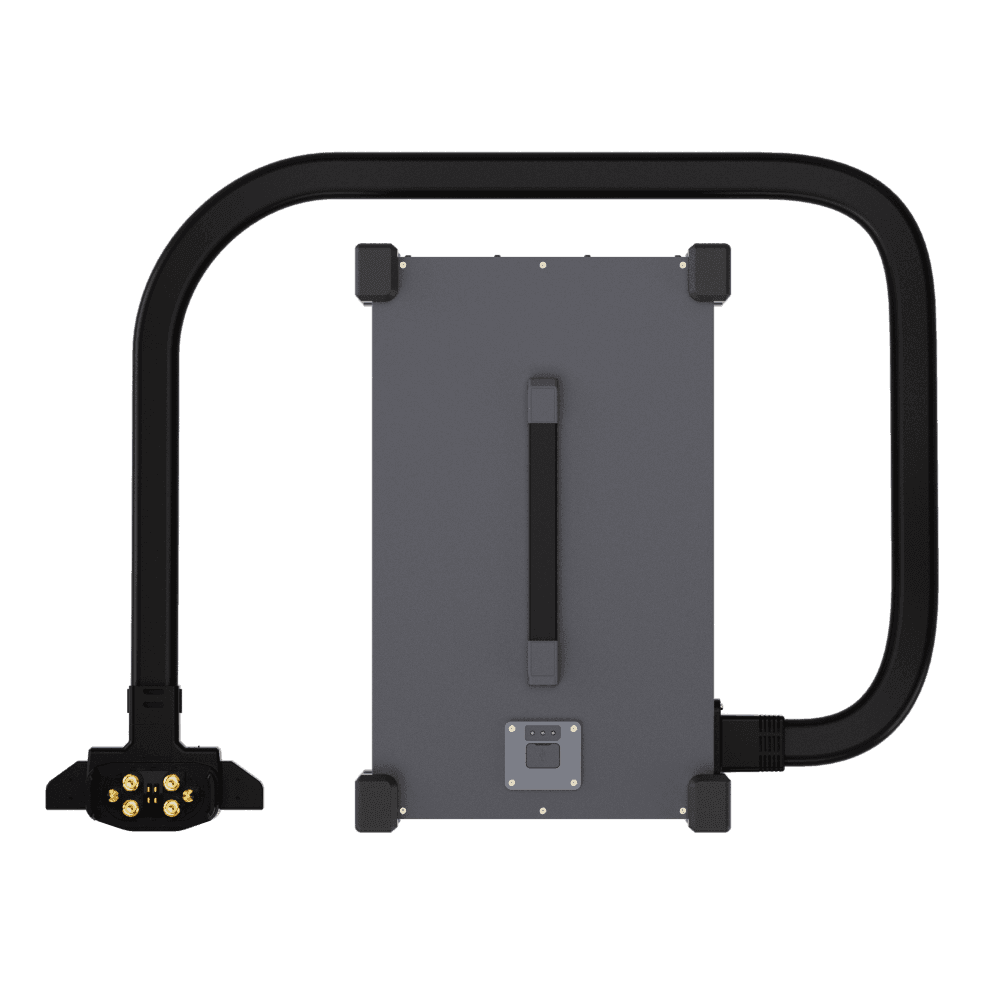

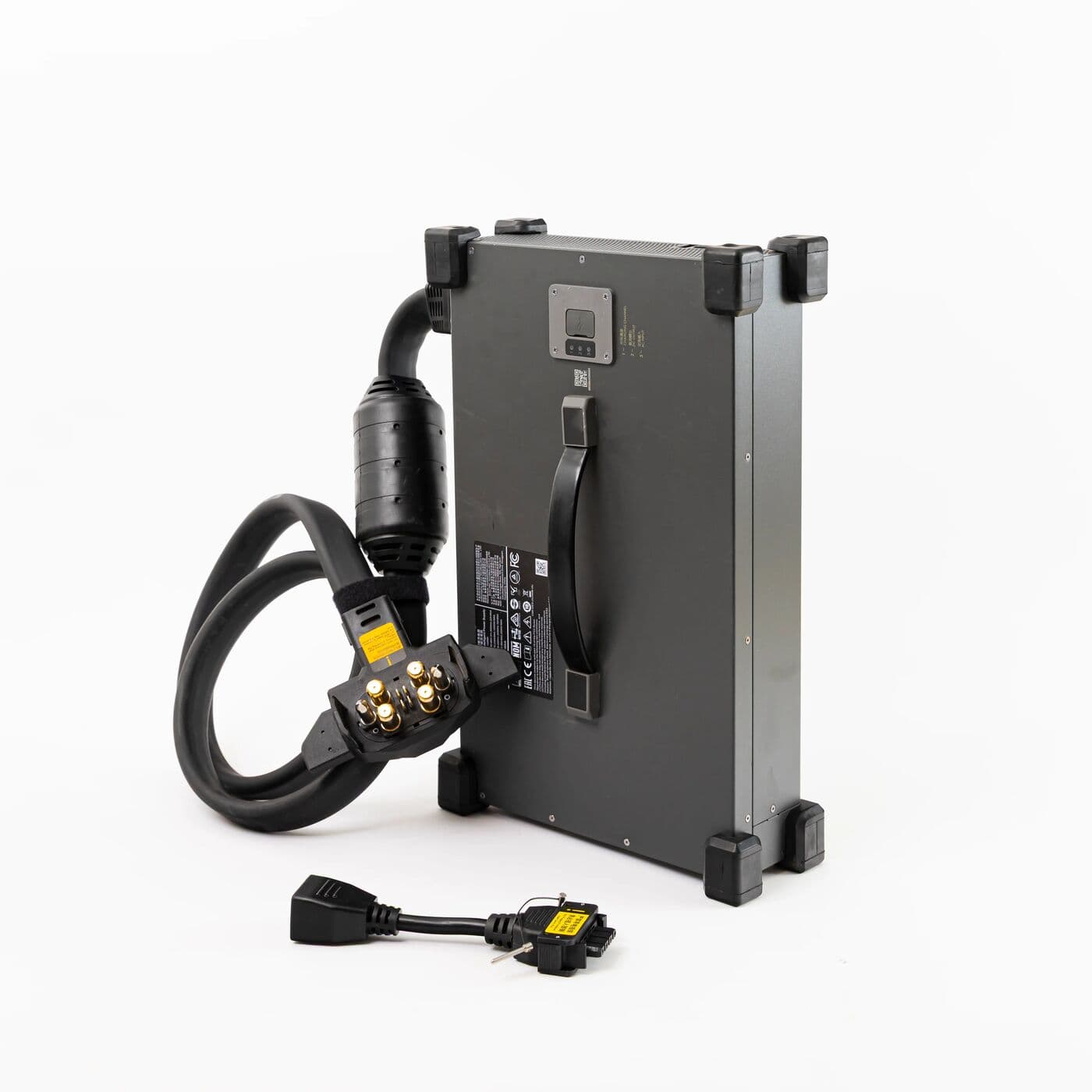

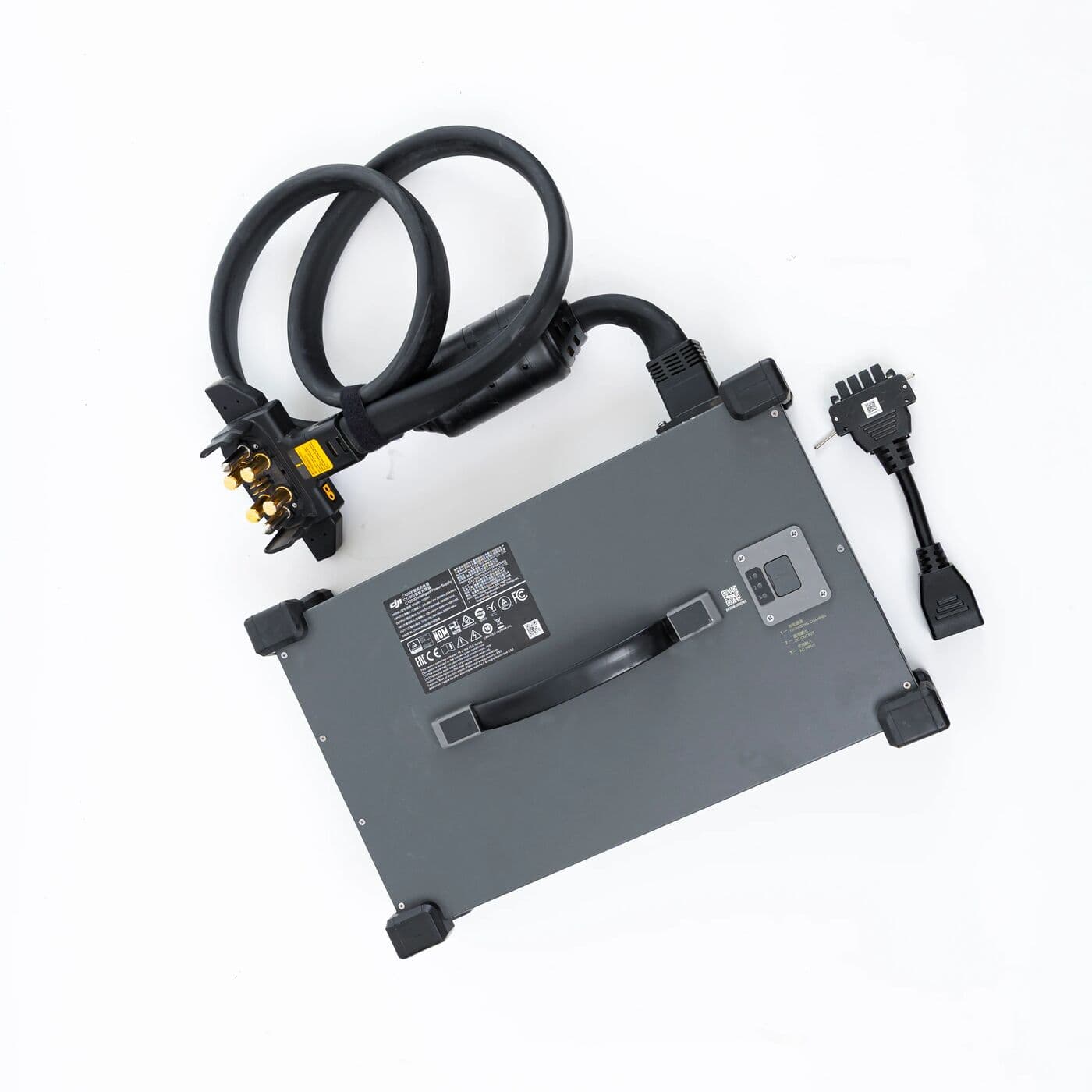

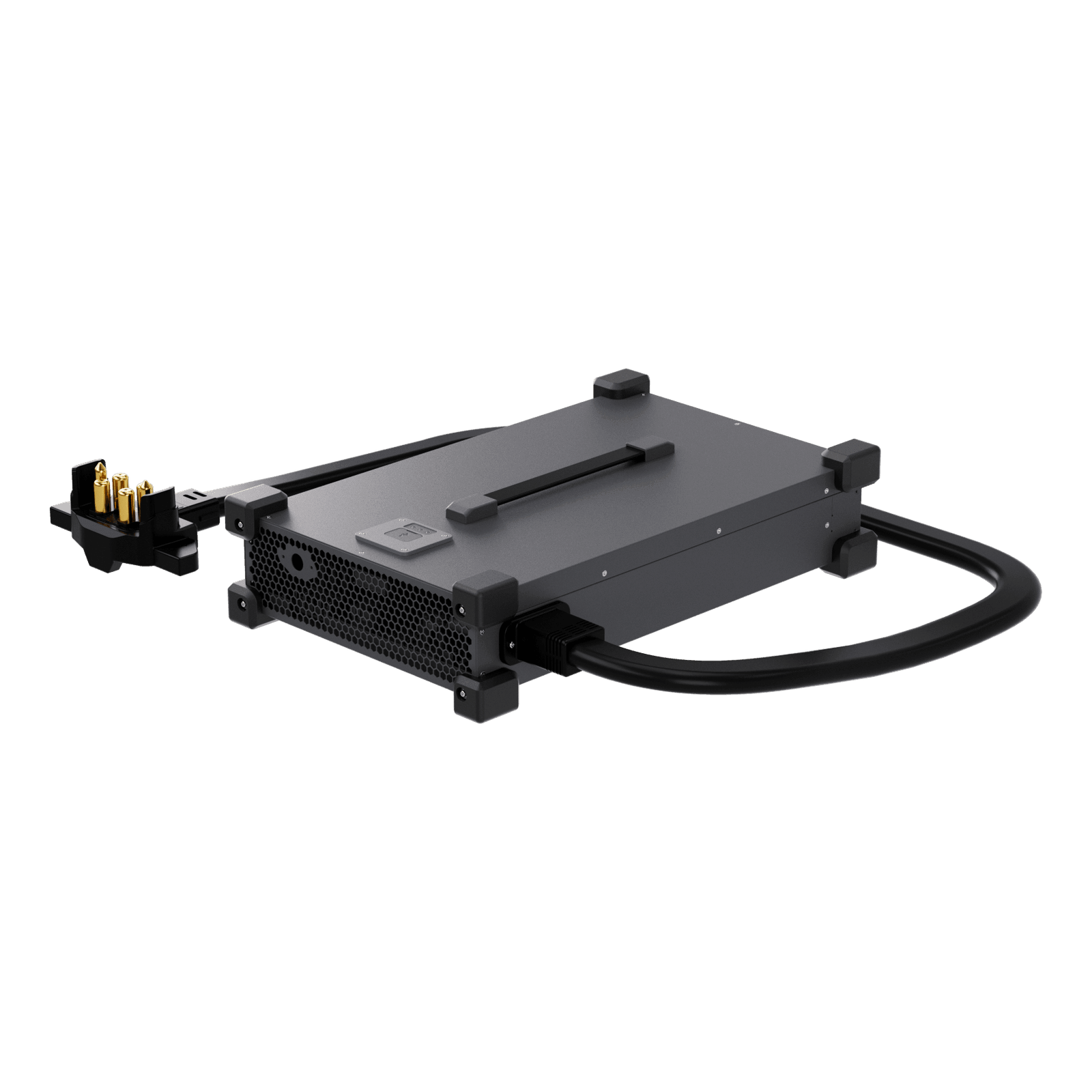

C12000 Intelligent Power Supply Charger (T100/T70P/FC100)
Shipping: Oversize Parcel, $67.50 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The C12000 Intelligent Power Supply is the high-output charger for DJI Agras T100 and T70P batteries, and for the DJI FlyCart 100, taking a DB2160 pack from 30% to 95% in 8 to 9 minutes on three-phase power.
| Model | CSX901-12000 |
| Fits | DJI Agras T100, T70P; DJI FlyCart 100 |
| Batteries | DB2160 and DB1580 Intelligent Flight Batteries |
| Charge time, 30% to 95% | DB2160: 8 to 9 minutes; DB1580: 7 to 8 minutes |
| Rated power | 12000 W on three-phase input; 3000 W on single-phase input |
| AC input | Three-phase 175 to 520 V; single-phase 200 to 264 V |
| Output | 62 V, 194 A rated current |
| Operating temperature | 0 to 40 °C |
| Size and weight | 456 × 291 × 107 mm, 13.13 kg |
Those charge times depend on a full three-phase supply. Plugged into single-phase, the unit still charges, but at a quarter of its rated output, so a pack takes far longer to come back. Away from mains power DJI calls for a three-phase generator rated at 15000 W or more. The EXEQ diesel units in our generator range have three-phase outlets and start at 25 kVA, sized for a shed or depot charging set-up.

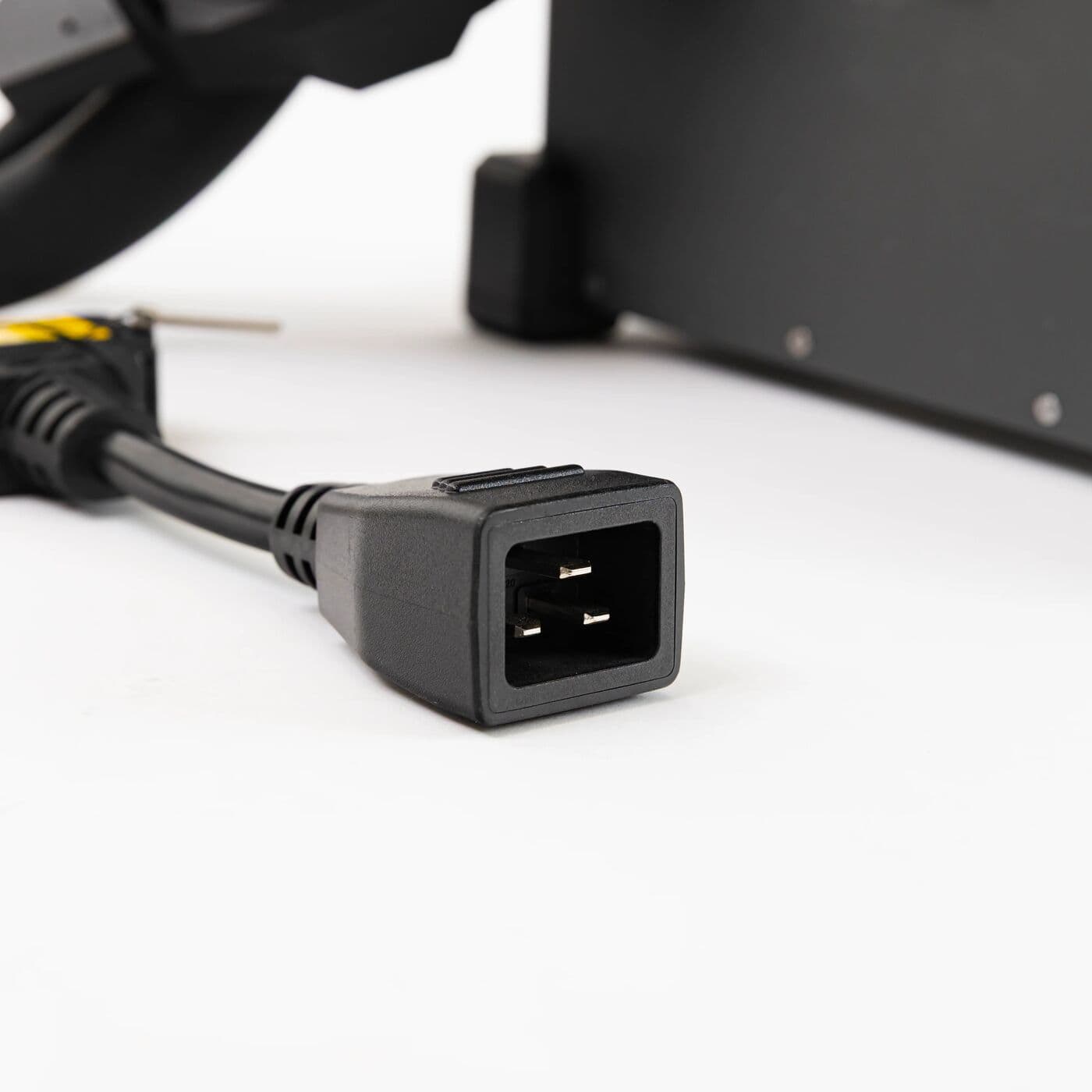

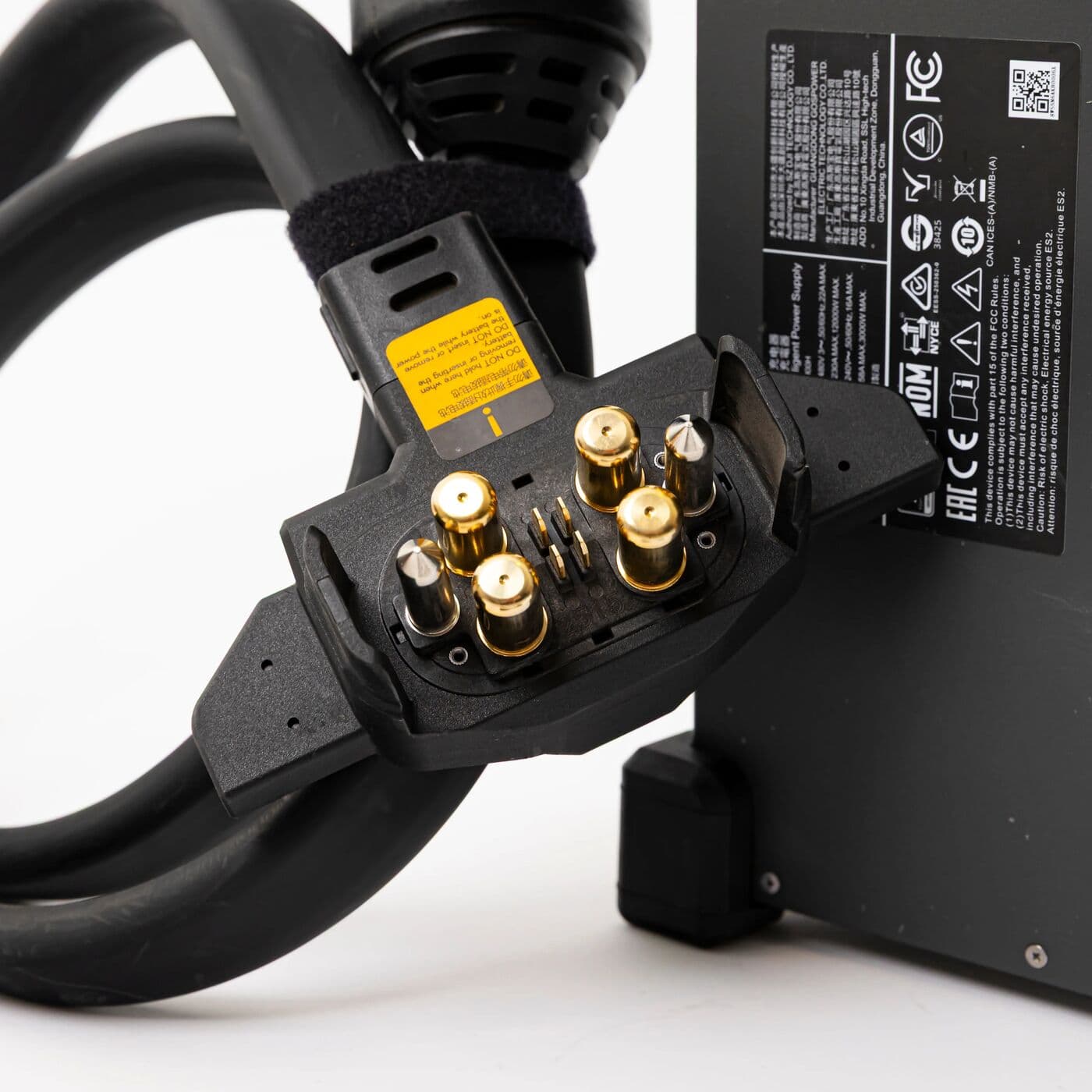

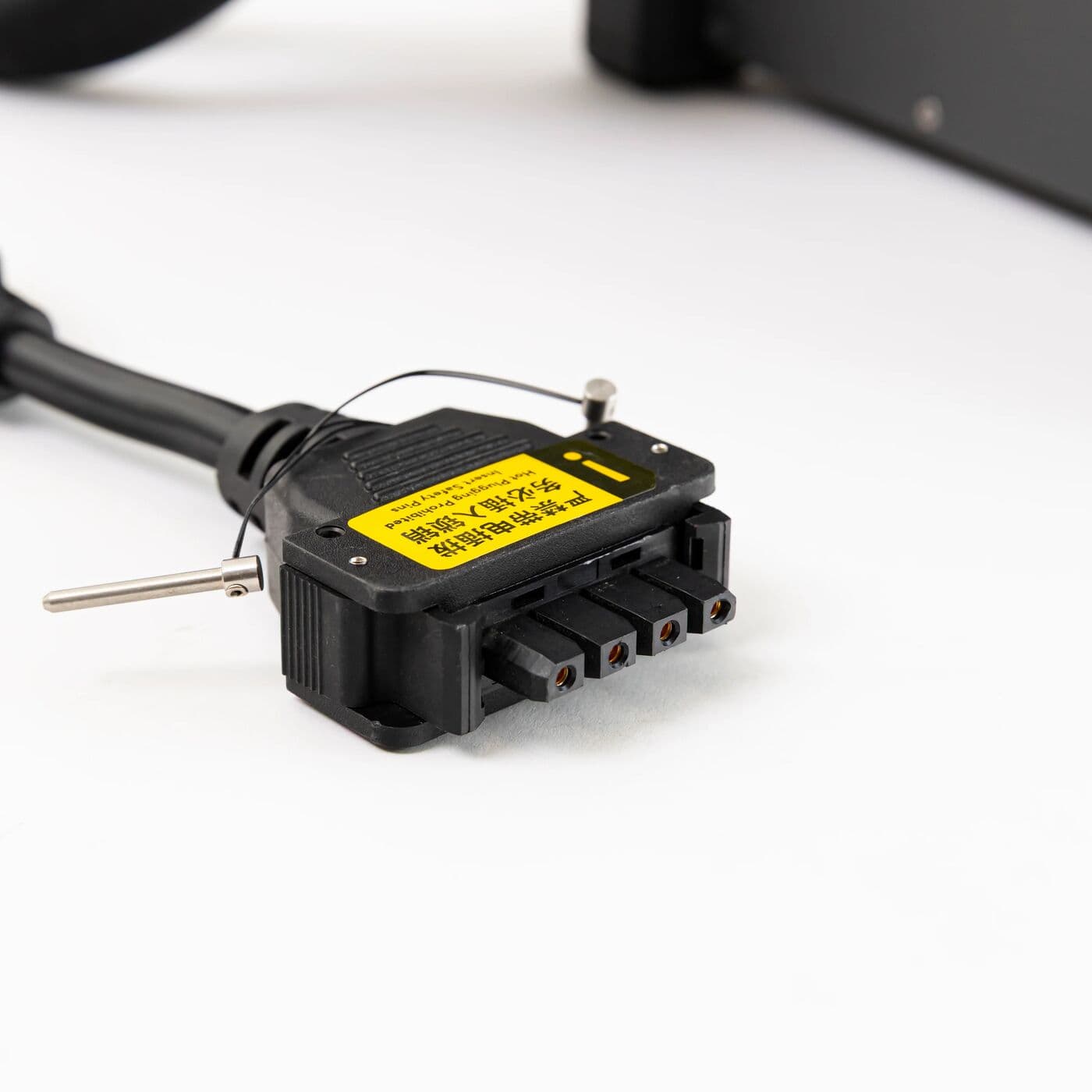

Look after the leads, because they carry the load. At the start of each day check the input and output cables for cuts, crushed insulation or heat marks near the plugs, and look for bent or discoloured pins on the battery connector. Set the charger up in shade and out of the weather, since DJI rates it for 0 to 40 °C.
